11.8In Stand Type Hot Cementing Machine Hot Melt Glue Coating Shoes Leather 220V

Description

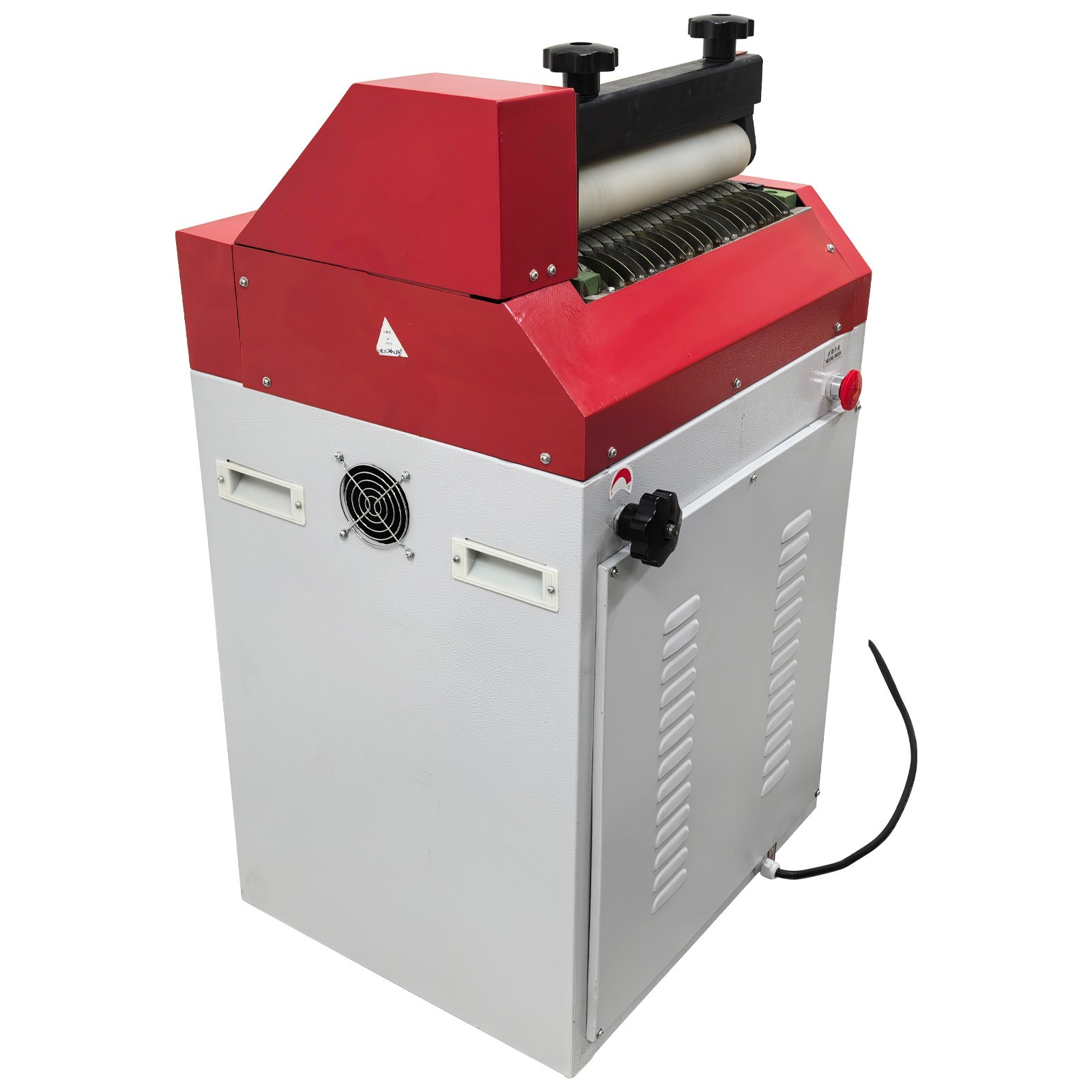

11.8IN Stand Type Hot Cementing Machine 220V 3.3KW 11.8IN Stand Type Hot Cementing Machine 220V Product Overview The machine is suitable for adhesive coating and bonding of flat surfaces of shoes, leather goods, stationery, leather luggage, sports equipment, cardboard boxes and other items with a thickness of 0.5mm or above. The soft roller can move up and down, is adjustable in pressure, and can conduct adhesive coating of uneven, soft or hard materials or materials with low front sides and high rear sides. The temperature of the adhesive tank can be adjusted according to the characteristics of the hot melt adhesive, and can effectively prevent carbonization of the hot melt adhesive. The machine adopts speed regulation control, and the adhesive coating speed can be adjusted as needed. Product Parameters Power Supply 220V Electric Heating Power 3.3KW Motor Power 180W Adhesive Coating Width 11.8in/30cm Product dimensions 19.88x16.93x36.22in/50.5x43x92cm Net weight 139LB/63KG Precaution 1. Use the 220V power supply. There is no plug on the power cord. Please let a professional electrician conduct wiring operation. 2. The effective grounding wire must be connected to avoid the risk of electric shock. 3. After turning on the machine, check whether the machine is abnormal, preheat the machine for 20 minutes, then start the motor and adjust the motor speed. 4. The machine has independent temperature control over the roller and the glue tank. It is generally recommended to control the temperature of the glue tank (within the range of 150-170℃) and the roller (within the range of 100-120℃), and adjust the temperature according to the specific situation. 5. When the machine is not working, you should adjust the soft roller to the highest position and then turn off the motor and power supply. 6. When the machine is cleaned and maintained, kerosene or white mineral oil should be used. 7. Be sure to pay attention to safety when using the machine, and please immediately press the emergency stop switch in case of danger. Product Features 1 The hot melt adhesive gluing machine has strong adhesion and high bonding strength, and can quickly bond the material after gluing. 2 This machine adopts an enlarged soft rubber roller for more uniform and sufficient gluing, with a wider range of applications. The soft roller can move up and down and adjust the pressure, and can be used for gluing materials that are uneven, soft, hard, and uneven in front and back. 3 Fast heating, high sol efficiency, and can quickly enter the working state. 4 Equipped with a digital temperature controller, it can accurately control the temperature of the rubber roller and adapt to different types of hot melt adhesives. 5 The speed can be adjusted by turning the knob to adjust the speed of the rubber roller, which can be flexibly adjusted according to the material and process. 6 Control Panel The control panel is compact in structure and convenient to operate, integrates the functions of motor speed regulation, rubber roller temperature display, the glue tank temperature regulation and emergency stop, improves the control precision and efficiency and enhances the safety. 7 Rubber Roller The rubber roller is designed for achieving uniform gluing of various materials in different thicknesses and hardness. The black knobs are used for adjusting the gluing space according to the material to be glued, and the adaptability and the gluing effect can be well improved. 8 Adjusting Knob The adjusting knob is used for adjusting the gluing thickness, ensuring the appropriate glue can be applied to the material and improving the gluing uniformity and consistency. 9 Glue Tank The glue tank can hold a large amount of hot melt glue, effectively reduces the frequent addition of glue during operation and greatly enhances the production efficiency. Operation Method 1. Place the machine on the flat ground, and ensure there is no shaking. 2. Connect the power supply, turn on the power switch, set the temperature of the adhesive tank (generally at 150-170°C) and the temperature of the large shaft (knurled shaft) (generally at 100-120°C), and adjust other settings as needed. 3. Open the cover plate of the adhesive tank and put the hot melt adhesive into it. 4. When the temperature of the adhesive tank reaches 120°C, press the motor start switch to enable the motor to rotate, and simultaneously reduce the temperature of the large shaft to be within the range of 60°C and 100°C. 5. Adjust the thickness of the adhesive according to the materials and requirements. Rotate the adhesive adjusting handwheel clockwise to thicken the adhesive, and rotate the adhesive adjusting handwheel counterclockwise to thin the adhesive. 6. Adjust the gap between the soft roller and the large shaft (knurled shaft) according to the thickness of the material to be glued. Generally, it is appropriate for the material to automatically pass through the gap when the material is placed on the large shaft (knurled shaft). 7. After everything is adjusted to be normal, mass production can be conducted. 8. In case of emergency, press the inching switch, and the motor will automatically rotate reversely, and the material can automatically exit. Product Display Item Included (120127): 1 x Stand Type Hot Cementing Machine 220V Shipping & Handling ▲ Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us. ▲ 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Collected by ebay. Return / Refund Returns & Exchanges ▲ All returns should be made within 30 days of delivery date. Items must be in unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. ▲ Items returned under the buyer’s remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15-30% restocking fee of the items purchase price will be charged. Defective & Damaged Products ▲ If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. On Feb 26, 2026 at 22:22:50 PST, seller added the following information:
