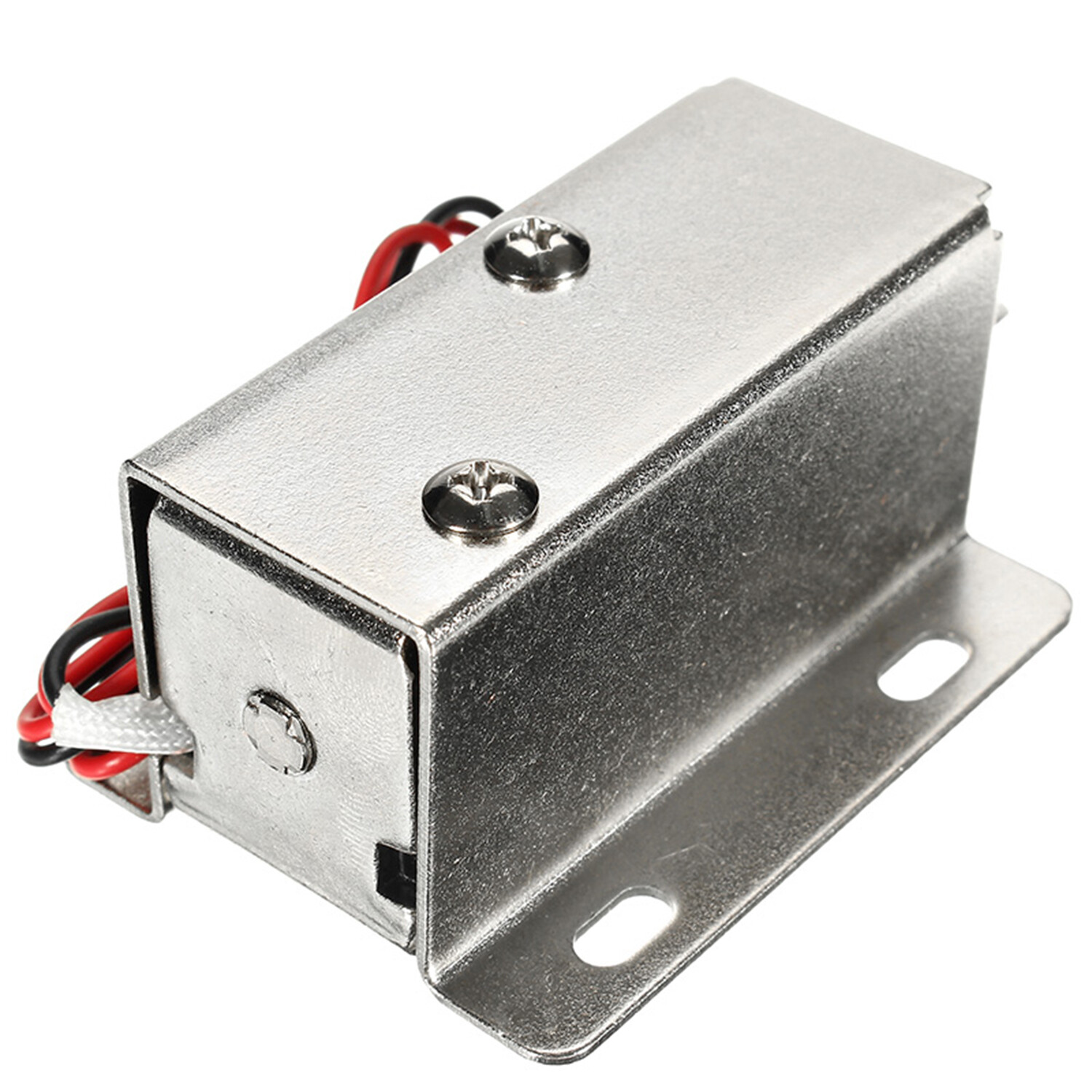

12V DC Electric Solenoid Lock for Cabinets Drawers Access Control
$ 9.97
Description

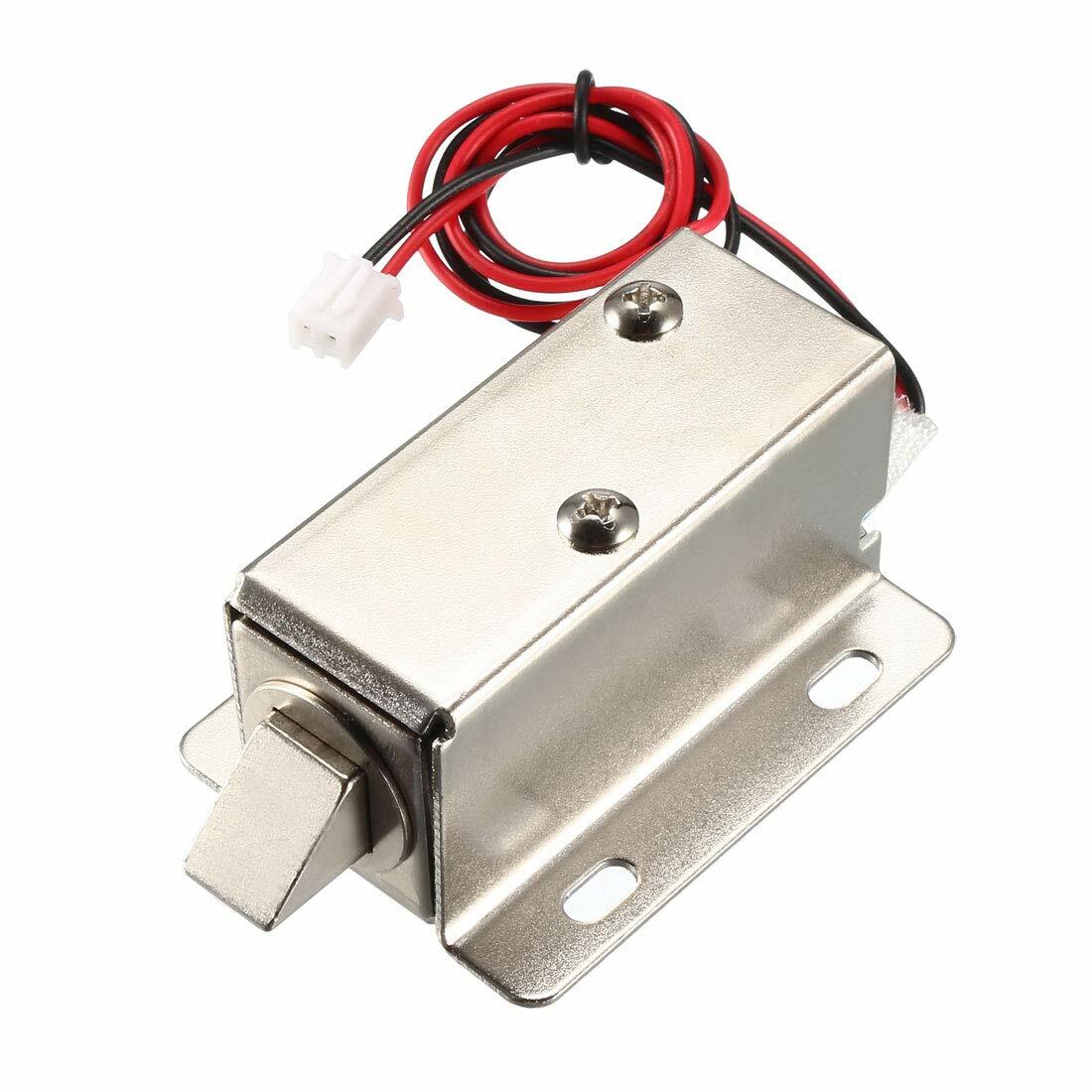

UG LAND INDIA Specification Voltage: DC 12V Current: 1.1A Energized Forms: Intermittent Magnetic Force: 0.3kg Unlocking Time: 1s Continuously Energized: ≤20s Rated Stroke: 10mm Cable Length: 240mm Size: 55×42×29mm , Draws 650mA at 12V, 500 mA at 9V when activated Designed for 1-10 seconds long activation time Description Brand - UG LAND INDIA ELECTRIC 12V SOLENOID LOCK 12V Solenoid lock are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull from one end. This solenoid lock in particular is nice and strong, and has a slug with a slanted cut and a good mounting bracket. It’s basically an electronic lock, designed for a basic cabinet or safe or door. Normally the lock is active so you can’t open the door because the solenoid slug is in the way. It does not use any power in this state. When 9-12VDC is applied, the slug pulls in so it doesn’t stick out anymore and the door can be opened. The solenoid lock come with the slanted slug as shown above, but you can open it with the two Phillips-head screws and turn it around so its rotated 90, 180 or 270 degrees so that it matches the door you want to use it with. ELECTRIC SECURITY DOOR LOCK 12V DC SOLENOID Suitable for doors, file cabinets, display cabinets, lockers, drawers, etc Energized forms: intermittent Suction Which Tightly Sucks The Iron, Thus Locking The Door Compact Easy To Fit Fancy Door Rated Stroke & Force2mm, 1300kgf, 5mm, 850gf Net Weight : 147g;Package Content : 1 x Door Solenoid Electromagnet Rustproof, durable, safe, convenient to use. Low Volt High Power Rated Voltage DC 12V (DC24V is optional) Power - 7.5 W, Current - 1.1 A High Quality Ultra-Compact Electric Lock. No Rust Heavy Body Material Slim Design, Security, and Stability, Low Power Consumption Color - Silver Tone Applicable For Being Installed In The Escape Door or Fire Door Electronic Controlled System. Note:- If Item comes under custom in buyer's country then buyer will be fully responsible for duty and other charges, Seller will not accept return or refund in this case, Also if any documents required from the authority in destination country then also buyer will be responsible
