12V Universal Underdash Air Conditioner Electric Auto Car A/C Kit Fits Van Truck
$ 270.55
Description

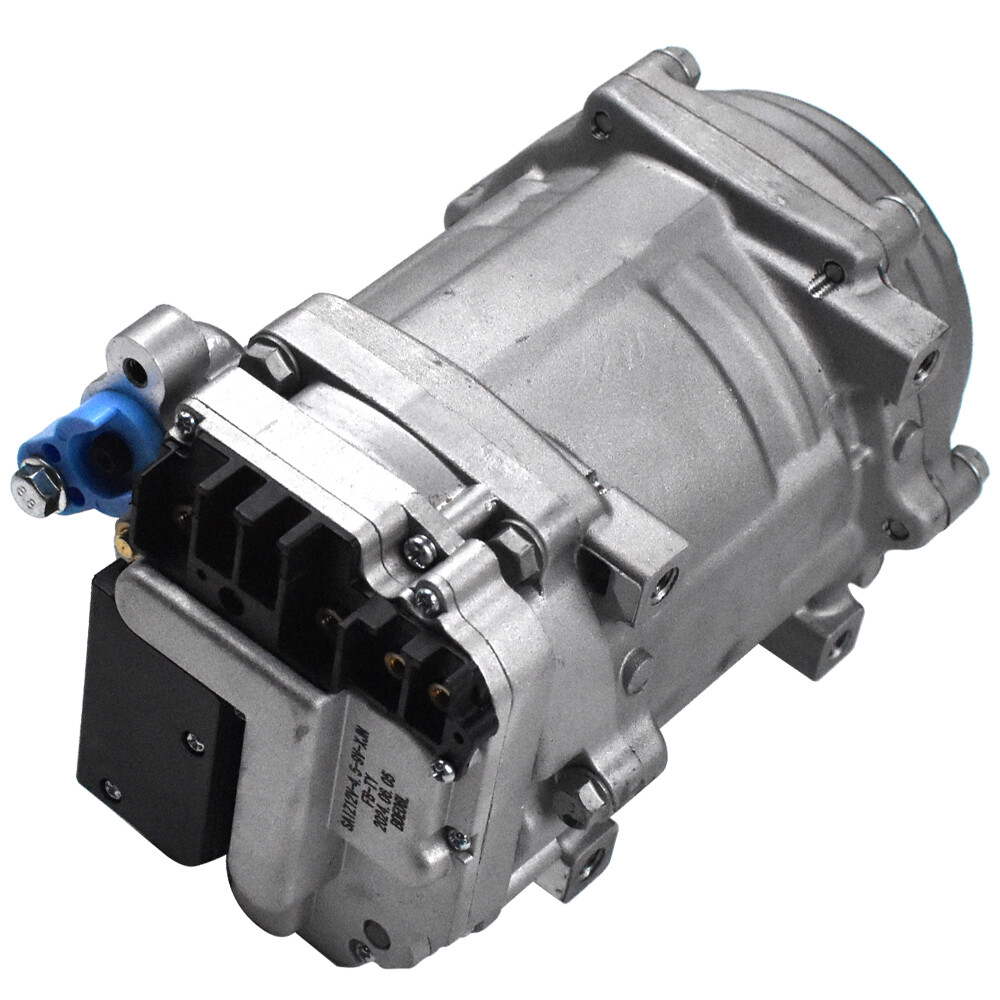

Cool&Heat DC 12V Underdash Electric Air Conditioner Universal Auto Car A/C Kit Professional installation is highly recommended! Installation reference video link: https://1drv.ms/v/c/22450e35e3756ed2/EZXsjtM-QJ1Goq-rZgeKpSkB_y2JXcNo-78RDp5l1Hhzwg?e=NbDfou Specification: Rated Voltage (V): 12V DC Current (A): 33A-66A Rated Power (W): 792W Rated Cooling Capacity (W): 1800-2000W Refrigerant：R134A Refrigerant Oil：POE68 Charging Quantity of Refrigerant ( g)：600g Power Cord Specification (mm2)：3 meters (8mm²) Type of heating and cooling: Cooling & heating Application: Air-condition Refrigerant: R134a Compressor cooling:Inhalation refrigerant cooling Displacement: 12ml/re Refrigerator oil: EMKARATE RL68H/100ml Electric compressor data: Voltage: DC 12V Current: 63A Rated speed: 2100rpm Speed range: 1500rpm - 2100rpm cooling capacity:1000-2000W Rated power: 650w Condensing temperature range: 26.7℃ - 68℃ Evaporating temperature range: -10℃ - 12.5℃ Oil: RL68H/130ml Scroll compressor Specification: Electronic fan connection harness: 2 meters Internal machine connection harness: 3 meters Main power harness: 3 meters Fluorine-resistant hose: 3 points (thin tube) = 3 meters 4 points (thin tube) = 2 meters 5 points (thin tube) = 3 meters Heating principle ： Using the engine coolant to heat the air vent core Application: Truck, Tractor, Digger, Trailer,Excavator, Agricultural vehicles, Pickup,etc. WHAT IS PARKING AIR CONDITIONER ? The parking air conditioner is a kind of in-car air conditioner. It refers to the equipment that uses the on-board battery DC power supply (12V) to make the air conditioner run continuously when parking and waiting and resting, and to adjust and control the temperature, humidity, flow rate and other parameters of the ambient air in the car, so as to fully meet the comfort cooling needs of the truck driver. Normally drivers leaving the engine running for hours to use the air conditioner during parking or rest time at night, it is bad for the environment and tons of fuel wasted, it also wears down the engine faster. Parking air conditioner works with truck battery power without engine on which can save energy and fuel and at same time provide safe and comfortable environment for driver. Fuel,Energy And Money Saving. Digital frequency conversion control, more efficient and more energy saving. Use energy saving mode when you sleep at night, it can run continuously 6 to 8 hours. Use super mode in hottest hours, cooling rapidly and stronger air supply. MULTI INSTALLATION WAYS The 12V electric air conditioning system have multi installation ways to ensure it can be suitable for most vehicles in the market. It includes: 1) rooftop mounted air conditioner for van, truck, commercial vehicles, special vehicle, trailer, earth-moving machine, motorhome, RV (re creational vehicl e) 2) back - wall mounted air condition er for truck, tractor, trailer, heavy duty truck, light truck, truck cab, truck sleeper, sleeper cab. The truck air con diti oner is divided into two types: Rooftop Air Conditioner/ split type model. Very easy to install. The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside. Package List: 1、Evaporator Assembly 2、Condenser 3、Cooling Fan 4、Main Power Cord 5、Cooling Fan Power Cord 6、Condenser Assembly Bracket 7、Compressor Assembly 8、Compressor Bracket 9、Refrigerant Pipeline 10、Blower Power Cord 11、Drainage Pipe 12、Installation Bracket For Blower Assembly Note: 1.The total leakage of the compressor is not greater than 5g/year. 2.The noise is not greater than 74dB in rated speed. 3.Insulation resistance must be greater than 20MΩ . 4.The tolerance of None remarked dimensions may be accordance with GB1804-m. 5. The performance of all unmentioned are in accordance with GB/T 22068-2018.
The 1st part came damaged be beyond use due to packaging. Broke parts with holes on the box. The supplier made good on the 2nd part shipped Fit the part on my truck with no issues. Perfect fit and operation. The supplier made good on the replacement part to include excellent communication to me on updates and a fast turnaround to supply me with a replacement. Great value. Feedback would have been excellent if the 1st part sent would have been packaged liked the 2nd one to protect it.
Excellent value! Exactly as described! Communication with the seller was amazing to resolve a shipping issue out of their control. They were quick to respond to my concerns and on top of getting the issue resolved. Great value. Perfect condition! Exactly as described!! The customer service is what would make me repeat customer! Even on the weekend, they were quick to answer messages and were always pleasant.
Good deal, item was as advertised and at a great price, shipping was fast and the mounts were well packaged, 5 star recommended seller, would buy from again, thank you.
