15012 Pin and Bushing Adapter Tool – Service Kit for Removing Pins & Bushings
$ 353.76
Description

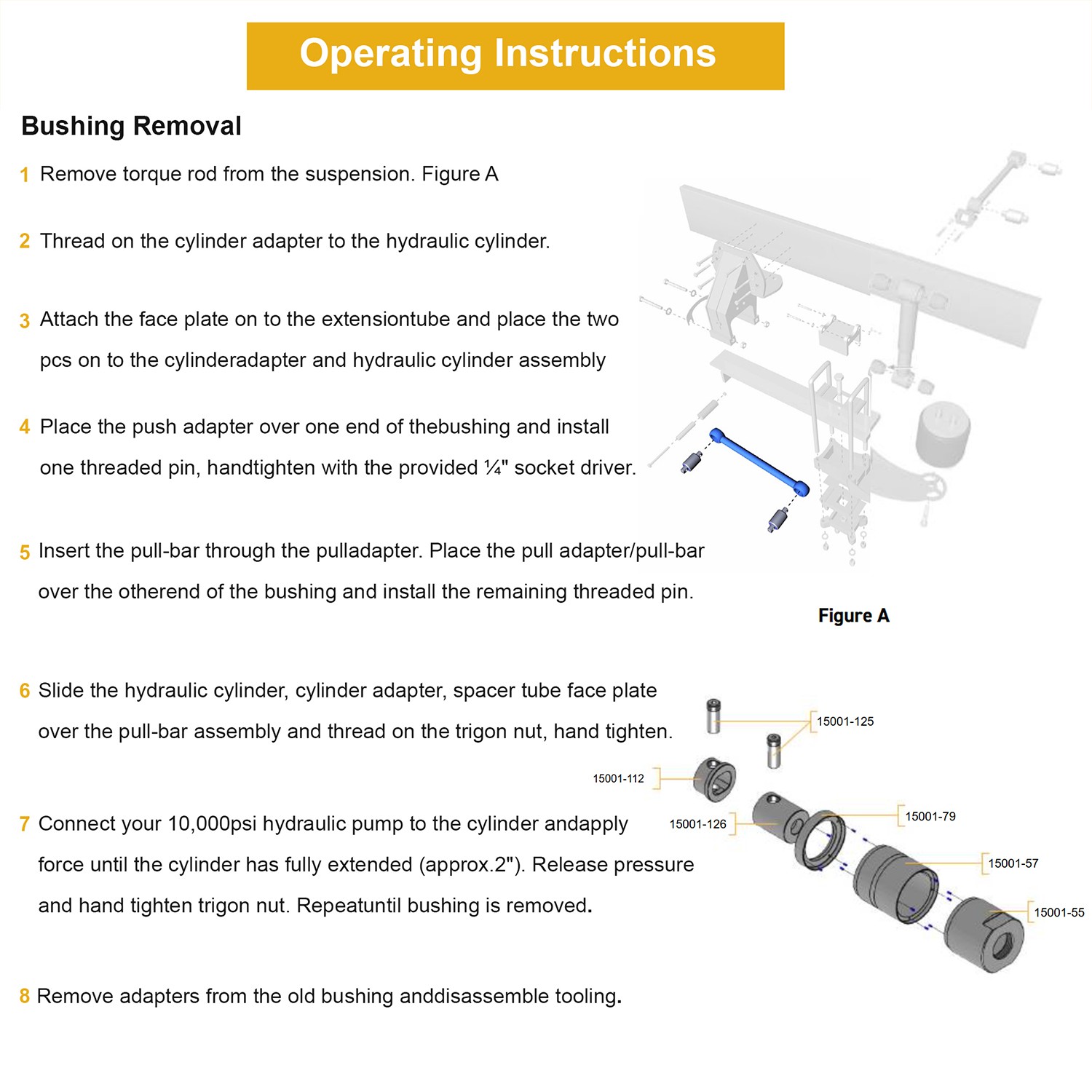

15012 Pin and Bushing Adapter Tool – Service Kit for Removing Pins & Bushings Item specifics Condition: New Brand: Unbranded OE/OEM Part Number: 15012 Type: Pin & Bushing Adapter Service Kit Material: Metal Color: Black Application: Work for Heavy Duty Truck & Equipment Made from high-grade steel for strength and long-lasting performance under demanding conditions. Black oxide coating provides excellent corrosion resistance, keeping the tool in top condition over time. Compatible Bushings：R303868, TRB6822, TRB6822UB, 098065, 227723, 321265, 321265U, D424, D424S, DT1480, E3868, C889, 13528, 49210, 66649005, 49210000L, 64400005L, 66649005l, 1693063C1, 12L594, 0227723, TRB68220, 15012, TRB6822UB, 23986, RB187, and 13513 Operating Instructions Bushing Removal: 1.Remove torque rod from the suspension. (Figure 1) 2.Thread on the 15001-55 cylinder adapter to the 17202 hydraulic cylinder. 3.Attach the 15001-79 face plate on to the 15001-57 extension tube and place the two pcs on to the 15001-55 cylinder adapter and 17202 hydraulic cylinder assembly. 4.Place the 15001-112 push adapter over one end of the bushing and install one，15001-125 threaded pin, hand tighten with the provided ¼" socket driver. 5.Insert the 15001-3 pull-bar through the 15001-126 pull adapter. Place the pull adapter/pull-bar over the other end of the bushing and install the remaining 15001-125 threaded pin. 6. Slide the hydraulic cylinder, cylinder adapter, spacer tube, face plate over the pullbar assembly and thread on the 15001-7 trigon nut, hand tighten. 7.Connect your 10,000psi hydraulic pump to the cylinder and apply force until the cylinder has fully extended (approx. 2"). Release pressure and hand tighten trigon nut. Repeat until bushing is removed. 8.Remove adapters from the old bushing and disassemble tooling. Bushing Installation: 1. Thread on the 15001-55 cylinder adapter to the 17202 hydraulic cylinder. 2.Attach the 15001-79 face plate to the 15001-55 cylinder adapter (the 15001-57 extension tube is not used for installation). 3.Place the 15001-112 push adapter on to the new bushing and install one of the 15001-125 threaded pins, tighten by hand with the provided ¼" socket driver. 4.Insert the 15001-3 pull-bar through the 15001-126 pull adapter. Place the pull adapter/pull-bar over the other end of the bushing and install the remaining 15001- 125 threaded pin. 5.Insert the pull-bar and bushing assembly through the eye of the torque rod (threaded end of the pull-bar first) until the bushing is up against the torque rod in the desired orientation. 6. Place the hydraulic cylinder, cylinder adapter, face plate over the pull-bar and thread on the 15001-7 trigon nut, hand tighten. 7. Connect your 10,000psi hydraulic pump to the cylinder and apply force until the cylinder has fully extended. Release pressure and hand tighten trigon nut. Repeat until the bushing is in desired installed depth. 8.Remove adapters from the bushing and disassemble tooling. This Adapter Works on the Following OEM Bushing Numbers: R303868 TRB6822 TRB6822UB 09-8065 227723 321-265 321-265U D424 D424S DT1480 E-3868 C889 13528 49210, 66649-005 49210-000L 64400-005L 66649-005I 1693063C1 12L-5-94 Air Trac 02-27723 TRB68220 Payment Delivery details Terms of sales About us Contact us Payment Paypal Preferred. Delivery details · USPS Standard Shipping. · Order processing: within 1 business day upon payment(excluding holidays and weekends). · Shipped from: US Warehouse Terms of sales · Please read the item description and check the pictures carefully before ordering. · Return or refund is available only if item DOA or there's error in item description causing the item not fitting the need. In such cases, seller pays for all related shipping cost. · Returns are also acceptable if buyer purchased this by mistake and item is still in good condition for reselling. Buyer is responsible for all related shipping cost. · Buyer need to file an application for return within 60 days after receiving the item. Items returned must be still in good condition as they were received. Return notes: 1.Please contact us for return and we will proceed with following instructions. 2.Returning the package with a tracking method, like USPS. The RMA#(Return Merchant Authorization Number=Your ebay ID) must be clearly written on the return package, otherwise the package will be refused. 3.Email us the return tracking number. 4.All returns will be inspected prior to a credit being issued. About us We are specialized in auto parts accessories for many years and we also sell items on ebay for several years. If you have questions about our items and services, please kindly feel free to contact us, we will try our best to satisfy you within 24 business hours. Contact us Please be free to email us by clicking the "Asking a question" link, once there is any pre-sale or after-sale inquiry for our items. We will email back in 24 working hours. If you'd like to put a neutral or negative feedback, or open the ebay or paypal case, please email us so we could try our best to resolve the issue.
I never received the product, but not because of the seller. My post office decided to return all of my family's mail because a new employee said we had mail sitting in our PO box. So I never received it, however, the seller did refund my money with no issues. The seller had fantastic communication with me and understood what had happened. They were very helpful and gave me no hassles at all. Product was delivered within a timely manner. Would definitely buy from this seller again!
This grill is a beautiful very well made, new condition product and it is very fairly priced; It includes all needed parts and was packed very well, shipped instantly, with no charge. I highly recommend this seller and this product: 5 Stars
Seller was great to work with. Great customer service and fast shipping! I entered my order incorrectly and they got it resolved and shipped out the next day. Thank you!!!
Related products
⭐Piston Ring Compressor Professional Piston Install Tool with Wrench and Pliers+
$ 4.38Set 82 Piece 72 Teeth Mechanic Tool Socket Wrench Set with Storage Case 1/4 1/2
$ 41.41Steel Camshaft Engine Timing Tool Fit For Volvo 3.0 3.2 T6 S80 Xc60 Xc70 Xc90

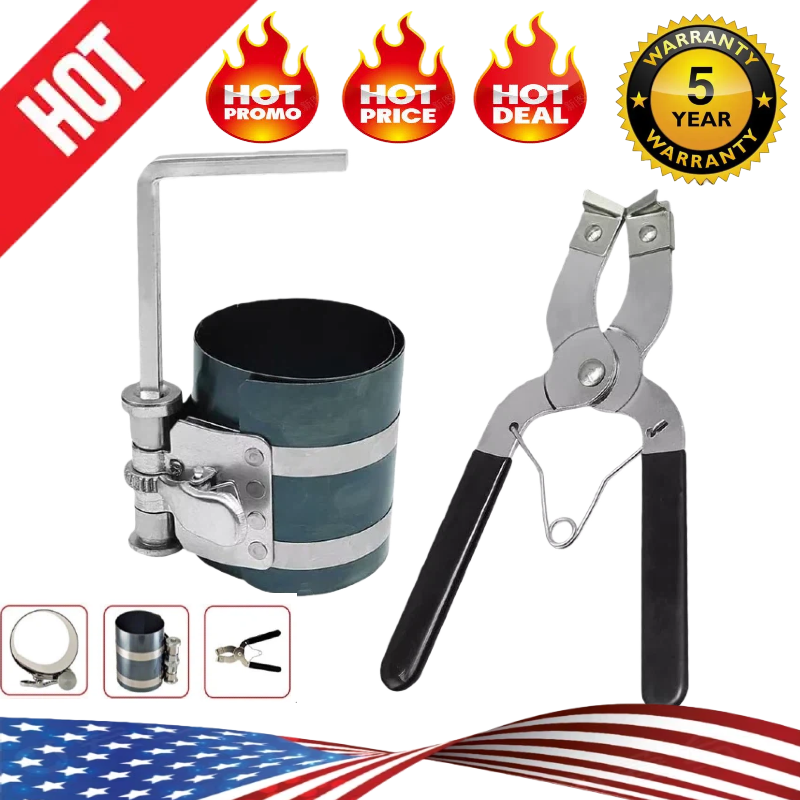

$ 42.642-1/8" to 7" Piston Ring Compressor Professional Piston Install Tool & Wrench ⭐
