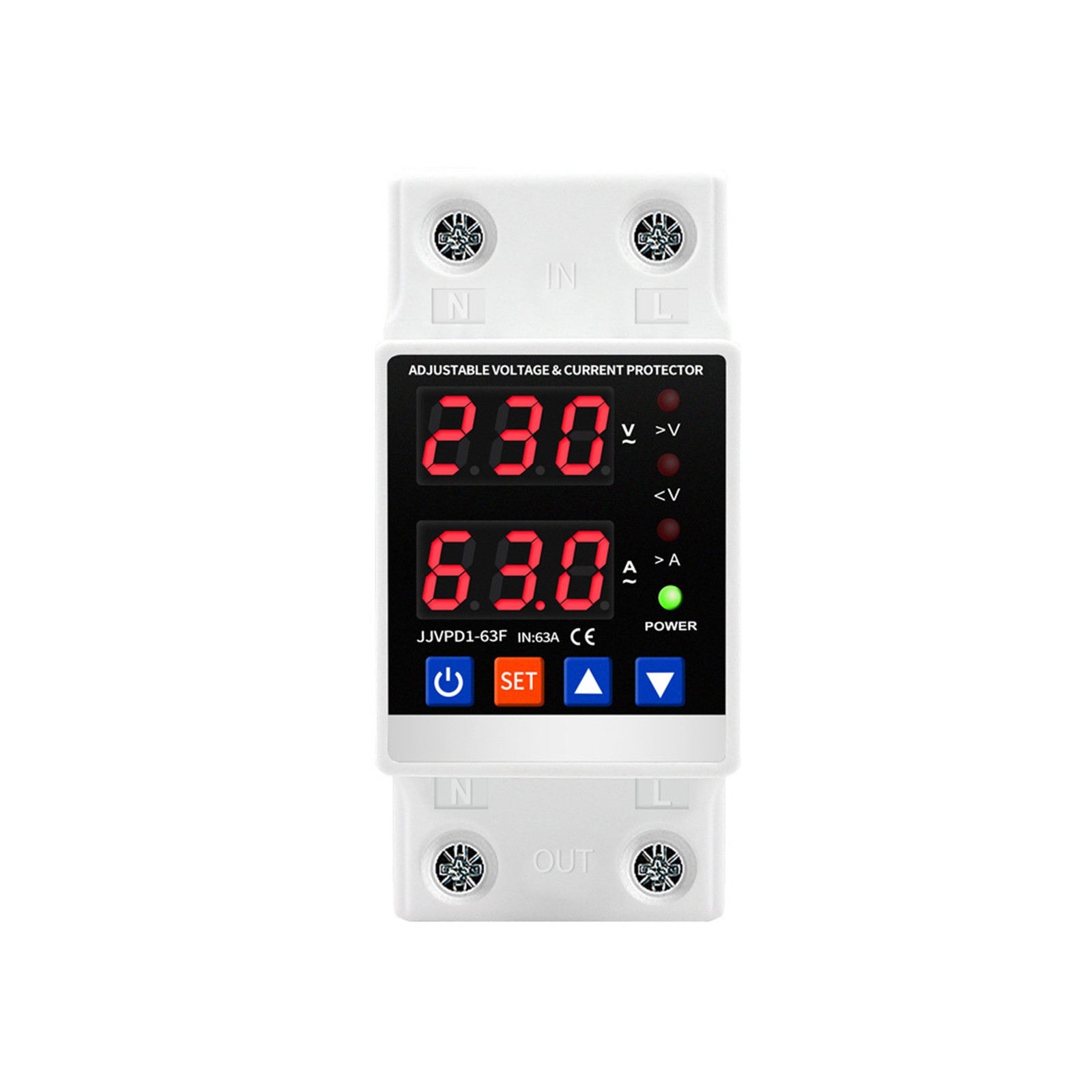

1-Dual Display 40A Din Rail Adjustable Digital Over Under Voltage Relay BVAE
$ 10.87
Description

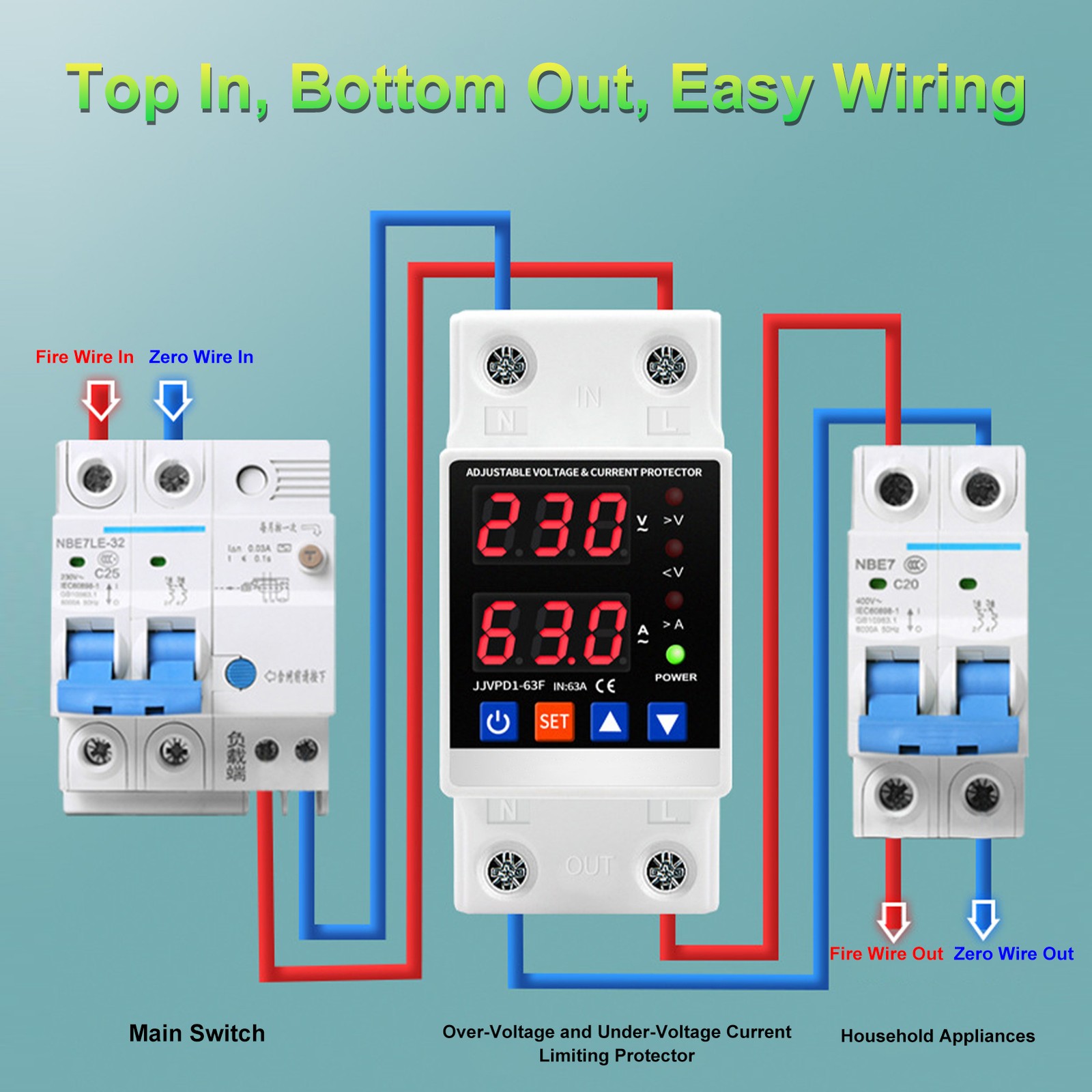

1-Dual Display 40A Din Rail Adjustable Digital Over Under Voltage Relay BVAE. Rated Current: 40A / 63A / 80A (Optional). 63A: 1-63A, default 40A. Wiring Mode: Top in and bottom out. Model: JJVPD1. Self-Power Consumption: ≤2W. Number of Consecutive Overcurrents: 1-20, default off. Feature: 1. Overload Automatic Power-Off: When over-voltage fault, under-voltage fault, over-current fault occurs in the line, this product can instantly cut off the power supply to protect the electrical equipment from being burned, and when the line returns to normal, the protector can automatically connect the line again. 2. Continuous Overcurrent Protection Times: Adjustable 1-20 times, the function is closed by default, such as setting to 2 times, the first overload self-recovery recovery, the second consecutive overload direct power failure. 3. Real-Time Fisplay: Figital tube large screen display circuit status, at a glance more intuitive. 4. Easy Installation: Adopting a rail-mounted design simplifies the installation process, saving time and labor costs. 5. Own Control: According to the dormitory and other places of electricity to set the current size of the corresponding current size, such as dormitory electricity in the 5A can be set to limit the current 5A, more than 5A automatic power-off, the current to restore the 5A or less, and can be automatically restored. 6. Versatile Applications: The protector has a wide range of applications in various electrical devices and systems, ensuring the normal operation and safety of equipment. Specification: Specifications: Rated Current: 40A / 63A / 80A (Optional) Model: JJVPD1 Material: ABS Input Voltage: AC140-300V Power-On Delay Time: 1-500 seconds, default 10 seconds Over-Voltage Protection Value: 230-300V, default 270V Over-Voltage Recovery Value: 225-295V, default 265V Undervoltage Protection Value: 140-210V, default 170V Undervoltage Recovery Value: 145-215V, default 175V Overvoltage Protection Value: 40A: 1-40A, default 20A 63A: 1-63A, default 40A 80A: 1-80A, default 60A Overcurrent Recovery Value: 0.5-39.5A 0.5-62.5A 0.5-79.5A Recovery Delay: 1-500 seconds, default 30 seconds Action Delay: 0.1-30 seconds, default 1 seconds Number of Consecutive Overcurrents: 1-20, default off Self-Power Consumption: ≤2W Electrical and Mechanical Life: ≥100,000 times Wiring Mode: Top in and bottom out Item Size: 86 * 38 * 68mm / 3.38 * 1.49 * 2.67in Package Weight: 200g / 7.05oz Package Size: 13 * 10 * 10cm / 5.12 * 3.93 * 3.93in Package List: Package List: 1 * Voltage Protector 1 * User Manual (English)
