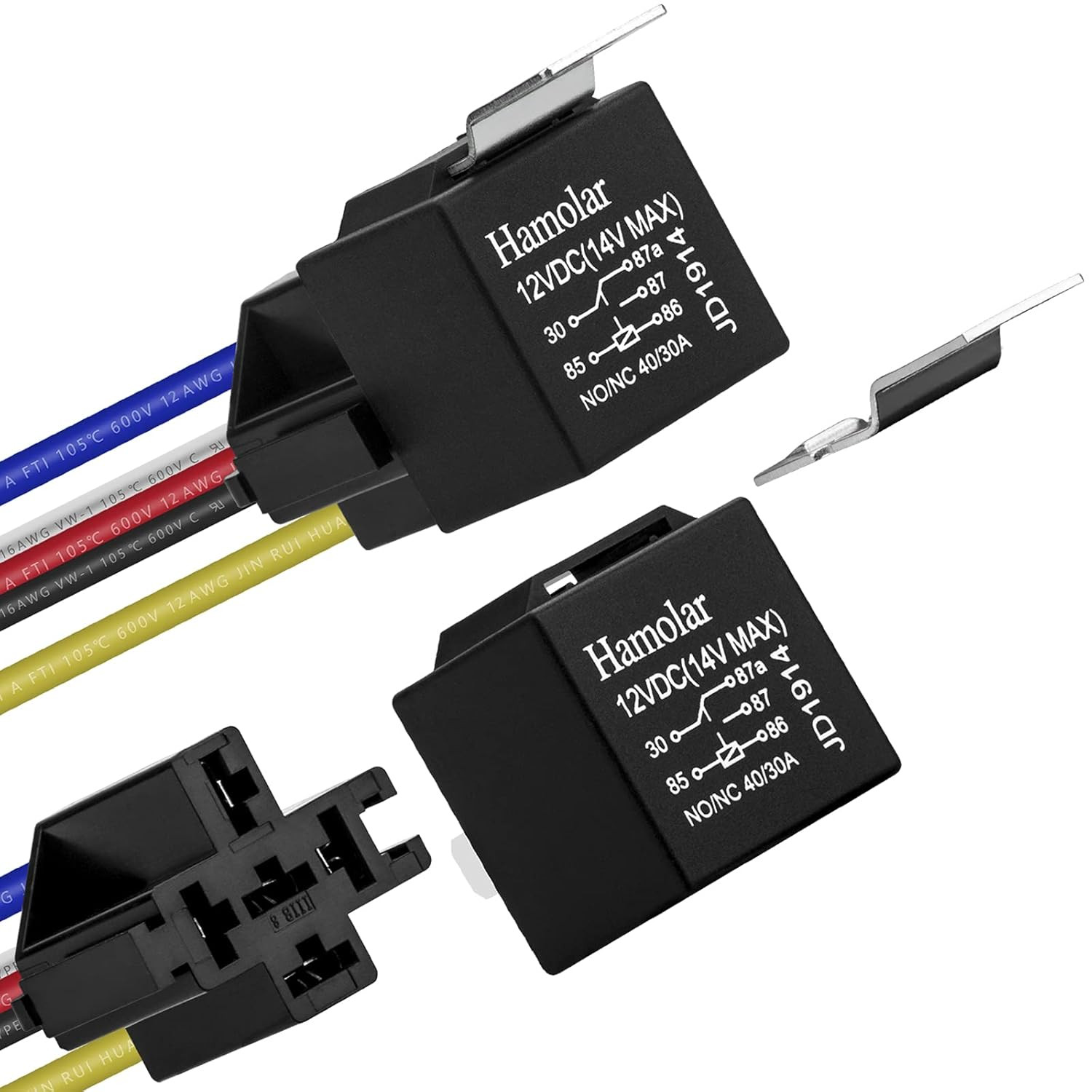

2 Pack 12V 40/30 Amp Car Relay DC 5 Pin SPDT and Harness - Heavy Duty 12 AWG
$ 6.44
Description

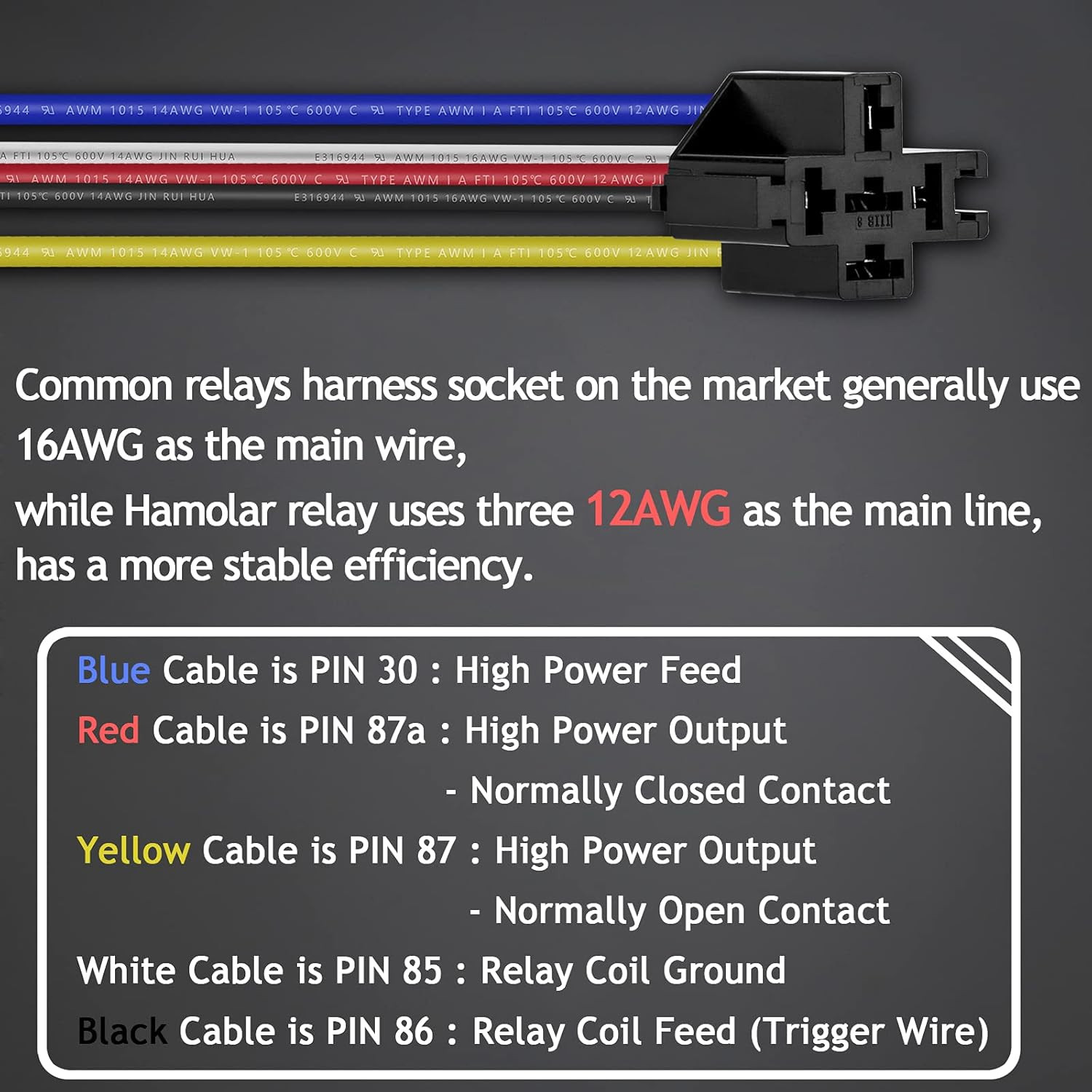

2 Pack 12V 40/30 Amp Car Relay DC 5 Pin SPDT and Harness - Heavy Duty 12 AWG . Function: 12VDC (14V Max) 5 Pin SPDT (Single Pole Double Throw) Relay with 40A/30A High Switching Capability. The 12v relay harness base contains 3 12 AWG and 2 16 AWG cables, length: 5.5 in, which have higher load-bearing capacity and more stable performance. Store New Arrivals Add to Favorite View Feedback Contact 2 Pack 12V 40/30 Amp Car Relay DC 5 Pin SPDT and Harness - Heavy Duty 12 AWG Description Maximum Switching Current 30 Amps Part Number JD1914 with Harness Socket-2PCS Minimum Switching Voltage 12 Volts (DC) Current Rating 40 Amps Brand Name Hamolar Mounting Type Socket Mount Contact Current Rating 30 Amps Wattage 420 watts Coil Voltage 12 Volts Connector Type Spade / Ring Terminal Operation Mode Electromagnetic Relay Contact Type Normally Closed / Normally Open Model JD1914 with Harness Socket-2PCS Contact Material Silver Copper Alloy Specification Met UL EU Spare Part Availability Duration 2 Years Manufacturer Hamolar The 12v relay harness base contains 3*12 AWG and 2*16 AWG cables, length: 5.5 in, which have higher load-bearing capacity and more stable performance. Function: 12VDC (14V Max) 5 Pin SPDT (Single Pole Double Throw) Relay with 40A/30A High Switching Capability. Wire Specifications: White - Ground (85), Blue - VDC (30), Black - Trigger (86), Red - Output N/C (87a), and Yellow - Output N/O (87). The dc car relay adopts waterproof sealing technology at the bottom and a fixed back strip on the back, which is suitable for various complicated installation environments. Relay and harness kit made by high-grade flame retardant materials to ensure superior quality and long lifespan. 2 Years Warranty. Product description Relay technical specification: Relay load: 40A/12VDC Contact Resistance: ≤ 100MΩ Contact Material: Ag Alloy Life Expectancy Electrical: 100,000 Operations Life Expectancy Mechanical: 10,000,000 Operations Coil power:1.8W Operate Time: 15ms Release Time: 10ms Initial withstand voltage of Contact and Contact: 1000VAC/1min Initial withstand voltage of Contact and Coil: 1500VAC/1min Insulation Resistance: 100MΩ/( 500VDC) Temperature Range: -55°C ~+70°C Humidity Range:35%-80% Atmospheric Pressure:86-106KPa Reliable Relay Construction Thickened alloy terminals and silver-plated contacts ensure excellent quality and provide effective protection. Harness Socket with 12AWG Cable Common relays harness socket on the market generally use 16AWG as the main wire, while Hamolar relays use three 12AWG wires as the main wire, has a more stable efficiency. Hamolar 12VDC Relay 40/30A 12VDC Automotive Relay Switch and Harness, 5 Pin 30 Amp SPDT Car Relays Kit.
