20 Inch Electric Bicycle 48V 1500W Rear Drive Motor Wheel Kit With 35A Cont GD
$ 254.13
Description

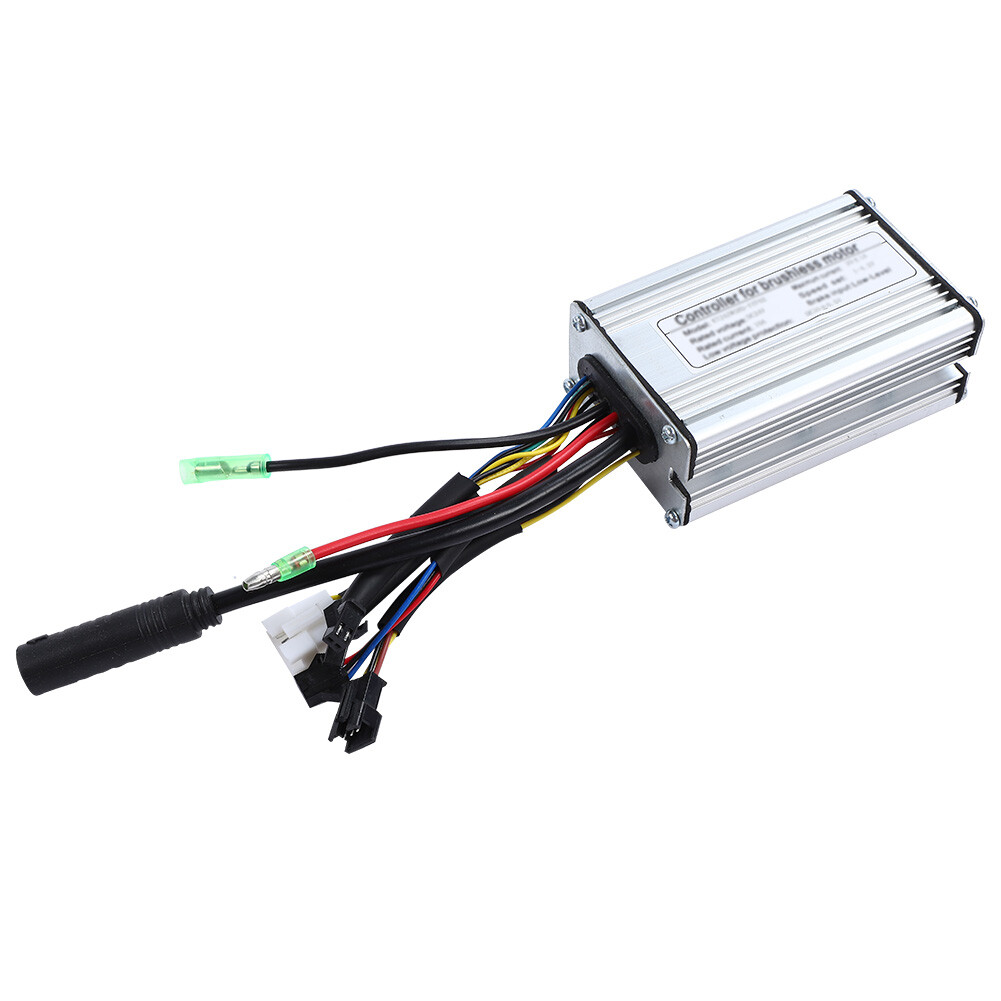

Feature: 1. Packing List: Including 48V 1500W rear drive 20 inch motor wheel, 35A controller, LCD S866 instrument, 130X dial, D12 , a pair of power off brake levers, controller bag and manual. 2. Brushless Wheel Hub Motor: Aluminum alloy rim is selected and treated with fine craftsmanship, which effectively enhances the edge of the rim. Looks light and high end, with strong carrying capacity and far more comfort than other types of motors. 3. Durable Material: Controller housing is made of high quality metal with groove design, it can protect the internal circuit due to good heat dissipation, thus avoiding thermal overload. Instrument is using ABS material, it is light, strong and durable, with good toughness and waterproof performance, providing better protection for the internal circuit. 4. LCD Backlight Display: LCD S866 display meter has a variety of functions, which can clearly display the status and data. When riding bicycle, it will display many useful data on your bicycle, such as battery display, speed display, battery indicator, fault indicator, total mileage, single mileage, current speed, average speed, maximum speed, gear display, etc. 5. 48V 1500W Rear Drive 20 inch Motor Kit: Suitable for bicycle lithium battery modification, DIY electric bicycle, electric vehicle, electric scooter, folding bike, etc. Easy to maintain, electric bicycle moped mountain bike modification conversion motor, high efficiency, greatly improves riding fun, for cyclists who like challenge. Specification: Item Type: Electric Bicycle Motor Controller Kit Color: As Pictures Shown Weight: Approx.9900g/349.2oz Material: Stainless Steel + Aluminum Alloy + ABS Plastic Size: Controller Box: Approx. 185x84x43mm/7.3x3.3x1.7in, Meter: Approx. 80x48mm/3.2x1.9in Motor Type: Rear Drive Flywheel Motor Motor Rated Voltage: 48V Motor Rated Power: 1500W Motor Speed: About 45-55km/h Motor Speed: 414-487 RPM Motor (n.m):71-74.6 N.M Motor Opening Size (mm): 135-142mm/5.3-5.6in Motor Matching Controller Current: 35A Motor RIM: P25D Motor Arm: M14 Brake Disc for Motor: Approx. 160mm/6.3in Motor Brake Type: V Brake, Disc Brake Universal Motor Position: Rear Wheel Motor Structure: DC motor Motor Magnet Height: 35H Motor Magnet Pole Number: 46 Motor Operating Temperature: -20℃-45℃ Controller Rated Voltage: DC 36V/48V Controller Maximum Current: 35A Controller Speed Setting: 1-4.2V Controller Brake Input: Low Level Controller : 1:5 Connector: Ordinary SM Connector Controller Wire Color Definition: 1. Black Single Big Head Cable: Waterproof Motor Cable (9pin) 2. Red and Black Single Big Head Line: Power Line 3. Red, Blue, Black, Green and Yellow Single Row Five Wire Port: Instrument Line 4. Black and Yellow Lines (two): Power off Brake Handle Line 5. Red and Black White Lines: Throttle Dial Line 6. Brown, Black and Yellow Line: Power Sensor Line 7. Black and Red Lines (two): Light Lines LCD S866 Meter Working Voltage: DC 24V, 36V, 48V, 60V Compatible (meter Selection Setting). LCD S866 Meter Meter Function Description: 1. Display Function: Speed Display, Battery Indicator, Fault Indicator, Total Mileage, Single Mileage. 2. Control Setting Functions: Power Switch Control, Wheel Diameter Setting, Idle Speed Automatic Sleep Time Setting, Backlight Brightness Setting, Startup Mode Setting, Drive Mode Setting, Voltage Level Setting, Controller Limit Value Setting. 3. Communication Protocol: UART Display All the Contents of the Screen (full Display for 1S After Booting) 3.1 Display of Battery Power and Remaining Power of Bms. 3.2 Multifunction Display Area: Total Mileage Odo, Single Mileage Trip (unit: Mile, Km), Single Boot Time Time, Battery Voltage Vol, Dst: Battery Life. 3.3 Speed ??display Area Avg: Average Speed, : Maximum Speed, Speed: Current Speed: Unit Mp/h Km/h The Speed Signal is Taken from the Hall Signal in the Motor and Sent to the Meter by the Controller. (the Time of a Single Hall Cycle, Unit: 1ms) the Instrument Will Calculate the Real Speed According to the Wheel Diameter and the Signal Data (the Number of Magnets Required by the Motor Hall). 3.4 Vehicle Power Gear Adjustment, 0-9 Digital Display and Gear Bar Display. Package List: 1 x Motor Wheel 1 x Controller 1 x Meter 1 x Instrument Manual 2 x Power off Brake Lever 1 x Throttle Dial 1 x D12 Power Assist Sensor Wiring 1 x D12 Sensor Sheet 1 x D12 Sensor Ring 2 x Cable Ties 1 x Controller Bag 1 x Manual 1. Our listing price includes the value of goods,packaging cost,and export taxes,not including international duties. 2. duties,taxes,and charges are not included in the item price or shipping fee. 3. T he duties are buyers' responsibility .Please check with your country's customs office determine what these additional costs will be prior to your purchase. 4. All disputes arising from the duties will be submitted to ebay for solution. 1. Any questions, pls. contact us via ebay message or email us. We will reply your message within 48 hours. If you do not receive our reply within 48 hours, pls. post a message again because sometimes our message system may block some emails. 2. If you are satisfied with our service, pls. kindly leave us a positive feedback and give us the Detailed Seller Rating with all " 5 " in very area 3. Our aim is to provide Level Customer Service, your recognition will encourage us greatly and serve you better. We strive to keep all our customers satisfy. We will do our up most to exceed your expectations in customer service, communication and dispatching of your orders.
