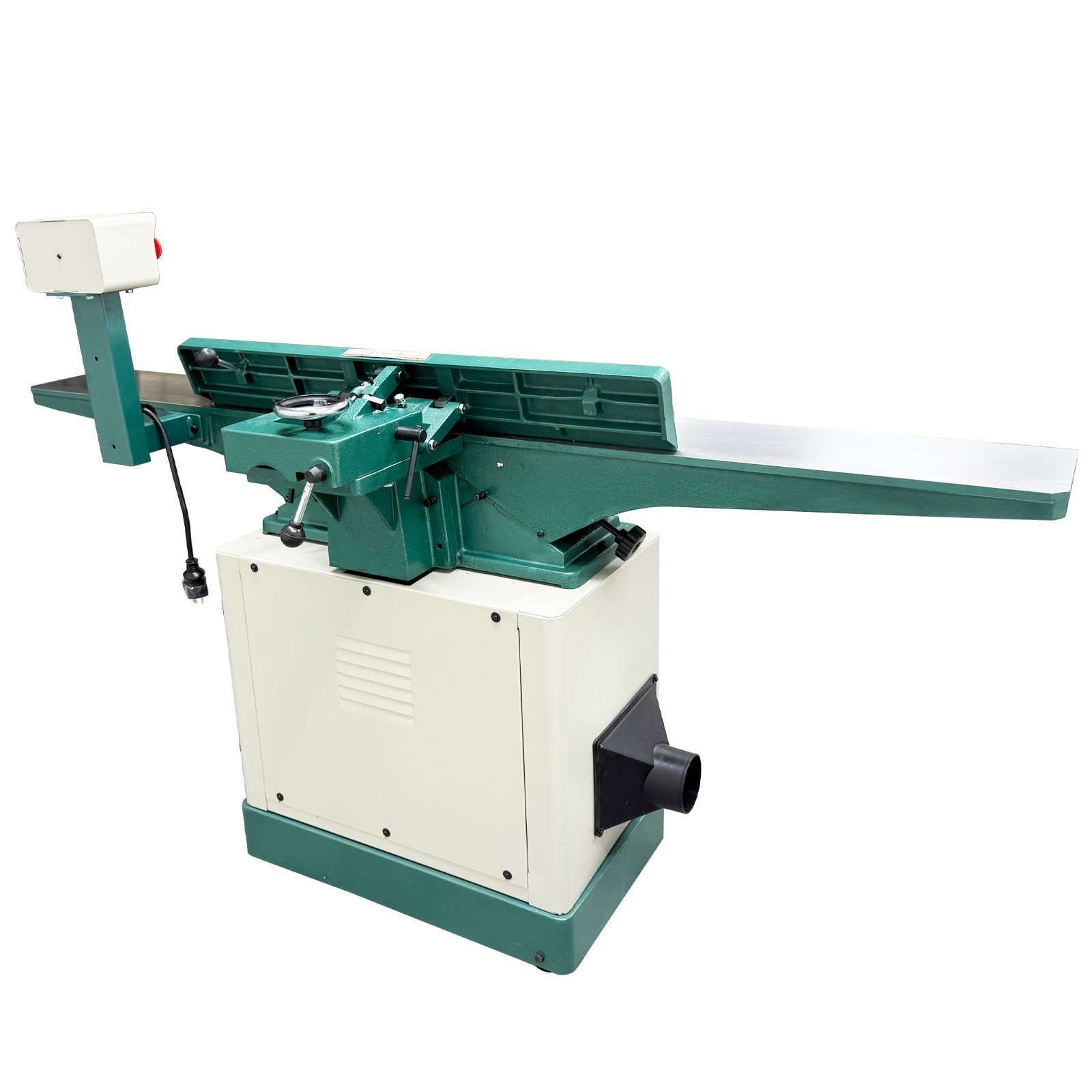

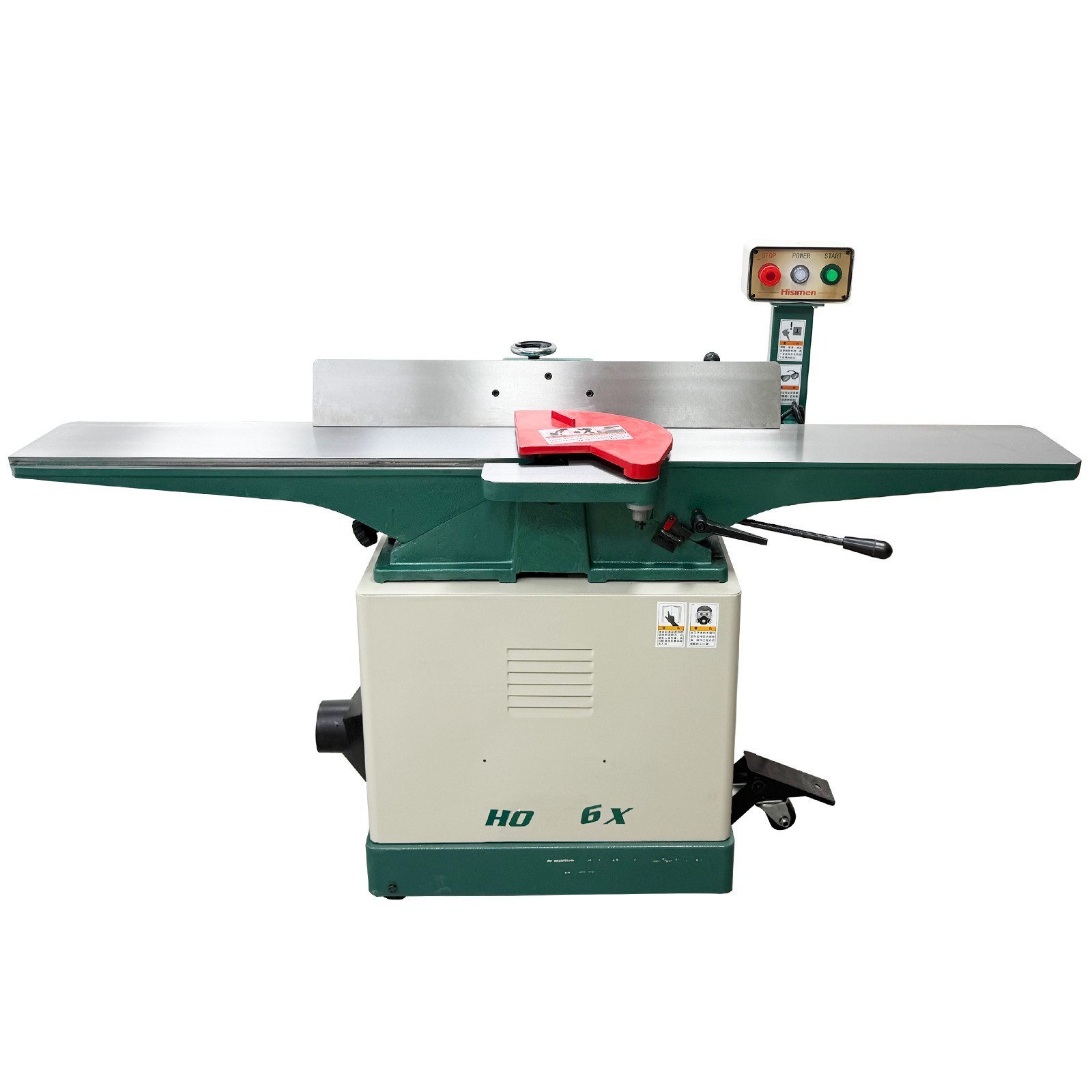

220V 2.2KW Heavy-Duty Woodworking Jointer Planer, Planing Width 1"-8", with Prec

Description

220V Heavy-Duty Woodworking Jointer Planer Product Overview This 220V 2.2KW woodworking box-type surface planer is driven by a high-power motor, characterized by strong power and the ability to continuously process wider boards, with overall box-type structure ensuring operational stability. Its function is to precisely plane wood surfaces through a high-speed rotating cutter shaft, enabling reference surface processing, thickness adjustment, and surface leveling. It is mainly suitable for woodworking workshops, furniture manufacturing, and decoration construction sites, used for squaring lumber, straightening boards, and other rough and fine processing tasks. Product Parameters Electrical Parameters Motor Type Induction Motor Rated Power 2200W Rated Voltage 220V Rated Frequency 50Hz Switch NHD Safety Electromagnetic Switch Planing Capacity Maximum Planing Width 8.0" (203mm) Minimum Planing Width 1" (25.4mm) Maximum Planing Depth 0.125" (3.175mm) Minimum Stock Thickness 0.5" (12.7mm) Minimum Stock Length 12.0" (305mm) Minimum Stock Width 1" (25.4mm) Mortising Dimensions 0.5*8" (12.7*203mm) Cutter Shaft Parameters Blade Cutting Diameter φ2.95" (φ75mm) Number of Blades 4 pieces Blade Specification 8.0*0.78*0.11" (205*20*3mm) Cutter Shaft Speed (5000RPM) Worktable Parameters Total Table Length 72.2" (1835mm) Infeed Table Length 35.3" (897mm) Outfeed Table Length 35.3" (897mm) Table Height (from floor) 32.2" (820mm) Stock Guide Parameters Fence Dimensions 5*35" (127*890mm) Positioning Angle 45°/ 90°/ 135° Dust Port Diameter φ3.9" (φ100mm) V-Belt Specification a1219 Push Handle Quantity 2 Machine Info Material Chrome-plated, Cast Iron Net Weight 413.3lbs (187.5kg) Gross Weight 525.8lbs (238.5kg) Precautions 1. During turning, sawing, grinding, drilling, and some other operations, dust is generated. This dust contains chemicals known to cause cancer, birth defects, or other reproductive harm. Examples of these chemicals include: ※ Lead from lead-based paints! ※ Quartz in bricks, cement, and other masonry materials! ※ Arsenic and chromium from chemically treated lumber! - Your risk of exposure to these chemicals varies depending on how often you perform such tasks. To reduce your exposure to these chemicals: please maintain good ventilation in your work area and use approved safety equipment, such as dust masks specifically designed to filter out fine particles! - Before starting, please wear safety glasses, a mask, earplugs, a face shield, and earmuffs. Please note: Everyday glasses are not safety glasses!!! 2. Before starting, please ensure the machine is correctly and securely assembled, the belt is tensioned, all handles are positioned and fixed, and the entire machine is stable and cannot move freely. 3. Before starting, please check for loose parts and bolts, damaged or potentially hazardous components, and any parts that may interfere with operation. Repair or replace them immediately with original factory parts. Non-original parts may cause danger. 4. Before starting, please confirm that safety guards are locked and functioning properly. Ensure the machine runs smoothly without interference before powering on. 5. Before starting, please adjust the fence to a suitable position, lock and secure it, and ensure the fence angle is accurate. 6. During operation, do not wear string gloves, loose clothing, ties, or long jewelry. Inappropriate clothing can be caught and entangled in rotating cutter shafts, causing serious personal injury. 7. After initial startup, check whether the rotation direction meets requirements. Operate without load for two minutes to confirm no abnormalities before trial planing. 8. Strictly prohibit planing workpieces after removing the belt guard and cutter shaft guard to avoid personal injury caused by entanglement of foreign objects or belt breakage. 9. Apply force evenly during feeding. Impact or overload planing may cause workpiece damage, blade chipping, motor burnout, etc. 10. Do not leave the machine running unattended. Never leave the machine before the cutter shaft has completely stopped. 11. Never attempt to touch the cutter shaft or any rotating parts with any part of your body before the cutter shaft has completely stopped. 12. Always be alert to workpiece kickback. During kickback, the workpiece may be thrown toward the operator or pull the operator's hand into the rotating cutter shaft!!! Product Features & Advantages NHD Safety Electromagnetic Switch This NHD safety electromagnetic switch is equipped with thermal overload protection, characterized by its ability to monitor motor current and temperature in real time. When motor overload or abnormal temperature rise is detected, it automatically cuts off the power supply, thereby preventing motor burnout due to overheating and ensuring operational safety of the equipment. Cutter Head Safety Guard This cutter head safety guard fully covers the high-speed rotating cutter head area. Its function is to physically isolate the operator's hands from accidental contact with the cutter head, effectively avoiding cutting injury risks and ensuring personnel safety during planing operations. Worktable Dovetail Lifting Mechanism It features extremely high structural rigidity and precise fitting clearance. Its function is to achieve smooth and precise lifting adjustment of the worktable through the guiding function of the dovetail groove, while effectively resisting the vibration and impact generated during planing, ensuring the stability of the planing depth. Worktable Lifting Scale This worktable lifting scale adopts a precision-etched ruler structure, characterized by clear graduations and accurate markings. Its function is to provide the operator with an intuitive thickness reference, allowing for quick setting of the worktable height through direct reading of the scale values, thereby ensuring the accuracy of workpiece planing dimensions. Infeed Table Adjustment Handle It adopts a user-friendly handle-style adjustment design, allowing direct control of the table's lifting and lowering by rotating the handle. This handle is effortless to operate and provides precise positioning, enabling quick adjustment of the table to the target height, ensuring accurate setting of workpiece planing dimensions, and significantly improving setup efficiency and operational convenience. Fence Quick-Set System This fence adopts a sliding table movement structure, featuring front-rear sliding and quick positioning at internal/external 45° and 90° angles. Its characteristic lies in the ability to achieve multi-angle rapid fixation through a locking mechanism. The function is to provide an accurate reference stop for workpieces, ensuring consistency in planing angles while significantly improving setup efficiency and machining accuracy. Swivel Casters The swivel casters feature a foot-pedal locking mechanism. Stepping on the pedal simultaneously locks the wheels and lowers the support base to the ground. Through the coordinated movement of four swivel casters, the surface planer can be easily moved to designated workstations within the workshop and quickly secured in place, effectively enhancing equipment mobility and positioning efficiency. Dust Port This dust port features a standard circular interface design, characterized by a port size that matches the piping of common industrial dust collection equipment. Its function is to connect to an external dust collector, directly suctioning wood chips and dust during the planing process, maintaining a clean working environment while preventing debris accumulation from affecting machining accuracy. Outfeed Table Adjustment Handle This outfeed table adjustment handle adopts a standby design, typically pre-calibrated at the factory. Its function is to fine-tune the outfeed table height when specifically required, aligning it tangentially to the cutter head's cutting circle to ensure smooth workpiece output. It requires no frequent operation in daily use and is primarily intended for maintenance calibration. 1. 2200W All-Copper Wire Wound Induction Motor: Uses pure copper windings to ensure high electrical conductivity and strong heat resistance, guaranteeing stable continuous high-power output from the motor. 2. Precision Ground Table: The surface is precision ground, making it flat, smooth, and wear-resistant, effectively reducing workpiece friction. 3. Cast Iron Fence: The heavy-duty cast iron structure provides strong support, allowing for precise positioning and resistance to machining impacts. 4. Dovetail Lifting: The dovetail guideway structure enables smooth lifting of the worktable, with precise positioning and no looseness. 5. Angle Planing: The fence can be adjusted to multiple angles, supporting bevel planing to meet diverse process requirements. 6. Arc Cutter Head: The cutter head is dynamically balanced for smooth rotation with minimal vibration, ensuring a high-quality planed surface finish. 7. Rapid Lifting: An optimized transmission mechanism allows for efficient lifting of the worktable, saving adjustment time. 8. Mobile Casters: Equipped with locking swivel casters for easy equipment relocation and secure positioning at the work site. Operating Instructions ※ After your purchase, we will provide you with detailed instruction manuals and operating guidelines. For your own safety, please read the manual carefully before operating this machine. ※ While using the machine, always prioritize safety and ensure the following: please install it correctly in a safe environment; provide personnel training and usage authorization; perform proper inspection and maintenance; understand the manual content; and use personal protective equipment to safely operate the machine. ※ To avoid accidental injury or property damage, DO NOT operate the machine without adequate training. Unauthorized modification or misuse of the machine is strictly prohibited!!! Product Structure Overview Product Presentation & Details Item Included (022828) 220V Heavy-Duty Woodworking Jointer Planer *1 Accessory Kit *1 Shipping & Handling Details Default Shipping Cost or Free Shipping Information: Default shipping cost or free shipping service is only for the lower 48 United States by UPS Ground or USPS. Other areas or needs other shipping ways, please contact us. Buyers from Guam, Puerto Rico, Virgin Islands, American Samoa, Alaska, Hawaii, PO Boxes, APO/FPO addresses or other countries/areas, there WILL be extra shipping costs, please contact us for more detailed information. Please make sure your address is valid for both UPS and USPS services. Any costs incurred because of incorrect or undeliverable address should be undertaken by buyer. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Sales tax / Customs duties: Any sales taxes or Customs duties are not included. If came out, they must be undertaken by the buyer. Sales Tax of 8% will be applied for orders shipped within the state of California. Damage In Shipping: Email or call us First! We will work with you to get the case resolved in the fastest method. Return / Refund If you are not 100% happy with your purchase, please contact Us. Please don't directly opened a request or case without informing us, or else, we will do some discounts on the warranty and other sales-services later on. Hope for your understanding. Returns & Exchanges All returns must be made within 14 days of delivery date. Items must be in new, unused condition, with all original materials included with the shipment. A partial refund may be applied for opened or damaged items, depending on the condition. Items returned under the buyer remorse: The return shipping fee must be covered by the buyer; The original shipping cost will also be deducted from the refund. 15% restocking fee of the items purchase price will be charged. Returns that are the result of our seller's error: Buyer will receive a full refund of the item as well as shipping charges All returns require a RA (Return Authorization) number that will be given by our seller. Please contact with us at first for more details. Defective & Damaged Products If product was received damaged or not as described, please send us some pictures or videos, so we could well understand your problem, then solve them for you ASAP. Besides, it's much helpful for us to claim with UPS, remind our related department to pay much more attention to packaging later on. Hope for your understanding. Replacement or refund of defective or damaged products can only be returned in exchange for the exact same product, or else, the purchase price will be refunded back to your original payment method. If an item is received damaged, customer service must be contacted within 7 days of receiving your item. All returns require a RA (Return Authorization) number as above. Payment eCheck Issues: Payments via eCheck do not clear immediately. Usually you will wait 5-7 days after checkout for it to clear. Then we will arrange shipments for you. Warranty & Feedback 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. Any warranty shipping cost to us is responsible by buyer. Any shipping cost to buyer is responsible by the seller. We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much.
