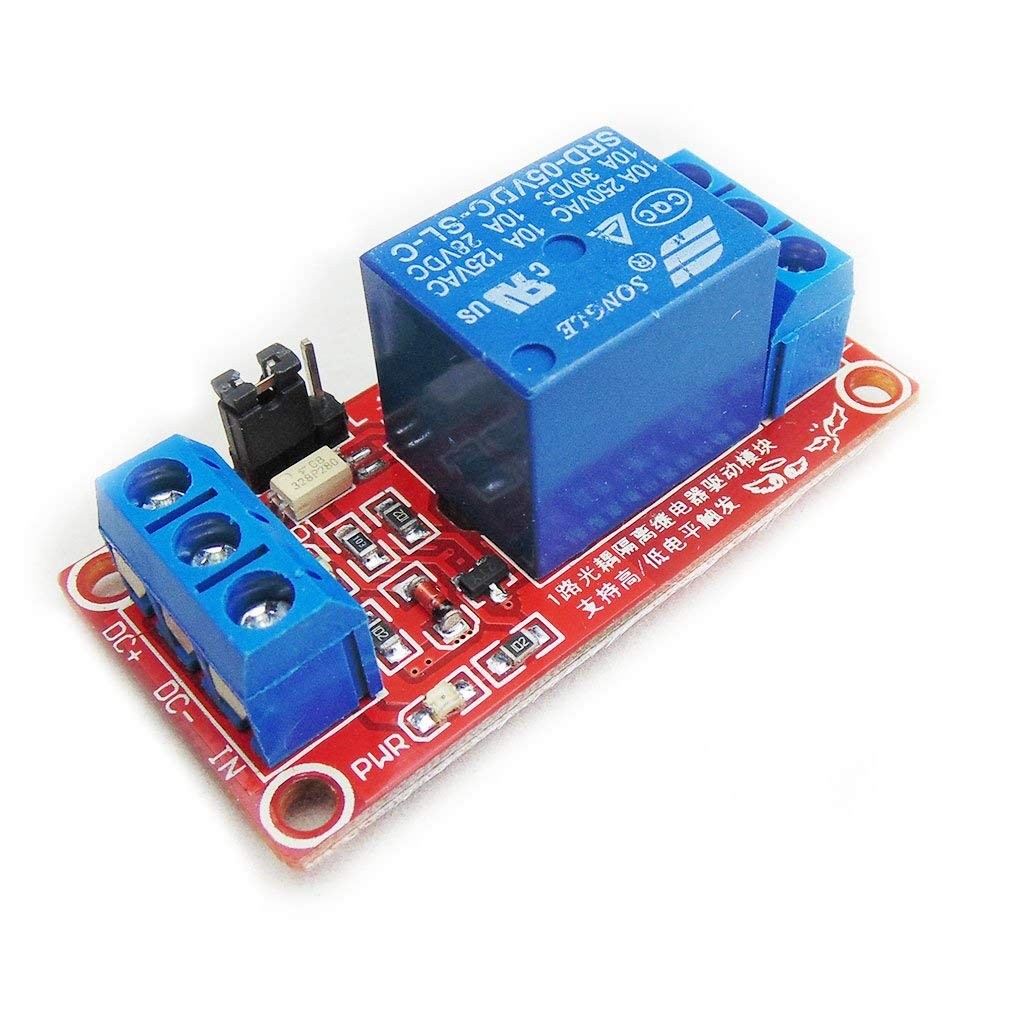

2Pcs 5V One Channel Relay Module with Opto Isolation, High/Low Level Trigger
$ 7.39
Description
2Pcs 5V One Channel Relay Module with Opto Isolation, High/Low Level Trigger. Using SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA. The Module can be set by jumper high or low trigger. IN: Signal trigger input (High or Low Level Signal, select via jumper). 2Pcs 5V One Channel Relay Module with Opto Isolation, High/Low Level Trigger The module uses genuine quality relay, normally open interfaces , Maximum load: AC 250V/10A, DC 30V/10A. Using SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA. Fault-tolerant design, even if the control line is broken, the relay will not move. The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient. The Module can be set by jumper high or low trigger. Module description: 1.The module Operating voltage 5V; 2.Fault-tolerant design, even if the control line is broken, the relay will not operate; 3.The power indicator (green), the relay status indicator (red); 4.Module size: 50mm*26mm*18.5mm (L*W*H). Interface: -Input VCC: Relay power supply + GND: Relay power supply - IN: Signal trigger input (High or Low Level Signal, select via jumper) -Output NO: Relay normally open. COM: Relay Common Pin NC: Relay normally closed. High or Low Level Trigger Select: 1. Use High Level Trigger When ¡°IN¡± input High Level Signal, the ¡°NO¡± connect with ¡±COM¡± When ¡°IN¡± input Low Level Signal, the ¡°NC¡± connect with ¡°COM¡± 2. Use Low Level Trigger When ¡°IN¡± input Low Level Signal, the ¡°NO¡± connect with ¡±COM¡± When ¡°IN¡± input High Level Signal, the ¡°NC¡± connect with ¡°COM¡± 3. High or Low Level Trigger Select Jumper connect with L, Low Level Trigger Jumper connect with H, High Level Trigger Package Included： 2* 5V 1 Channel Relay Module Shipping We offer FREE shipping on all orders! We ship within Three business days of payment, usually sooner. We use a selection of shipping services such as UPS, FedEx, USPS etc. We only ship to the lower 48 states, no APO/FPO addresses or PO Boxes allowed. Local pickups and combined shipping options are not provided at this time. Return You can return a product for up to 30 days from the date you purchased it. Any product you return must be in the same condition you received it and in the original packaging. Please keep the receipt. Payment We accept payment by any of the following methods:PayPal Please pay as soon as possible after winning an auction, as that will allow us to post your item to you sooner! Feedback Customer satisfaction is very important to us. If you have any problem with your order, please contact us and we will do our best to make you satisfied. Contact Us If you have any queries, please contact us via ebay. We usually respond within 24 hours on weekdays. Please visit our eBay store to check out other items for sale! Thank you for shopping at our store.
