3 Inch Front and Rear Leveling Lift Kit for 2002-2008 Dodge Ram 1500 2WD

Description

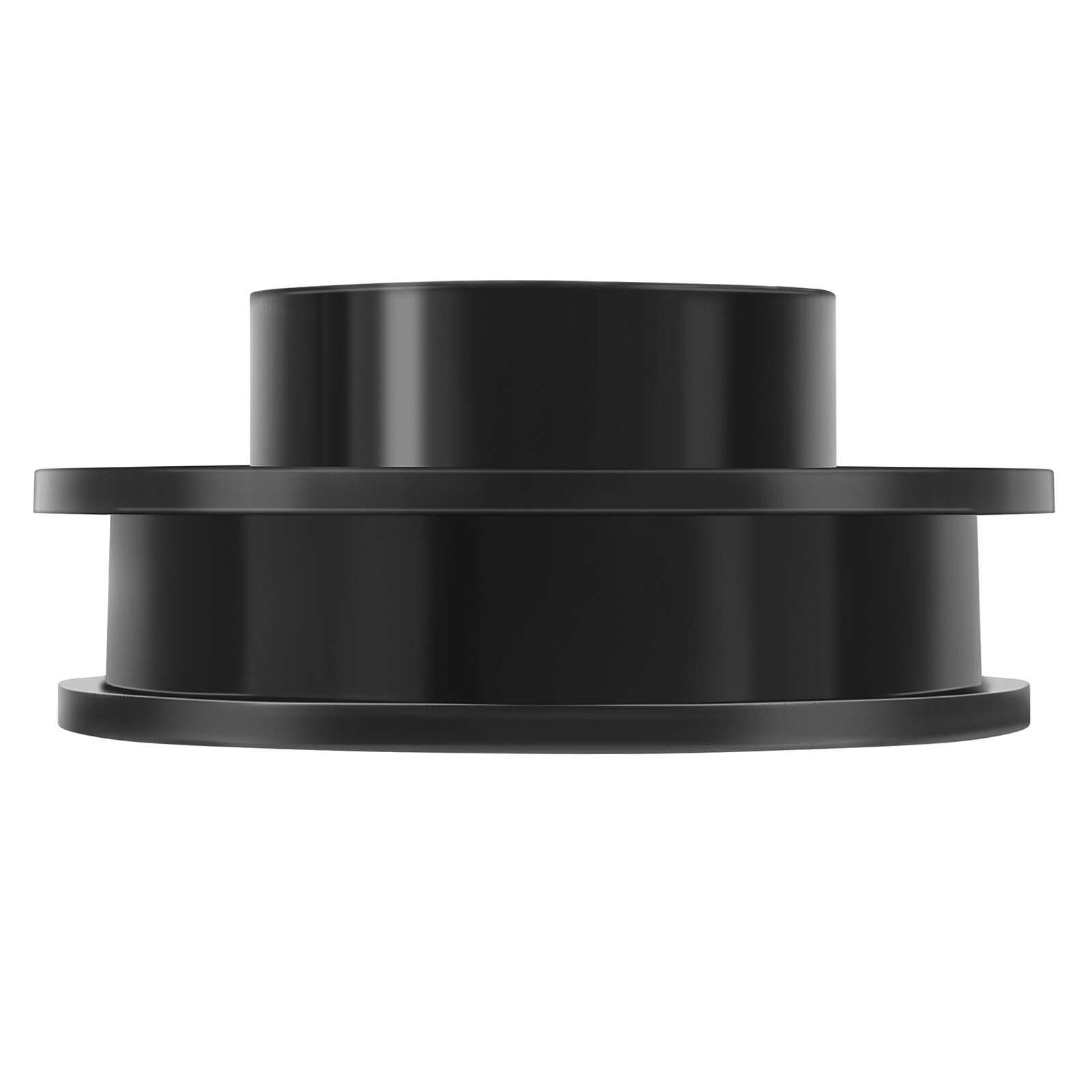

Front Spacers: After removing the wheel, remove any brake line and ABS line brackets, so you have enough slack in the lines. Use a wrench to remove the upper strut mount nuts and the upper ball joint nut. Strike the side of knuckle with a hammer to get the ball joint to separate. Using a wrench, remove the steering linkage nut. Remove the sway bar nut and bushing. Remove the two lower strut mount bolts and remove the strut from the vehicle. 3" Front & 3" Rear Leveling Lift Kit Fits Dodge Ram 1500 2WD 2002-2006 2007 2008 Front Spacers: After removing the wheel, remove any brake line and ABS line brackets, so you have enough slack in the lines. Use a wrench to remove the upper strut mount nuts and the upper ball joint nut. Strike the side of knuckle with a hammer to get the ball joint to separate. Using a wrench, remove the steering linkage nut. Remove the sway bar nut and bushing. Remove the two lower strut mount bolts and remove the strut from the vehicle. Install the supplied bolts into the leveling kit spacer. These will act as the new studs when reinstalled. Bolt the spacer to the top of the strut using the supplied nuts. Rotate the strut 180 degrees and install it back into the truck. Re-insert the lower strut bolts. The lower mount bushing will rotate to correct the angle. Raise the lower control arm to raise the spindle while lowering the upper control arm to re-install the upper ball joint and Re-install the steering linkage. Complete the installation on the other side of the truck before reinstalling the sway bar nut and bushings. Rear Blocks: Support the rear axle with a jack and jack stands. Remove the brake and parking brake cables so there is slack in the lines. Remove the lower rear shock mount nut and bolt. Remove the factory rear U-bolts and discard them. Lower the axle to remove the factory block, or you can put new blocks on the factory block, get a new lift. Install the new rear block making sure the smaller side of the spacer is facing the front of the truck. Install the new supplied U-bolts and torque to factory spec. Complete the installation on the other side of the truck before reinstalling any brake or ABS lines. After 100 miles recheck torque to factory spec. Item Specifics Brand gdcarpartsin Manufacturer Part Number GD84705601car Lift Height 3" Front & 3" Rear Actual Spacer Thickness appr. 1.89"/ 48mm Note Lifting height is not exactly equal to spacer thickness Blocks Specs 5.12" Long x 2.48" Wide Included Hardware All Parts in pictures included Part Type Suspension Lift Kit Fitment Type Performance/Custom Placement on Vehicle Left Right Front Rear Warranty 1 Year Material Steel Kit or Single Part Kit Kit Parts Included Spring Spacers Lift Blocks U-Bolts Instruction No Included Fitment For Dodge Ram 1500 2500 3500 Drive Type 4x2 2WD Color Black Interchange Part Number for 2002-2008 Dodge Ram 1500 2WD Other Part Number for Fits 2003-2011 Dodge Ram 2500 Ram 3500 2WD U Bolt Specs Square 10.63" Long / 3.58" Wide / 5.12" Threads / 9/16"-18 Quantity 2X Front Spring Spacers 2X Rear Blocks 4X U-bolts Shipping 1. Orders processed within 24 hours of payment verification. (if you want cancel orders or change address pls contact us within 6 hours after payment, or we are not responsible for shipping a replacement.) 2. Fast shipping: All our packages use USPS First Class/UPS/Fedex... Package Service 3. If you have not received your shipment within 15 days from payment, please contact! Return 1. If you have a defected item under warranty, you can return it with 30 days after the pruchase date. 2. All returned items must be in the original packaging and you must provide us with the shipping tracking number, specific reason for the return, and item custom lable. 3. We will refund your full winning bid amount, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER both Buyer and Seller cancel the transaction from eBay. OR, you may choose to have a replacement. Feedback 1. We strive for 100% customer satisfaction! FEEDBACK IS VERY IMPORTANT TO US. 2. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. Payment 1. We accept multiple payment methods. 2. If you want cancel orders or change address pls contact us within 6 hours after payment, or we are not responsible for shipping a replacement. 3. Payment must be received within 10 days as auction ended or order might be delayed. Warranty 1. We stand behind every product we sell. 2. We define the item as defective only if it doesn't function as described. 3. It is the buyer's responsibility to understand the item description before bidding. 4. Man-made damage by abuse or wrong operation is not covered by this warranty. 5. No product liability insurance is assumed. Shop Category Store Home Mirror Parts ◈ Vehicle Mirrors ◈ Truck Mirrors ◈ Mirror Glasses & Other Parts Brake Parts ◈ Brake Rotors ◈ Brake Pads ◈ Brake Rotors + Pads Mass Air Flow Sensors Oxygen Sensors Cooling Parts ◈ Radiators ◈ Radiator Hoses ◈ Cooling Fans ◈ Fan Clutches ◈ Intercoolers AC Condensers Heater Cores Evaporators Wheel Hub Bearings Wheel Spacers Leveling Lift Kits Wheel Lug Nuts Knock Sensors Jack Stands Air Cleaner Filter Boxes Steering U-Joints Steering Shafts suspension kit ◈ cj Idle Air Control Valve 4 pcs wheel hub bearing Fender Flares ABS Speed Sensor Vehicle Speed Sensor Cargo Cover Hub Caps Pillar Posts Polisher Windshield Outer Trim Fuse Holder Box Brake System Parts ◈ Brake Pads & Brake Shoes ◈ Brake Calipers Radiator Support Tonneau Cover Wheel Hub Bearing Knuckle Bug Shield Window Visor Roof Rack Engine Timing Chain Kit Engine Timing Belt Kit Engine Repair Kit headlight assembly Harmonic Balancer Coolant Reservoir Thermostat Housing ATV Rear Wheel Axle car tool Bumper Complete Struts Fuel Injectors Coilovers Steering Knuckle Air Shock Shock Struts & Suspension Kit & Hubs Lift Support Horn Tilt Trim Motor Power Brake Booster Dipstick Ballast Module Air Dryer Timing Chain Kit Mud Flaps Protection Shield & Lift Kit Air Intake Snorkel Cylinder Piston Kit Motorcycle Exhaust Pipe Strut Mount Adjustable Rear Control Arm Metal heat shield sleeve Brake Drums& Brake Shoes Shift Knob Lever Head Removal Tool Air Suspension Valve Solenoid steering knuckle-7 Window Regulator Winch Turbocharger Throttle Body Fuel Pump Transfer Case Shift Motor CV Axle Household Air Cooler Bushing Window Switch Bed Step Rubber Seal Strip Ignition Coils Driveshaft starter Stator Trailer Tools Spark Plug AC Compressor Airbag Hairspring Coil Spring Spoiler Front Bumper LIp Air Filter Steering Knuckle & Other Weatherstrip Seal Blower Motor alternator Catalytic Converter Engine Mount Other Hot Item (4) 1.5" 8x6.5 to 8x180 Wheel Adapters Fits Chevy Silverado 2500 HD GMC Sierra USD 106.54 (4) 2" Hubcentric Wheel Spacers 6x5.5 Fits Toyota Tacoma 4Runner Tundra Sequoia USD 95.89 (4) 2" Hubcentric 6x5.5 Wheel Spacers For Chevy Silverado Tahoe GMC Sierra 1500 USD 94.89 (4) 1.5" Hubcentric Wheel Spacers 6x5.5 For Toyota Tacoma 4Runner Tundra Lexus USD 73.99 (4) 2" Hubcentric 5x5 Wheel Spacers Fits Jeep JK JKU Wrangler Grand Cherokee WK USD 86.89 Delivery New List Item Fits 2008 2009 2010 2011 2012 2013 - 2017 BUICK ENCLAVE Rear Brake Rotors Discs USD 79.03 Fits BUICK ENCLAVE 2008 2009 2010 2011 2012 - 2017 Front & Rear Brake Rotors USD 175.17 Front + Rear Brake Disc Rotors And Ceramic Pads Slotted For Honda Pilot 12 - 15 USD 207.80 Front + Rear Brake Disc Rotors And Ceramic Pads For Honda Pilot 2009 2010-2011 USD 206.54 Brake Front Disc Rotors And Ceramic Pads Drilled Slot For Acura ZDX 2010 - 2013 USD 122.83 Help & Info Payment Policy Shipping Policy Return Policy FAQ About Us 3" Front & 3" Rear Leveling Lift Kit Fits Dodge Ram 1500 2WD 2002-2006 2007 2008 Front Spacers: After removing the wheel, remove any brake line and ABS line brackets, so you have enough slack in the lines. Use a wrench to remove the upper strut mount nuts and the upper ball joint nut. Strike the side of knuckle with a hammer to get the ball joint to separate. Using a wrench, remove the steering linkage nut. Remove the sway bar nut and bushing. Remove the two lower strut mount bolts and remove the strut from the vehicle. Install the supplied bolts into the leveling kit spacer. These will act as the new studs when reinstalled. Bolt the spacer to the top of the strut using the supplied nuts. Rotate the strut 180 degrees and install it back into the truck. Re-insert the lower strut bolts. The lower mount bushing will rotate to correct the angle. Raise the lower control arm to raise the spindle while lowering the upper control arm to re-install the upper ball joint and Re-install the steering linkage. Complete the installation on the other side of the truck before reinstalling the sway bar nut and bushings. Rear Blocks: Support the rear axle with a jack and jack stands. Remove the brake and parking brake cables so there is slack in the lines. Remove the lower rear shock mount nut and bolt. Remove the factory rear U-bolts and discard them. Lower the axle to remove the factory block, or you can put new blocks on the factory block, get a new lift. Install the new rear block making sure the smaller side of the spacer is facing the front of the truck. Install the new supplied U-bolts and torque to factory spec. Complete the installation on the other side of the truck before reinstalling any brake or ABS lines. After 100 miles recheck torque to factory spec. Item Specifics Brand : gdcarpartsin Manufacturer Part Number : GD84705601car Lift Height : 3" Front & 3" Rear Actual Spacer Thickness : appr. 1.89"/ 48mm Note : Lifting height is not exactly equal to spacer thickness Blocks Specs : 5.12" Long x 2.48" Wide Included Hardware : All Parts in pictures included Part Type : Suspension Lift Kit Fitment Type : Performance/Custom Placement on Vehicle : Left Right Front Rear Warranty : 1 Year Material : Steel Kit or Single Part : Kit Kit Parts Included : Spring Spacers Lift Blocks U-Bolts Instruction : No Included Fitment : For Dodge Ram 1500 2500 3500 Drive Type : 4x2 2WD Color : Black Interchange Part Number : for 2002-2008 Dodge Ram 1500 2WD Other Part Number : for Fits 2003-2011 Dodge Ram 2500 Ram 3500 2WD U Bolt Specs : Square 10.63" Long / 3.58" Wide / 5.12" Threads / 9/16"-18 Quantity : 2X Front Spring Spacers 2X Rear Blocks 4X U-bolts Shipping Return Feedback Payment Warranty 1. Orders processed within 24 hours of payment verification. (if you want cancel orders or change address pls contact us within 6 hours after payment, or we are not responsible for shipping a replacement.) 2. Fast shipping: All our packages use USPS First Class/UPS/Fedex... Package Service 3. If you have not received your shipment within 15 days from payment, please contact! 1. If you have a defected item under warranty, you can return it with 30 days after the pruchase date. 2. All returned items must be in the original packaging and you must provide us with the shipping tracking number, specific reason for the return, and item custom lable. 3. We will refund your full winning bid amount, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER both Buyer and Seller cancel the transaction from eBay. OR, you may choose to have a replacement. 1. We strive for 100% customer satisfaction! FEEDBACK IS VERY IMPORTANT TO US. 2. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. 1. We accept multiple payment methods. 2. If you want cancel orders or change address pls contact us within 6 hours after payment, or we are not responsible for shipping a replacement. 3. Payment must be received within 10 days as auction ended or order might be delayed. 1. We stand behind every product we sell. 2. We define the item as defective only if it doesn't function as described. 3. It is the buyer's responsibility to understand the item description before bidding. 4. Man-made damage by abuse or wrong operation is not covered by this warranty. 5. No product liability insurance is assumed. All rights reserved.
