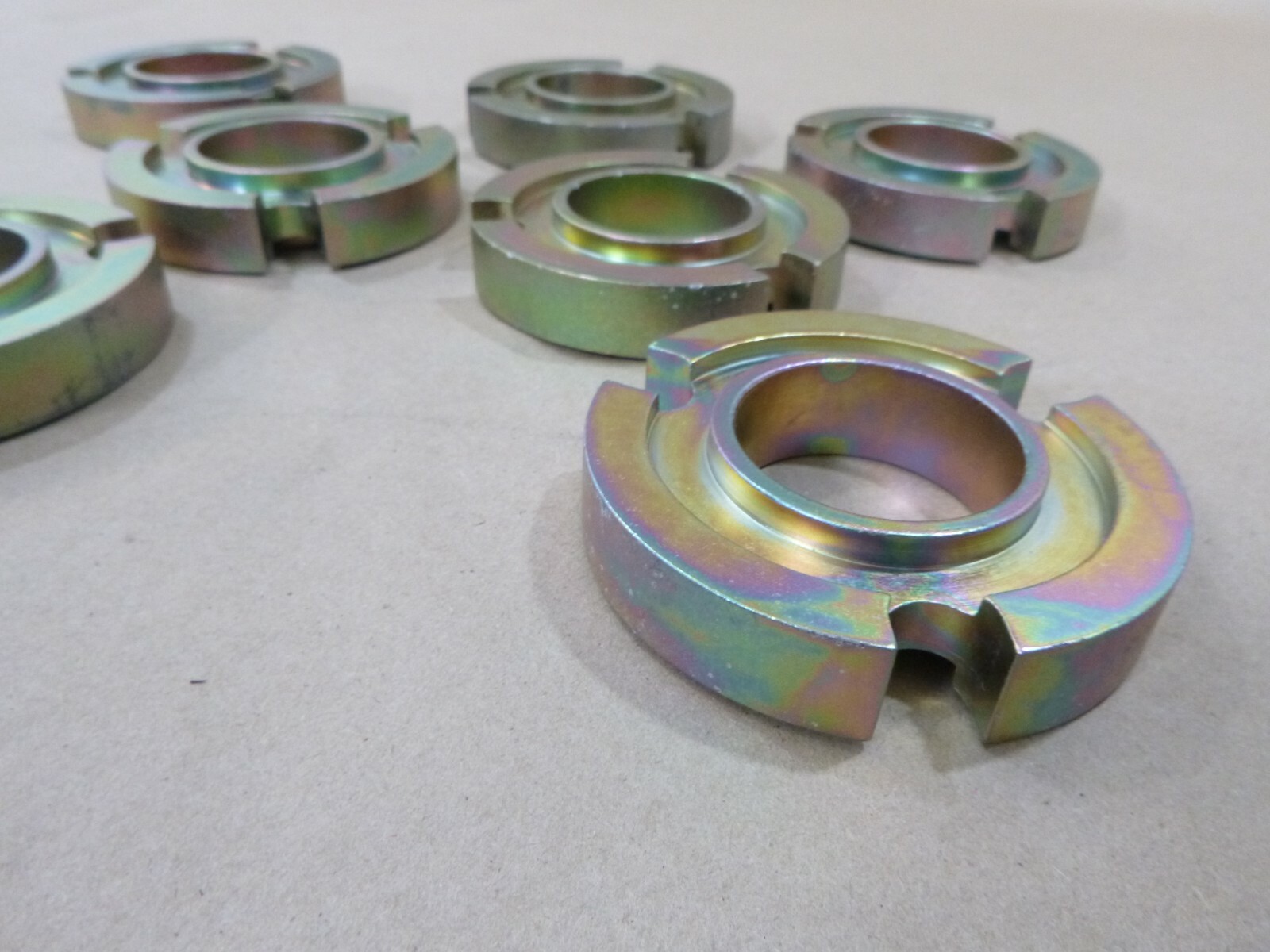

7x Heavy-Duty M1000 Military Trailer Spacer Sleeves 5365-01-326-3559

$ 105.58

Manufacturer Part Number: SW33892 Seller Notes: “NEW MILITARY SURPLUS SW33892” UPC: Does not apply Brand: DRS gtin13: Does not apply

Description

Military M1000 Heavy Equipment Semi Trailer Spacer Sleeve 5365-01-326-3559 THIS SALE IS FOR ALL 7 SPACERS TECHNICAL CHARACTERISTICS STYLE DESIGNATOR (STYL) SOLID END ITEM IDENTIFICATION (AGAV) 2330-01-303-8832 M1000 CHETTL TRAILER BODY INSIDE DIAMETER (ADAS) 1.5800 INCHES MINIMUM AND 1.5900 INCHES MAXIMUM CORNER SHAPE (BZLX) SQUARE ALL CORNERS END TO FLANGE DISTANCE (AJFM) 0.1950 INCHES MINIMUM AND 0.2100 INCHES MAXIMUM FLANGE OUTSIDE DIAMETER (AEPR) 2.3800 INCHES NOMINAL FLANGE WIDTH (AGFF) 0.2880 INCHES NOMINAL OVERALL LENGTH (ABHP) 0.7080 INCHES MINIMUM AND 0.7380 INCHES MAXIMUM LEFT END BODY DIAMETER (CTSN) 1.8350 INCHES MINIMUM AND 1.8500 INCHES MAXIMUM MATERIAL (MATT) STEEL COMP 1015 OVERALL OR STEEL COMP 1016 OVERALL OR STEEL COMP 1017 OVERALL OR STEEL COMP 1018 OVERALL OR STEEL COMP 1019 OVERALL OR STEEL COMP 1020 OVERALL OR STEEL COMP 1021 OVERALL OR STEEL COMP 1022 OVERALL OR STEEL COMP 1025 OVERALL OR STEEL COMP 1026 OVERALL OR STEEL COMP 1030 OVERALL RIGHT END BODY DIAMETER (CTTG) 1.8350 INCHES MINIMUM AND 1.8500 INCHES MAXIMUM STYLE DESIGNATOR (STYL) SOLID, EXTERNAL FLANGE STYLE DESIGNATOR (STYL) 21C SOLID, EXTERNAL FLANGE E3Q
