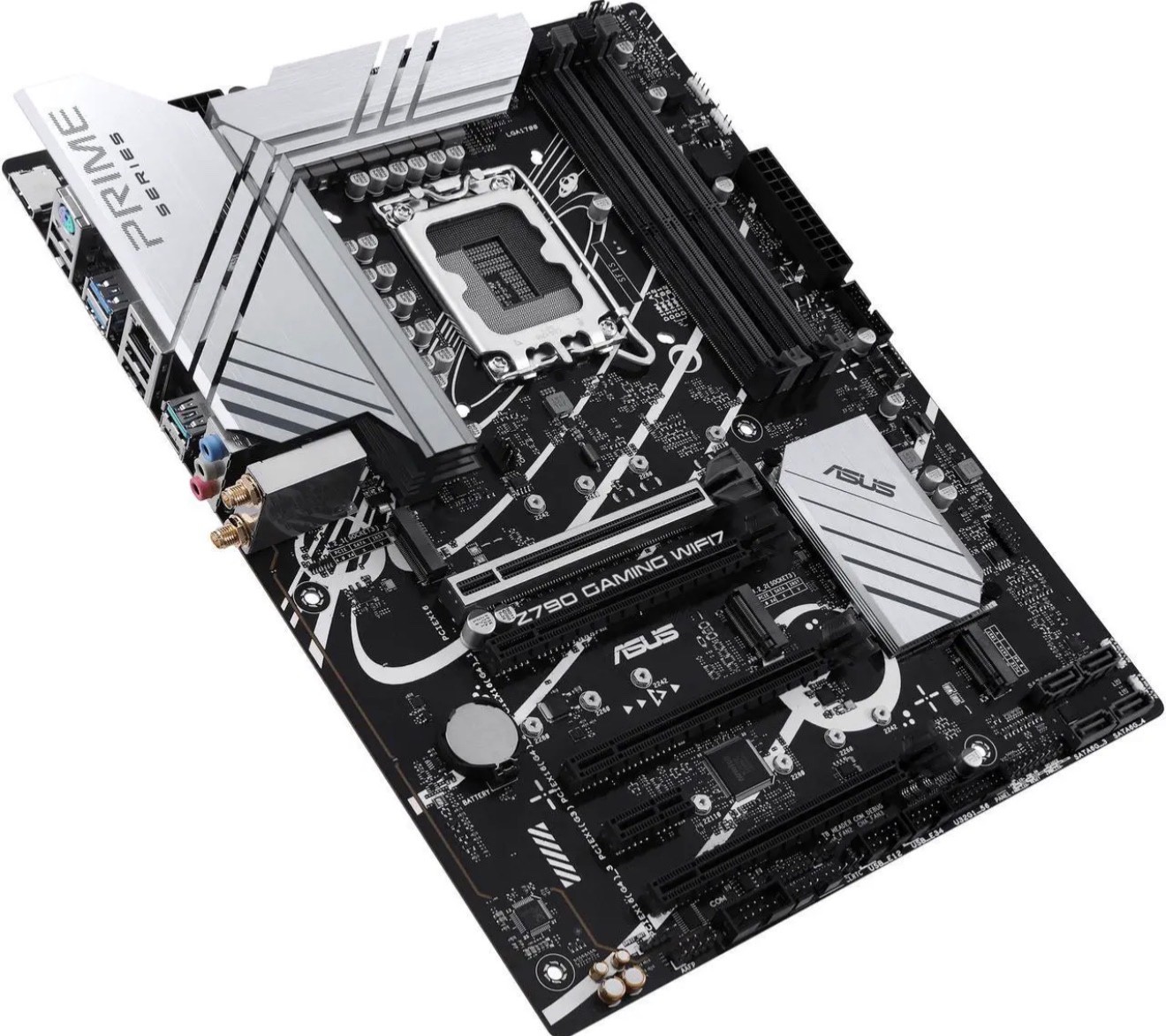

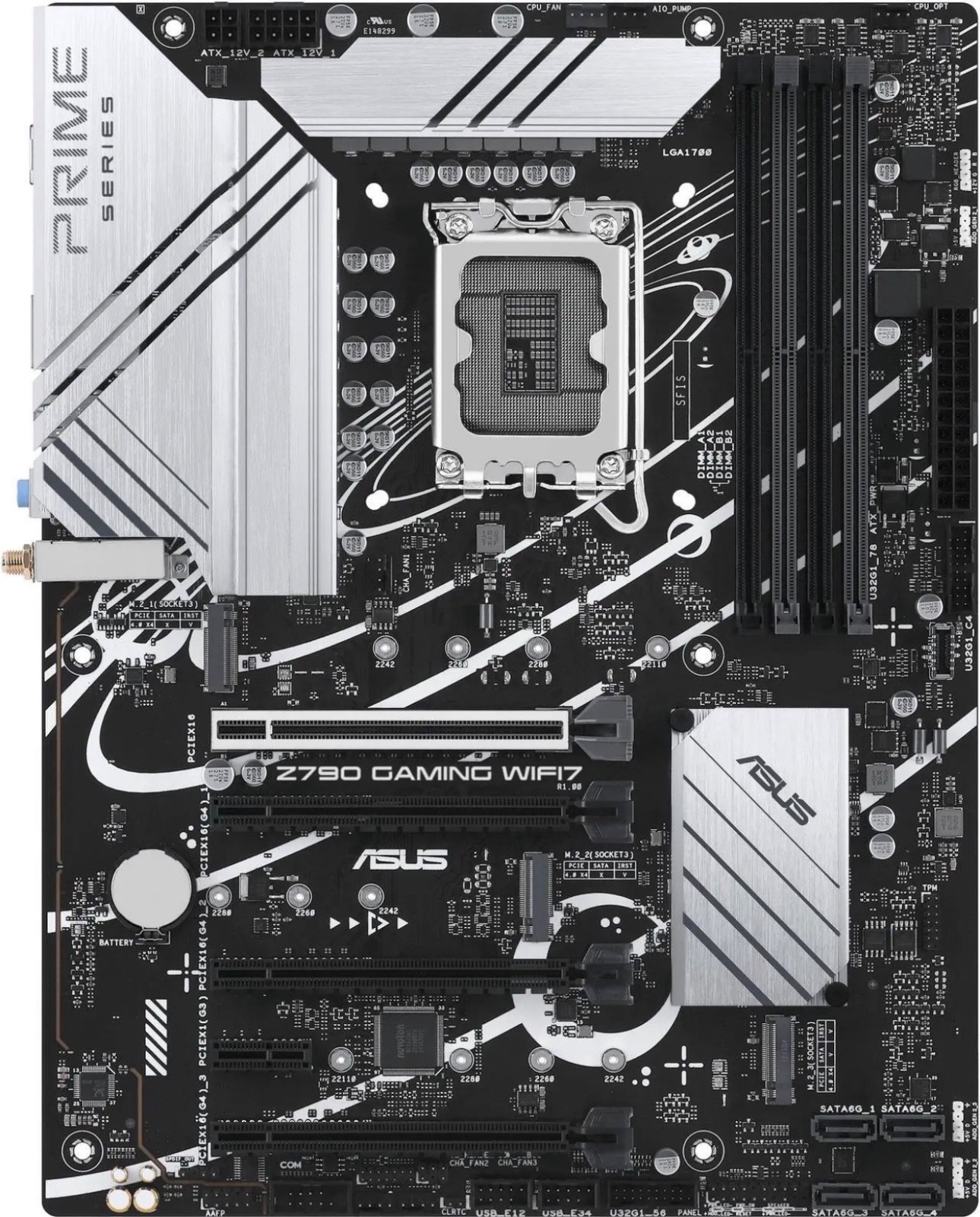

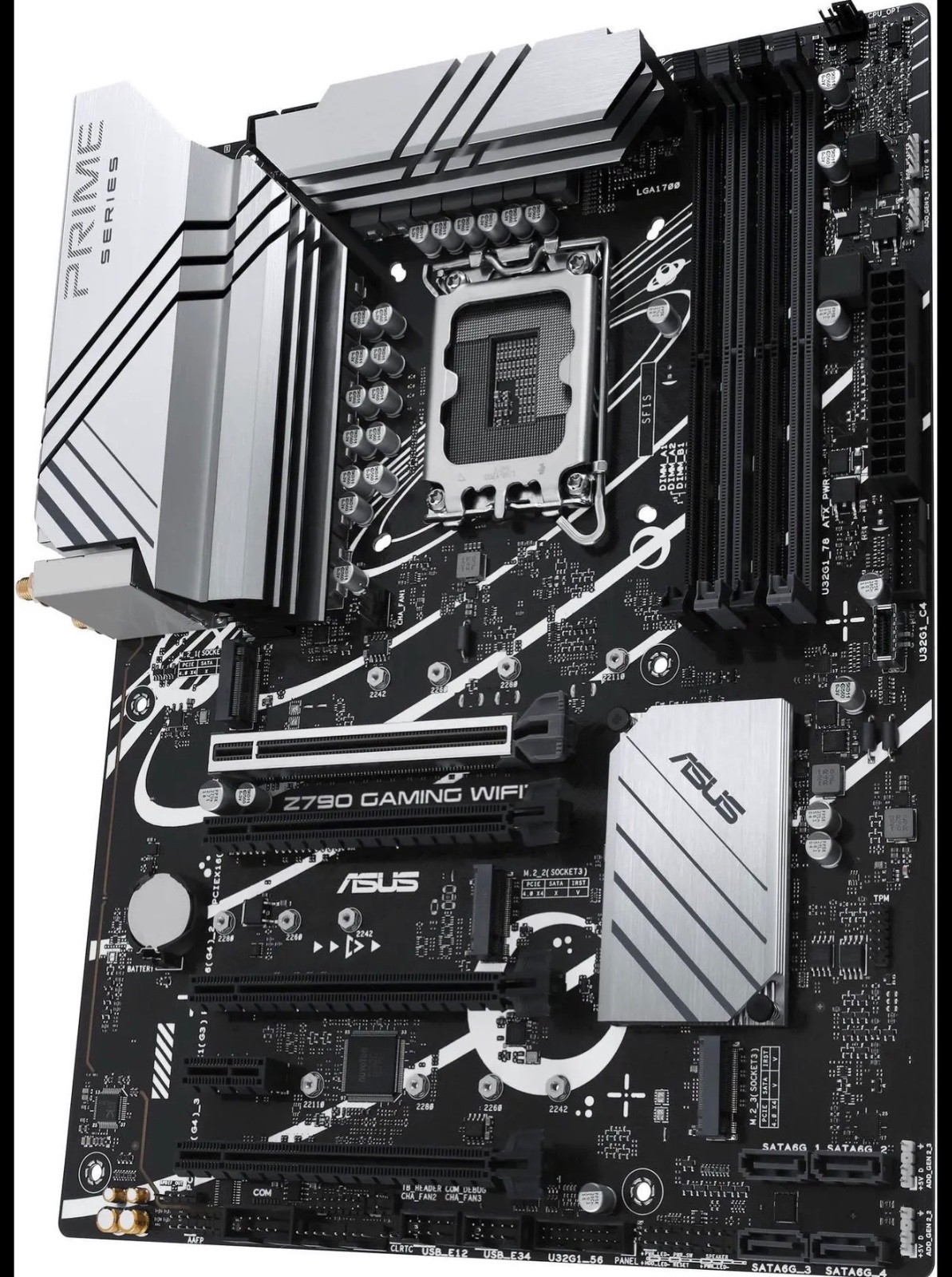

ASUS Z790 Gaming ATX Motherboard Intel LGA 1700 WiFi7
$ 25.88
Description
ASUS Z790 Gaming ATX Motherboard Intel LGA 1700 WiFi7. ModelZ790 GAMING WIFI7. CPU Socket TypeLGA 1700. ASUS EZ DIY. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 3. - ASUS UEFI BIOS EZ Mode. ASUS 5X PROTECTION III. ASUS Q-Design. ModelBrandASUS ModelZ790 GAMING WIFI7 Supported CPUCPU Socket TypeLGA 1700 CPU TypeIntel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. ChipsetsChipsetIntel Z790 MemoryNumber of Memory Slots4x288pin (DDR5) Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Maximum Memory Supported192GB Channel SupportedDual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)OptiMem II* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Expansion SlotsPCI Express 5.0 x161 x PCIe 5.0 x16 slot PCI Express 4.0 x163 x PCIe 4.0 x16 slots (support x4 mode) PCI Express x161 x PCIe 3.0 x1 slot Storage DevicesSerial ATA (SATA)Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*Intel Core™ Processors (14th & 13th & 12th Gen) M.21 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)Intel Z790 ChipsetM.22 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.23 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports M.23 x M.2 SATA RAIDIntel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Onboard AudioAudio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features - Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Onboard LANMax LAN Speed1 x Realtek 1Gb Ethernet Wireless LANWi-Fi 7*2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band***Bluetooth v5.4***** Compatible with Windows 11 or later.** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. BluetoothThe Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. Rear Panel PortsBack I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port1 x Wi-Fi Module1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port Internal I/O ConnectorsOther ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-5pin System Panel header1 x Thunderbolt™ (USB4) Header Software FeatureWindows 11Windows 11, Windows 10 64-bit Physical SpecForm FactorATX Dimensions (W x L)12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) FeaturesFeaturesSpecial Features ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- LANGuard - Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design - Q-DIMM- Q-Slot- Q-LED CoreASUS Thermal Solution- VRM heatsink designASUS EZ DIY- ProCoolAura Sync- Aura RGB header- Addressable Gen 2 headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Power Saving-Two-Way AI Noise CancelationAI Suite 3-TurboV EVO-PC Cleaner-DIGI+ VRMASUS CPU-ZMyASUSWinRARUEFI BIOSASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
