Allen Bradley VPL-A0753E-PJ12AA Kinetix VP Low Inertia Servo Motor - New In Box
$ 1290.44
Description

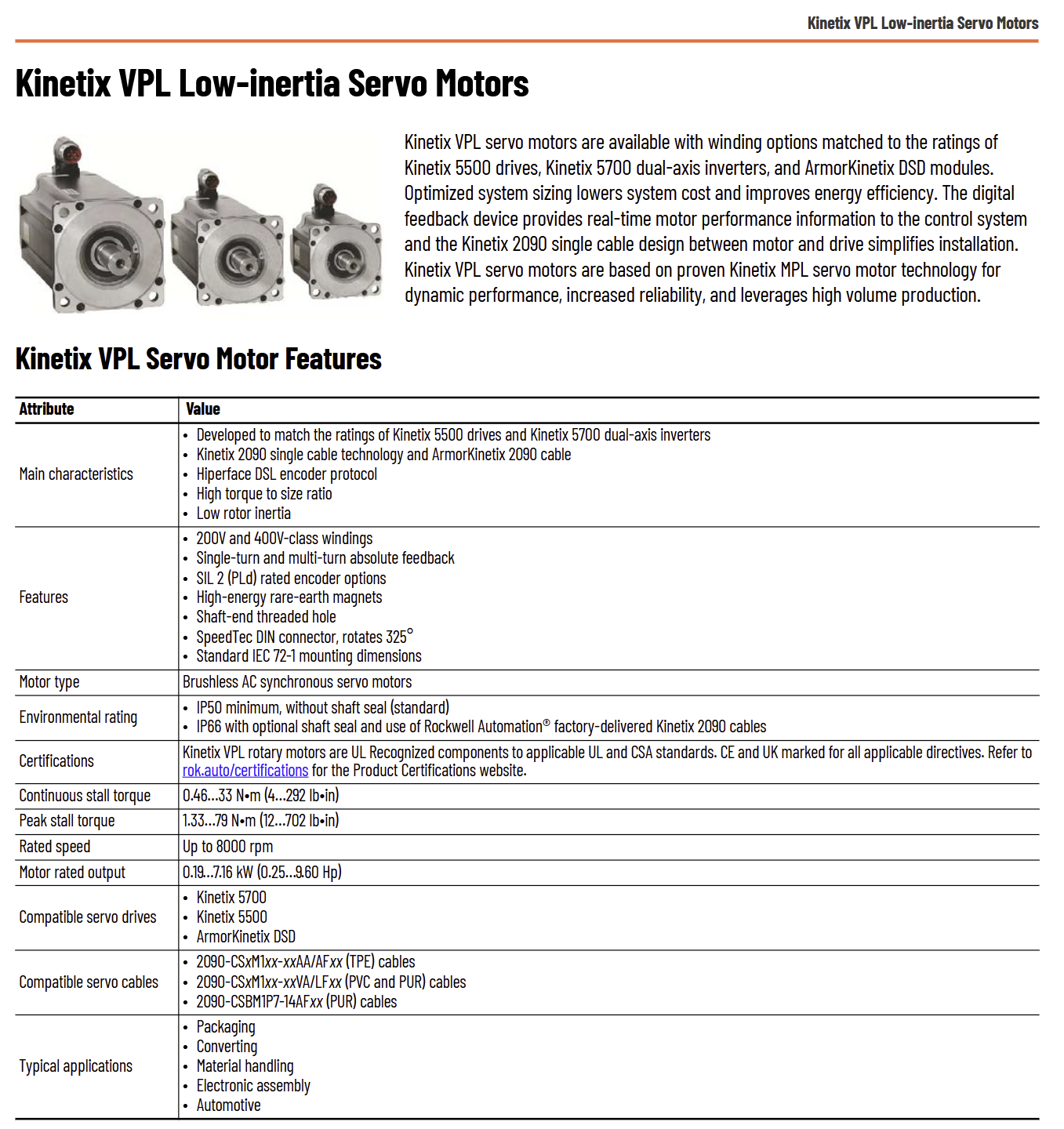

Allen Bradley VPL-A0753E-PJ12AA Kinetix VP Low Inertia Servo Motor - New In Box Allen Bradley PN-168617 Expedite service available - same day turnaround. Message for questions. Thanks for looking! Connectors SpeedTec Right Angle DIN Magnet Stacks 3 (Three) Product Family Kinetix VP Rated Speed 3500 RPM Shaft Extension Configuration Keyed Shaft 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) Rockwell Automation Publication KNX-TD001J-EN-P - August 2024 3 Kinetix VPL Low-inertia Servo Motors Kinetix VPL Low-inertia Servo Motors Kinetix VPL servo motors are available with winding options matched to the ratings of Kinetix 5500 drives, Kinetix 5700 dual-axis inverters, and ArmorKinetix DSD modules. Optimized system sizing lowers system cost and improves energy efficiency. The digital feedback device provides real-time motor performance information to the control system and the Kinetix 2090 single cable design between motor and drive simplifies installation. Kinetix VPL servo motors are based on proven Kinetix MPL servo motor technology for dynamic performance, increased reliability, and leverages high volume production. Kinetix VPL Servo Motor Features Attribute Value Main characteristics • Developed to match the ratings of Kinetix 5500 drives and Kinetix 5700 dual-axis inverters • Kinetix 2090 single cable technology and ArmorKinetix 2090 cable • Hiperface DSL encoder protocol • High torque to size ratio • Low rotor inertia Features • 200V and 400V-class windings • Single-turn and multi-turn absolute feedback • SIL 2 (PLd) rated encoder options • High-energy rare-earth magnets • Shaft-end threaded hole • SpeedTec DIN connector, rotates 325° • Standard IEC 72-1 mounting dimensions Motor type Brushless AC synchronous servo motors Environmental rating • IP50 minimum, without shaft seal (standard) • IP66 with optional shaft seal and use of Rockwell Automation® factory-delivered Kinetix 2090 cables Certifications Kinetix VPL rotary motors are UL Recognized components to applicable UL and CSA standards. CE and UK marked for all applicable directives. Refer to rok.auto/certifications for the Product Certifications website. Continuous stall torque 0.46...33 N•m (4...292 lb•in) Peak stall torque 1.33...79 N•m (12...702 lb•in) Rated speed Up to 8000 rpm Motor rated output 0.19...7.16 kW (0.25...9.60 Hp) Compatible servo drives • Kinetix 5700 • Kinetix 5500 • ArmorKinetix DSD Compatible servo cables • 2090-CSxM1xx-xxAA/AFxx (TPE) cables • 2090-CSxM1xx-xxVA/LFxx (PVC and PUR) cables • 2090-CSBM1P7-14AFxx (PUR) cables Typical applications • Packaging • Converting • Material handling • Electronic assembly • Automotive
