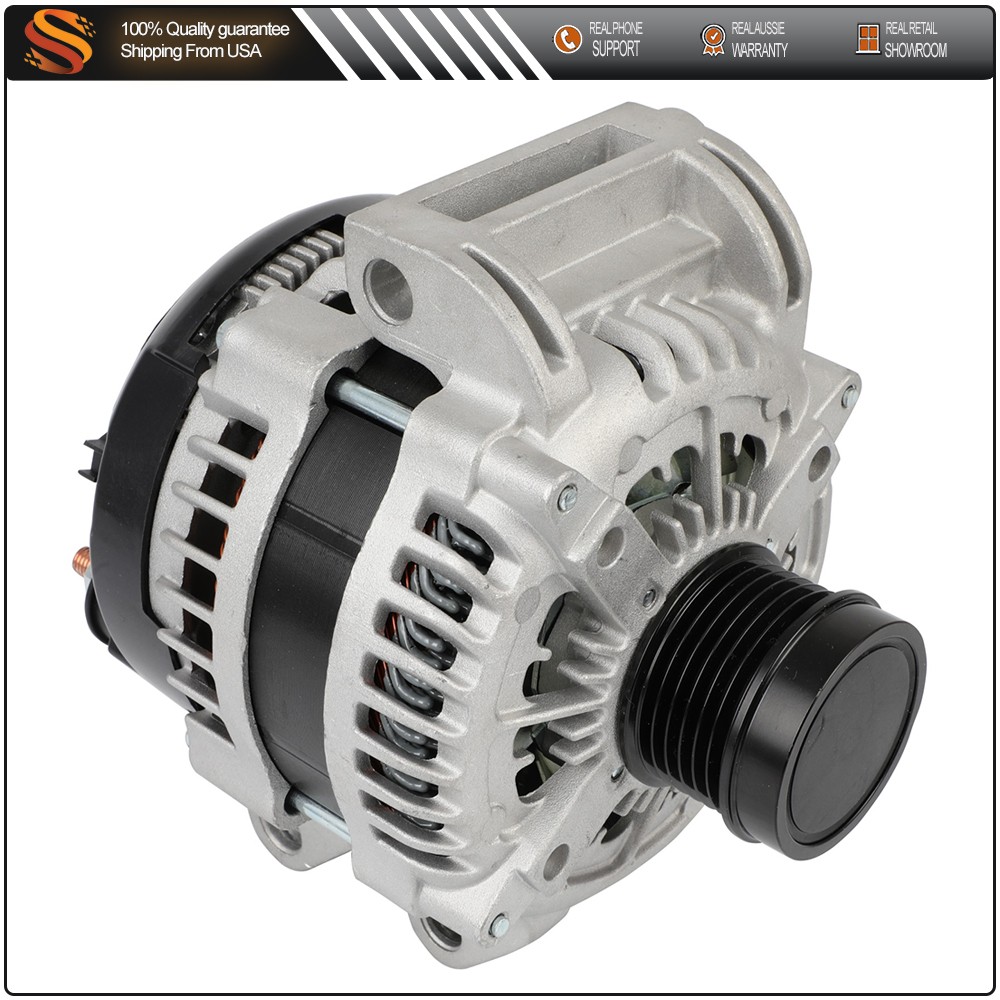

Alternator for Chrysler 300 11-23 Dodge Charger Jeep 180A 6-Groove Clutch 11575

Description

Product Specifications: AC Service Tap:No Amperage Rating:180A Brushless:No Cooling Method:Air Decoupled Or Clutch Pulley:Yes Fan Type:IF One Wire Capable:No Outside Pulley Diameter (mm):54 Plug Clock:2 Polarity:Negative Belt Type:Serpentine Belt Pulley Groove Quantity:6 Pulley Included:Yes Pulley Type:Clutch Regulator Type:ER Rotation Direction:CW Voltage:12V Pulley Class:SC6 Fitment: Autodealsparts Alternator for Chrysler 300 11-23 Dodge Charger Jeep 180A 6-Groove Clutch 11575 Product Specifications: AC Service Tap:No Amperage Rating:180A Brushless:No Cooling Method:Air Decoupled Or Clutch Pulley:Yes Fan Type:IF One Wire Capable:No Outside Pulley Diameter (mm):54 Plug Clock:2 Polarity:Negative Belt Type:Serpentine Belt Pulley Groove Quantity:6 Pulley Included:Yes Pulley Type:Clutch Regulator Type:ER Rotation Direction:CW Voltage:12V Pulley Class:SC6 Fitment: Chrysler 300 2011-2015 V8 5.7L Chrysler 300 2016-2023 V8 5.7L w/ Optional Equipment Dodge Challenger 2011-2015 V8 5.7L Dodge Challenger 2016-2023 V8 5.7L w/ Optional Equipment Dodge Charger 2011-2015 V8 5.7L Dodge Charger 2016-2023 V8 5.7L w/ Standard Equipment Dodge Durango 2011-2020 V8 5.7L w/ Standard Equipment Jeep Grand Cherokee 2011-2020 V8 5.7L WK2;w/Standard Equipment Original Part Number： 11575N, 4210007020, 04801833AB, 4801833AB, 11575, A6577S Package Contents: 1x Alternator How to Replace an Alternator： Disconnect the Battery.First and most importantly: disconnect the battery. Disconnect the Wires.Now that the battery is out of the way disconnect the wire or wires from the back of the alternator. Remove the Belt From the Pulley.Every project has a tough spot, and this is the tough spot for alternator replacement: remove the belt from the pulley. Remove Bolts.Once the belt is off just remove whatever bolts connect the alternator to the bracket and you're good to go. Halfway There.With the old alternator in your hand you're half way home. Examine the Replacement.Examine the replacement unit before reassembly and make sure it will work for your application. Reverse the Removal Steps.To complete the project just reverse the removal steps paying careful attention to belt routing and tensioning. ? ? Alternator components & their functions: Regulator.The voltage regulator controls the amount of power distributed from the alternator to the battery in order to control the charging process. Rectifier.The rectifier is used to convert current from alternating current (AC) to direct current (DC) during the charging process. Rotor.The rotor is the spinning mass inside the alternator that rotates via the pulley and drive belt system. Slip Rings.The Slip rings are used as a means of providing direct current and power to the rotor. Slip Ring End Bearing.The bearings are designed to support the rotation of the rotor shaft. Stator.The stator consists of several coils of wire wound through an iron ring. Drive End Bearing.The bearings are designed to support the rotation of the rotor shaft. Pulley.The pulley is connected to the rotor shaft and the drive belt system. Drive End Bracket. Slip Ring End Bracket.? Note: Please check the model and important parameters before purchase to avoid unnecessary after-sales problems, if you are not clear, please feel free to contact us, thank you for your cooperation! Item Specifics Brand Autodealsparts Type Alternator Voltage 12V Manufacturer Part Number AU135071TS OE/OEM Part Number 11575 Amperage 180A Manufacturer Warranty 1 Year Performance Part No Country/Region of Manufacture Unknown Finish Same as OE Universal Fitment No Vintage Car Part No Interchange Part Number 11575N, 4210007020, 04801833AB, 4801833AB, 11575, A6577S Voltage 12V Mileage More Than 100,000 miles Superseded Part Number 11575N, 4210007020, 04801833AB, 4801833AB, 11575, A6577S California Prop 65 Warning Yes AC Service Tap No Amperage Rating 180A Brushless No Cooling Method Air Decoupled Or Clutch Pulley Yes Fan Type IF One Wire Capable No Outside Pulley Diameter (mm) 54 Plug Clock 2 Polarity Negative Belt Type Serpentine Belt Pulley Groove Quantity 6 Pulley Included Yes Pulley Type Clutch Regulator Type ER Rotation Direction CW Voltage 12V Pulley Class SC6 Payment We accept multiple payment methods Shipping 1. We only ship to confirmed paypal addresses, your paypal address must match your shipping address. 2. All domestic orders will be shipped via USPS, UPS or Fedex from our US warehouse and usually arrives to your door in about 2-7 business days. 3. If you have not received your shipment within 15 days from payment , please contact us. We will track the shipment and get back to you as soon as possible with a reply. 4. Local pick up is not available. Returns All of our brand new items come with a 30-days money-back guarantee. Contact Us If you have any question, please contact us. Warning Please check carefully for the fitment before order, thank you. Autodealsparts DESCRIPTION PAYMENT SHIPPING RETURN POLICY CONTACT US Shop Category Store Home AC Compressor Mirrors Oxygen Sensor Roof Rack Engine Repair Kit Engine Air Intake & Exhaust Tonneau Cover Lawn Mower Accessories Car Tools Truck Bed Storage Box Oil Pump & Water Pump Door Handle Running Board Motor Transfer Case Motor Blend Door Actuator Secondary Air Pump Windshield Wiper Motor LED headlight Assembly Dipstick Horns complete struts fog lights Pillar Posts Fuse Holder Box winch Shocks Struts Struts & Suspension Kit & Hubs Window Visors Air suspension Fuel Injector Fuel Pump Throttle Body Window Regulator Turbo Turbocharger Window switch CV AXLE Coolant Overflow Tank Mud Flaps Bumper Side Marker Lights ignition Brake Calipers Wing and Spoiler ATV CV Axle Mass Air Flow Sensor-MAF Coilover snorkel kit Jeep lift supports Adj. Control Arm VVT Variable Valve Timing Door Lock Actuator Chainsaw Chain Car Moulding Cover Trim Steering Wheel Hole Adapter Golf Cart Accessories Motorcycle Accessories Ramps Cylinder Piston Gasket Kit Valve Cover Valve Rocker Arm Crankshaft Drive Clutch Radiator Shutter Garden Water Pump Tire Pressure Sensor Camshaft Hydraulic Lifters Dash Board Cover Fuel Tank Accessories Tensioner Sun Visor Power Steering System RV Third Brake Light Strut Mount Coil Springs Brake System Parts ◈ Brake Calipers ◈ Brake Drums & Brake Shoes ◈ Brake Pads & Brake Shoes Electric Dump Tarp Motor Clock Spring Air Dryer Power Brake Booster Leaf Spring Shackle Kit key Center Console Lid Thermostat Assembly Ballast module Cylinder Piston Kits Drive shaft Alternator Steering Rack Other Hot Item Tailgate Handle Rear Latch Cargo Door Handle for Toyota Pickup 1989-95 Outside USD 11.39 Door Handle Interior Right Passenger RH for Chevy GMC Tahoe Suburban Inside USD 12.29 Roof Rack Rail End Cover Shell Replacement For 06-12 Toyota RAV4 AX30 Wholesale USD 15.67 8x Interior + Exterior Door Handles Fits HYUNDAI ELANTRA 01-06 Left Right Side USD 31.89 Driver Side Gray Sun Visor Without Sunroof For 2012-2019 Nissan LEAF Sentra USD 25.15 New List Item Fits 99-06 VOLKSWAGEN VW GOLF CABRIO BLACK HOUSING Reflector HEADLIGHT HEAD LAMP USD 91.69 CV Axle Assy Front Side for 2003-2006 Subaru Baja Sport fits Legacy Outback 2.5L USD 70.99 Ignition Coil For Porsche 911 3.0L 2017-2019 UF641 New USD 17.39 Remote Car Key Shell for Chrysler 300 2011 2012 2013 2014 2015 2016 2017 2018 USD 12.99 For Nissan For Altima 2019-2022 Black Housing Right Headlight Assembly w/LED DRL USD 111.99 Picture Picture Picture Alternator for Chrysler 300 11-23 Dodge Charger Jeep 180A 6-Groove Clutch 11575 Product Specifications: AC Service Tap:No Amperage Rating:180A Brushless:No Cooling Method:Air Decoupled Or Clutch Pulley:Yes Fan Type:IF One Wire Capable:No Outside Pulley Diameter (mm):54 Plug Clock:2 Polarity:Negative Belt Type:Serpentine Belt Pulley Groove Quantity:6 Pulley Included:Yes Pulley Type:Clutch Regulator Type:ER Rotation Direction:CW Voltage:12V Pulley Class:SC6 Fitment: Chrysler 300 2011-2015 V8 5.7L Chrysler 300 2016-2023 V8 5.7L w/ Optional Equipment Dodge Challenger 2011-2015 V8 5.7L Dodge Challenger 2016-2023 V8 5.7L w/ Optional Equipment Dodge Charger 2011-2015 V8 5.7L Dodge Charger 2016-2023 V8 5.7L w/ Standard Equipment Dodge Durango 2011-2020 V8 5.7L w/ Standard Equipment Jeep Grand Cherokee 2011-2020 V8 5.7L WK2;w/Standard Equipment Original Part Number： 11575N, 4210007020, 04801833AB, 4801833AB, 11575, A6577S Package Contents: 1x Alternator How to Replace an Alternator： Disconnect the Battery.First and most importantly: disconnect the battery. Disconnect the Wires.Now that the battery is out of the way disconnect the wire or wires from the back of the alternator. Remove the Belt From the Pulley.Every project has a tough spot, and this is the tough spot for alternator replacement: remove the belt from the pulley. Remove Bolts.Once the belt is off just remove whatever bolts connect the alternator to the bracket and you're good to go. Halfway There.With the old alternator in your hand you're half way home. Examine the Replacement.Examine the replacement unit before reassembly and make sure it will work for your application. Reverse the Removal Steps.To complete the project just reverse the removal steps paying careful attention to belt routing and tensioning. ? ? Alternator components & their functions: Regulator.The voltage regulator controls the amount of power distributed from the alternator to the battery in order to control the charging process. Rectifier.The rectifier is used to convert current from alternating current (AC) to direct current (DC) during the charging process. Rotor.The rotor is the spinning mass inside the alternator that rotates via the pulley and drive belt system. Slip Rings.The Slip rings are used as a means of providing direct current and power to the rotor. Slip Ring End Bearing.The bearings are designed to support the rotation of the rotor shaft. Stator.The stator consists of several coils of wire wound through an iron ring. Drive End Bearing.The bearings are designed to support the rotation of the rotor shaft. Pulley.The pulley is connected to the rotor shaft and the drive belt system. Drive End Bracket. Slip Ring End Bracket.? Note: Please check the model and important parameters before purchase to avoid unnecessary after-sales problems, if you are not clear, please feel free to contact us, thank you for your cooperation! Payment We accept multiple payment methods Shipping 1. We only ship to confirmed paypal addresses, your paypal address must match your shipping address. 2. All domestic orders will be shipped via USPS, UPS or Fedex from our US warehouse and usually arrives to your door in about 2-7 business days. 3. If you have not received your shipment within 15 days from payment , please contact us. We will track the shipment and get back to you as soon as possible with a reply. 4. Local pick up is not available. Returns All of our brand new items come with a 30-days money-back guarantee. Contact Us If you have any question, please contact us. Warning Please check carefully for the fitment before order, thank you. All rights reserved.
