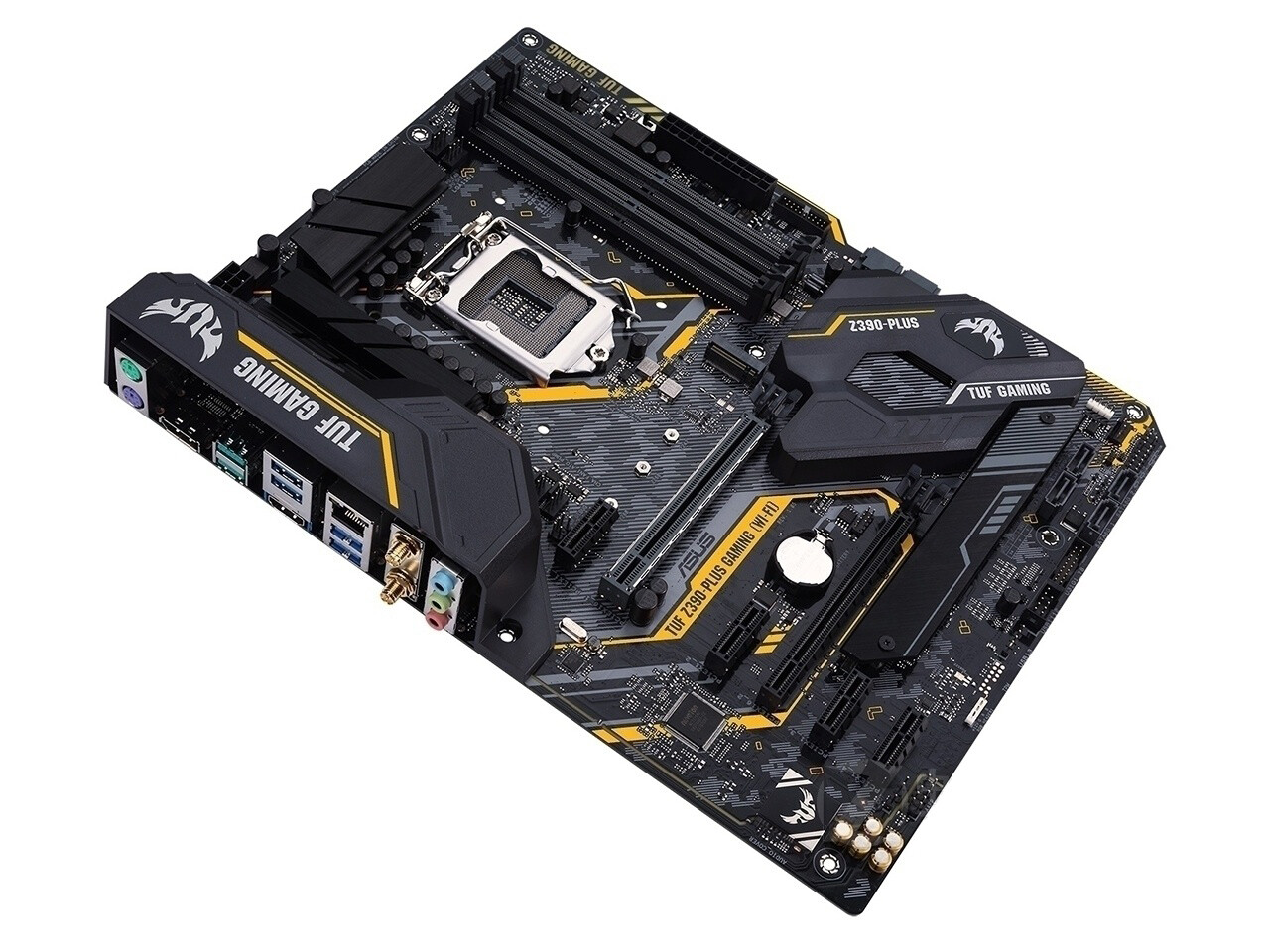

Asus TUF Z390-PLUS GAMING WIFI ATX Motherboard with Intel Z390 HDMI and DDR4 for LGA1151

Description

Dear valued buyer, thank you for viewing our page. We will provide you best service and high quality products.We promised all the Items will be tested earnestly before shipping, ensure it 100% working in orders.. If you're about our item have any concern, please don't hesitate to contact us. Since the time difference, perhaps we'll reply you late for several hours, thank your very much for your understanding. Instructions 1. Please DO NOT use fake memory, because the motherboard maybe can't support. 2. Please DO NOT use single-side memory, because some motherboards can't support. 3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect. 4. Some Can't boot problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts. Package included: Please note only the following accessories come with the mobo: 1 x motherboard 2 x SATA cables 1 x I/O back panel item introduction CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. Chipset Intel® Z390 Memory 4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * The maximum memory frequency supported varies by processor. Graphic Integrated Graphics Processor- Intel® UHD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays Multi-GPU Support Supports AMD CrossFireX™ Technology Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 4 x PCIe 3.0/2.0 x1 *1 *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. Storage Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 6 x SATA 6Gb/s port(s), gray, *3 Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card*4 LAN Intel® I219V, featuring Turbo LAN TUF LANGuard Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) Wireless Data Network Intel® Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports 2x2 MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160 Bluetooth Bluetooth® 5.0 Audio Realtek® ALC S1200A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board) Intel® Z390 Chipset : 3 x USB 2.0/1.1 port(s) (3 at mid-board) Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A 2 x Wi-Fi antenna port(s) 3 x 8-channel Audio I/O Internal I/O Ports 2 x Aura RGB Strip Header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x AIO_PUMP connector () 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Form Factor ATX ; 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Notice Terms of Sale Please read the entire listing before bidding. We do not offer cash refunds for any purchases. All sales are FINAL, we will replace per our warranty (see below). Shipping 1) Item will be shipped within 1-2 working days (business days) after full payment is received 2) To USA,CA,AU,UK,Europe,will be shipped by via air mail service,need around 10-25 days.and other countries need around 15-35 days.In case you haven't recieved the packet, please check with your local post office first, because somtimes the packet will arrive there. Duo to different country, some local post office can't offer more detailed tracking status in time, it perhaps only show the shipment infor just left china. 3) If you want to get it fast(4-7 days),Please choose Expedited shipping,It must add 20-40usd shipping fee (according to your country). 4) Please note, it maybe bring the customs tax, please understand these fees were not included in your payment, these fees will be collected by the delivery company, when sign for the packet. Please inquire your country customs office about the tax before perchasing. 5） S hipping for a long time how to do? We cannot guarantee that every time a parcel to arrive is stable. If you do not receive your item more than 40 working days, please contact us to get a refund, via Ebay message. Return Policy Dear friend, the warranty is 60 days, in case the mobo exist problem, and you want to refund or replace, plase read this before purchased. Refund: Refund can be accepted in 60 days after you signed the package. Please send back the item in original package with all the accessories in it. When you shipped back, please give us tracking number. Generally speaking,refund or replacement will be made upon receipt of the returned item. Replace: Replace can be accepted in 60 days after you signed the package. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package. Both shipping cost: The cost of item shipping back is buyer's responsibility, the resend shipping cost is seller's. Wrong order: Dear friend, I think you have thought over before bought the item. But in case you got a wrong mobo, please first check out your order form, whether we sent a wrong mobo or your ordered a wrong mobo. Please note if you order wrong, we don't accept the refund or replace. CUSTOMER SERVICE: 1）If you have any questions about the item OR your order , no matter what time please contact us via ebay Message（Or find your order and click contact seller）. When we receive the e-mail, we will reply in time on weekdays . Please make sure via the ebay message we can contact you. Our working time are from 9am to 5pm on normal working days please don't worry about anything to do business with us. 2）we sincerely do business with you. If you satisfy with our service and products, please leave us positive feedback. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better. 3）But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems. 4）All communications are handled through Email. We strive to answer all emails as quickly as possible Enjoy you r shopping in pc*one*world
