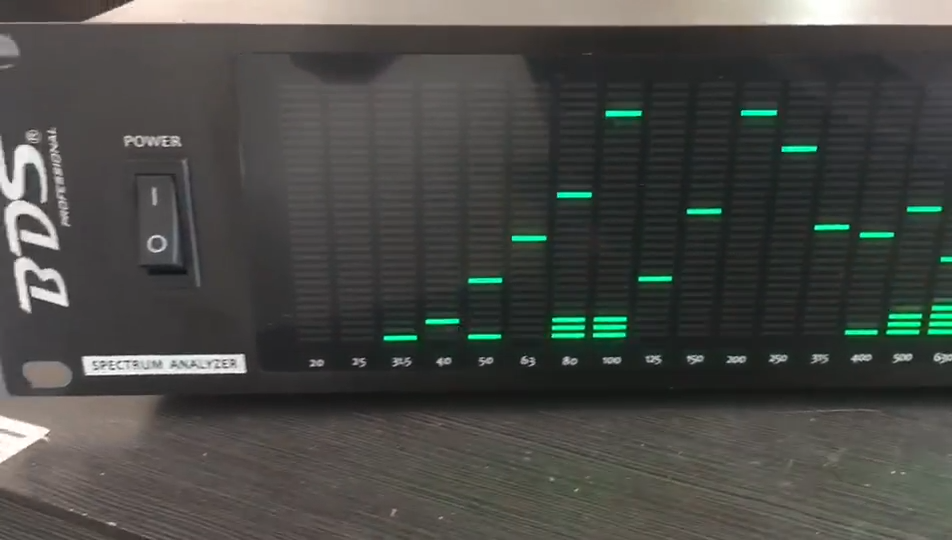

BDS PP-131 31-Segment Digital Audio Spectrum Analyzer VU Meter Display
$ 181.93
Description
BDS PP-131 Digital Audio Spectrum Analyzer Display Indicator VU Meter 31-Segment Features: 1. Designed by Taiwan BDS company 2. Standard 2U thin and ultra-small chassis size 3. Using high-performance DSP chip control 4. Absolutely accurate real-time 31-band frequency point level 5. A total of 930 lights dynamic module display with integrated LED 6. Each frequency point uses 30 lights to display the level signal 7. The panel is simple, easy to control, durable and stable 8. Both input and output support Canon and Lotus interfaces 9. Real display and smooth display mode setting 10. A variety of graphics display switching 11. PHT (PEAK HOLD TIME) peak dwell time setting 12. MFT (MAIN FALL TIME) main spectrum fall time setting 13. Stereo sampling, which can be displayed independently and simultaneously on the frequency spectrum 14. Microphone input interface with volume adjustment 15. Automatic gain increase and decrease function 16. Real-time input level display dual 31 segments 17. This machine uses a lossless through synchronization circuit 18. The panel supports spectrum light brightness adjustment 19. Support input level sensitivity adjustment 20. AC full voltage power input Specification: - Power supply: AC 90V-260V (50HZ / 60HZ) - Power consumption: 10W-15W - Input interface: XLR, RCA - Input sensitivity: 0V-1V - Output interface: XLR, RCA - LED module: 30 points of light-emitting diodes*31 segments, a total of 930 points - LED color: Green/Blue/White (optional) - Panel color: Black/Silver ((optional) - Size: 483*88*130mm - Net weight: 2.5KG
