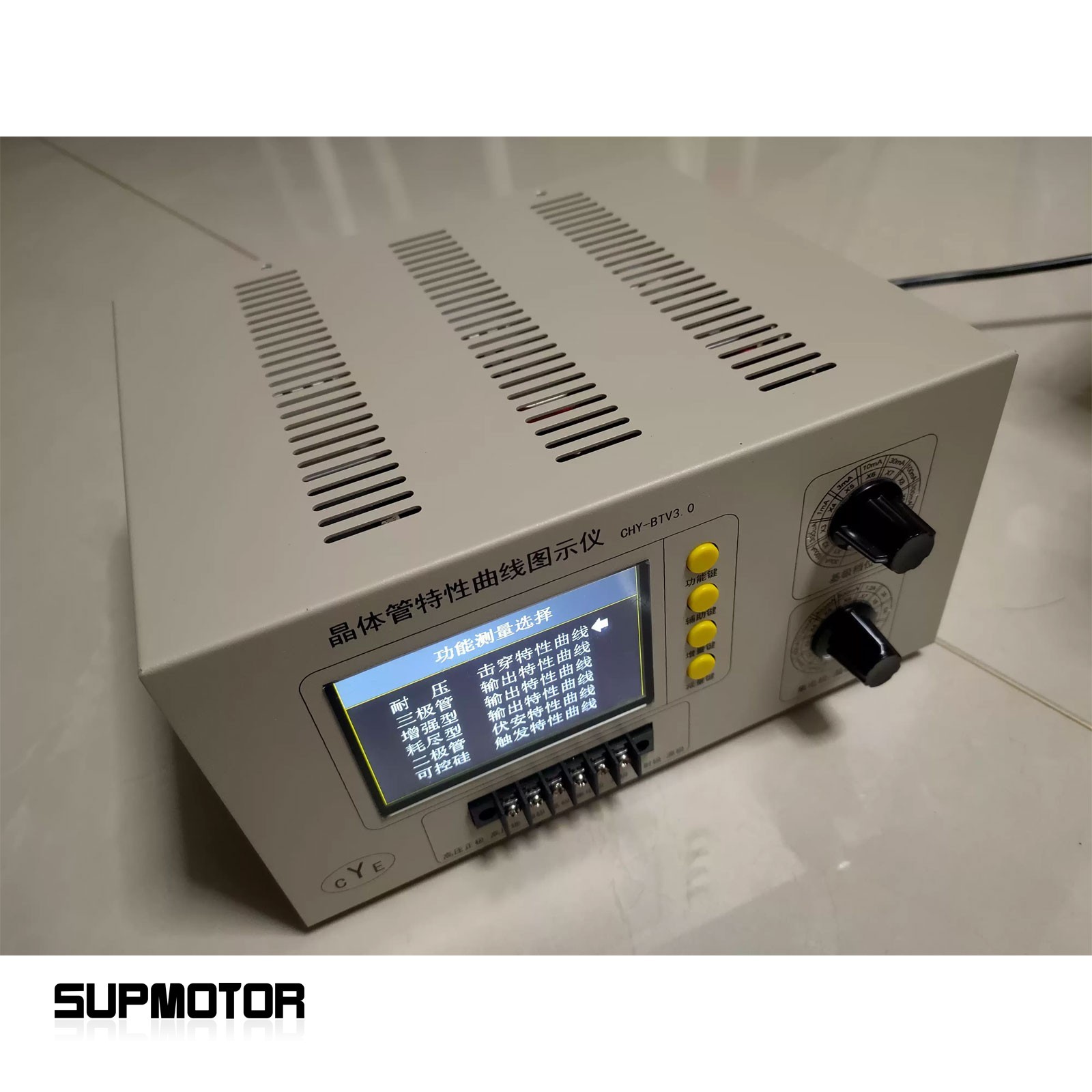

CHY-BT3.0 Transistor Tracer Transistor Characteristic Curve Tester w/ Transistor
$ 324.77
Description
Description CHY-BT3.0 Transistor Tracer 4-inch HD SPI Color Screen Transistor Characteristic Curve Tester with Transistor Testing Socket Features: - Non polarity conversion switch, select polarity N or P through the menu, scan and test all four quadrants at once when measuring the thyristor, and display the positive and negative polarity of the diode characteristic curve at once. The high-voltage withstand voltage test linearly increases from 0V to 2000V. If the current exceeds the set value during testing, it indicates breakdown and the scanning voltage becomes 0. All test curves are displayed with corresponding voltage and current values, and relevant parameters are automatically calculated and displayed on the screen without the need for grid counting. Specifications: - The working power supply is 220V input, and the internal working voltage of the machine is supplied by dual 24V 20A positive and negative power supplies. - Product size: 240 x 120 x 210mm; display screen: 480x320 resolution, 4-inch high-definition SPI color screen. - The maximum voltage withstand test is 2000V, with three current levels: 0.5mA, 1mA, and 2mA. - Maximum base current of 1000mA and minimum current of 30UA. - Collector/drain current maximum value 20A, minimum value of 12MA. - Testing of triodes output characteristics with a scanning period of approximately 114ms for a single cluster and 1140ms for a full scan. - MOS tube enhanced output characteristic test scan cycle: single cluster about 38.5ms, full scan 934ms. - The depletion type output characteristic curve of JFET tube has a scanning period of about 36ms for a single cluster and 500ms for a full scan. - The maximum scanning time for voltage withstand test is less than 650ms. - Unidirectional thyristor scanning time of 500ms, bidirectional four quadrant scanning time of 220ms. Package Included: - 1 x Tester - 1 x Testing Socket Payment Terms 1. We accept PayPal,Payoneer,Visa Card,Google pay,Credit card etc. 2. We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. Shipping Terms 1. We will process the order within the handling time ,if you have any questions, please contact us via eBay message or email. 2. For remote regions of DHL/FedEx..., extra shipping costs might be charged. Usually it costs about 30USD-50USD. We will contact you if shipping company informed us your address belongs to remote area. Thanks for your understanding. Return Terms If you receive the item that not satisfied or defective, please do not open case and kindly notify us within 30 days. We will guide you the returning process for replacement or refund. Custom Duties & Taxes 1. It is buyer's responsibility to cover the import duties, taxes.We do not charge any taxes and fees, and the possible taxes and fees will be collected by the platform or by third parties such as customs and carriers. 2. Please check with your country's customs office and inform us what/how much should declare before shipping. Feedback 1. Please kindly leave us a positive feedback and 5 star DSR if you satisfied with our product and service. Please feel free to contact us firstly if you have any problem with your order, we are responsible and credible seller and will solve the issue it for you asap. 2. If you are dissatisfied for any reason, please don't be quick to leave us neutral or negative feedback. We work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. On Aug 28, 2025 at 20:21:48 PDT, seller added the following information:
