For Semi Trucks Bus RV Caravan 12V 12000BTU Truck Cab Air Conditioner Split AC

Description

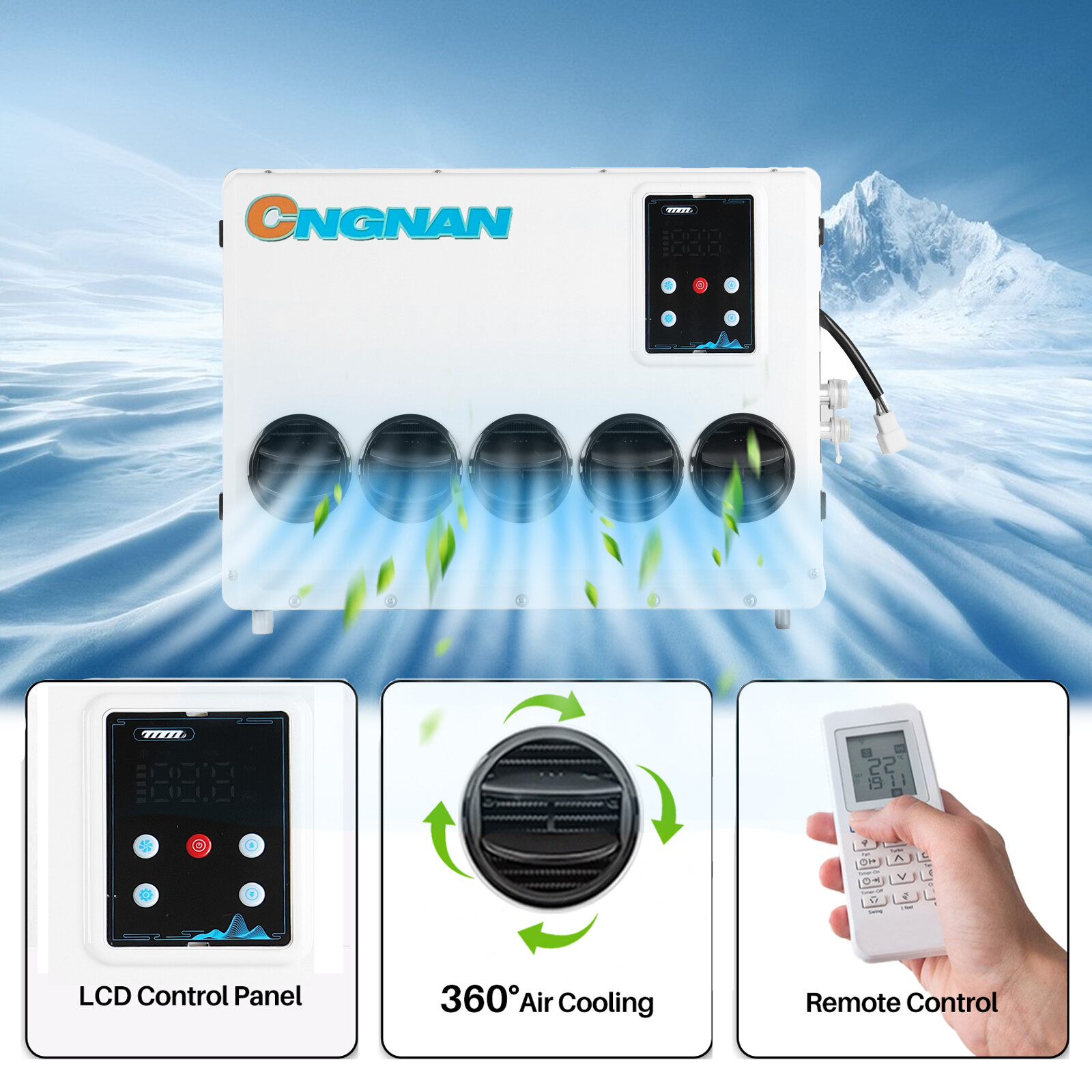

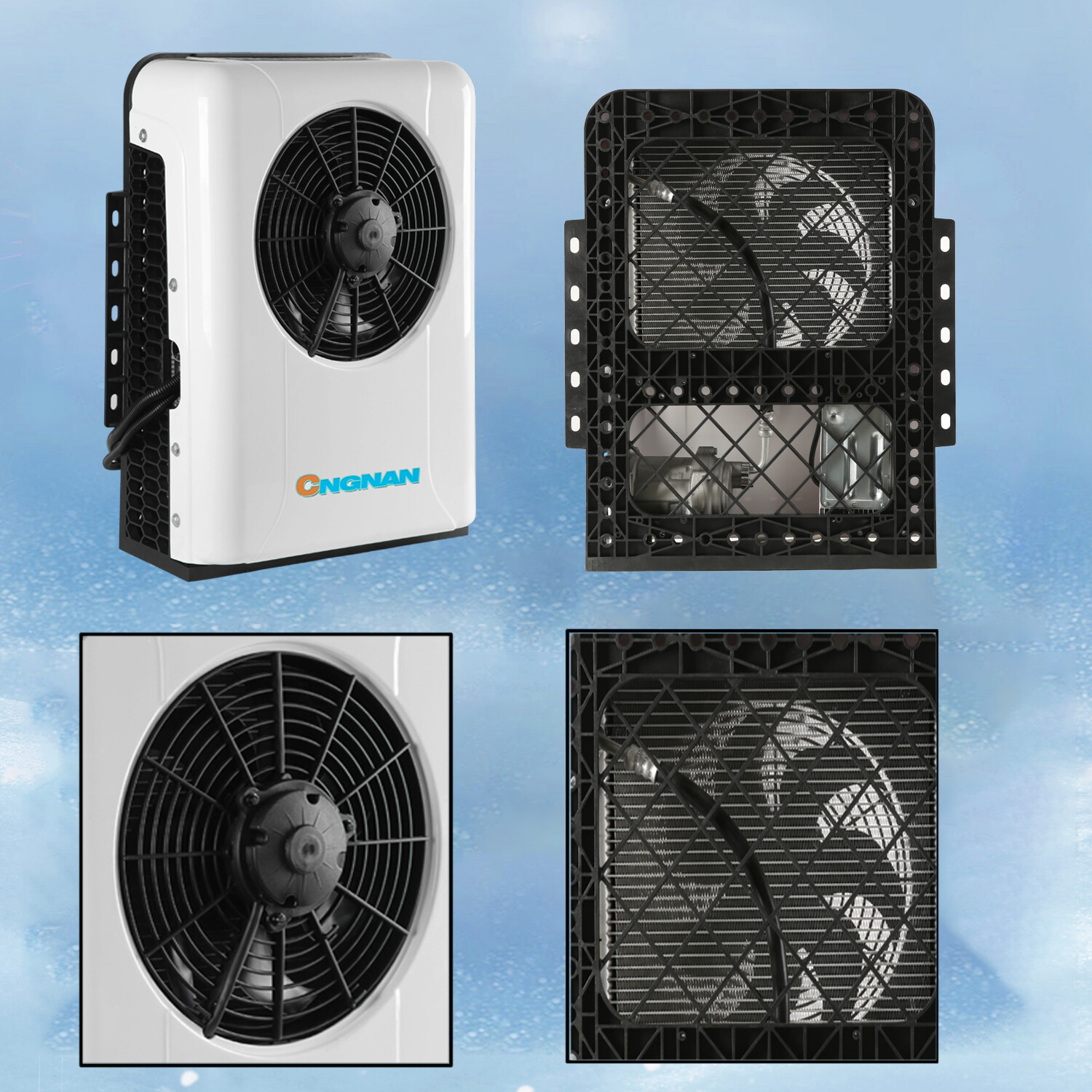

Store Categories Store Categories Other 12000 BTU 12v Split AC Truck Cab Air Conditioner For Semi Trucks Bus RV Caravan Product Description What is truck parking air conditioner and why choose it?: Economic and Envi ronment Friendly - The 12V Mini Split is able to be provided energy from either engine or additional battery which helps save up to approx. $6,552/Year. It keeps running at low noise even when the car engine is off. 20CC Compressor Rapid Coolin g - Equipped with 20CC scroll compressor, the motor rpm up to 3000-speed which cool down the interior temperature in just 8 minutes. Mini Split AC fast Cooling in hot Summer, Say goodbye to sweating. Variable Frequenc y Inverter Cooling - 12V Mini Split Air Conditioner adjusts its operating frequency according to the surrounding temperature, hence reducing energy consumption. The inner unit is equipped with an ultra-quiet mini evaporator, it controls temperature intelligently and operations below 60dB to create a comfortable environment 12V DC Power Supply & Low Voltage Protection - The 12 volt air conditioner cuts off automatically to stop the battery from running out power, which ensures the car could start as usual. There are over-voltage and over-current protection as well, safe and worry-free! Durable Build & Long-Lasting Quality - Made from sturdy ABS, the shell enjoys excellent resistance to deformation and corrosion, our Mini Split AC ensures long-lasting durability. The package includes int ernal and external units with both accessories and instructions, ensures a quick and easy installation. Truck Driver's P artner - Indoor Unit Size: 18*14*6.5 inch; Outdoor Unit Size: 19*8*26 inch( , ). Fits Trucks, Semi Trucks, Cabover Semi Truck, Container Semi-truck, Tractor-Trailer, Boats, RVs, Vans, Excavators, Passenger Cars, Agricultural Vehicles, Engineering vehicles etc. Product advantage : Light and thin appearance, saving space 100% battery driven, save fuel consumption and save space with compact design The outdoor shell is made of nylon plastic and polycarbonate plastic mixture. Has stronger toughness,Good rust prevention and No color fading performance After strictly water pouring test,No water penetration. Independent production of the electric scroll compressor.High refrigeration efficiency, low noise, low energy consumption, low failure rate. Super condenser, more superior heat dissipation. High quality evaporator, stronger refrigeration. Digital frequency conversion control, more efficient and more energy saving. Use energy saving mode when you sleep at night,It can run continuously 6 to 8 hours. Use super mode in hottest hours, cooling rapidly and stronger air supply. Double insulation,noise reduction,more comfortable. Widely used,easy to install. It is famous because of its: High Cooling Capacity & Reliable Performance Suitable for Most Place in the World; Stream Line Design to Apply All Kinds of Van & Mini Bus; Environment Friendly; Cheap Price with High Quality; ISO 9001, CE & TS16949 Certification; 12 Months Warranty Time After Delivery. S pecification : Current (A)：60A-80A Rated power：960W Cooling capacity：1000W-3000W Refrigerant：R134A 600g (Not include) Oil：90ml-120ml POE68 Circulating air volume: 600m³/H Range of speed：1000-3000 size: Outdoor unit size：660*490*210 (mm) Indoor unit size：450*330*160 (mm) Package includes: 1 x Air Conditioner Set 1 x Product Manual Attention When the equipment opens, the air outlet temperature is displayed by default. The outlet temperature setting is the standard of the compressor shutdown. When the outlet temperature is less than or equal to the setting temperature, the compressor will stop working. After the compressor stops working, if the outlet temperature rises up to 3 degree higher than the setting temperature, the compressor will start and refrigerate. After the equipment starts, in some situations, if the compressor need to be restarted after closing, the equipment will automatically control to wait for 30 seconds to protect the compressor. The starting current of 12V air con ditioner shall reach 80A. Before purchasing, please confirm whether the battery meets the requirements. Before adding refrigerant, vacuum treatment (15-20 minutes) is required, and then add refrigerant. There is no refrigerant inside the air conditioner, so R134a/600g should be added. Pressure gauge value: low pressure 35psi, high pressure 140-180psi. Installation Steps Install the external machine: remove the casing, mark the drilling position, use an 8mm drill to drill holes, use a riveting tool to fix the rivet nut at the drilling point, install shock pads and sleeves at the holes of the external machine, and fix the external machine to the car . Install the expansion valve: remove the iron sheet at the position of the expansion valve of the evaporator, and fix the expansion valve to the evaporator. The two black screws correspond to the two holes, so there is no need to worry about wrong installation. Then wrap it in black cotton wrap. Install the indoor unit: first install the wooden board to the indoor wall, and then install the evaporator on the wooden board. Install high and low pressure pipelines: first open a (50mm) hole in the car, and then install the rubber cover with three holes. The thick pipe is the low pressure pipe and is connected to the compressor. The thin tube is a high pressure tube and is connected to the condenser. Then connect the other end of the high and low pressure pipes to the holes corresponding to the expansion valve of the indoor unit, use long black screws and iron sheets to clamp the aluminum joints, and tighten the screws. Install the connection line: connect the connection lines of the internal and external units, plug the power cord plugs into each other, and connect the drain pipe of the evaporator. Vacuuming/Adding refrigerant: It needs to be vacuumed for 15-20 minutes, and then add refrigerant R134a/600g. The refrigerant can be added according to the pressure value. Generally, after the R134a refrigerant is injected into the air conditioning system, the pressure at the low pressure port is 35psi, and the pressure at the high pressure port is 140-180psi. Connect the power cord: Connect the power cord to the battery, pay attention to the positive and negative poles of the battery, do not connect them wrongly, + positive / - negative. It is forbidden to connect it to the power-off switch and the power switch. Turn on the air conditioner: Drive the air conditioner to see if it works properly. If the current is insufficient, the refrigerant is too much or not enough, the control panel will display a code, which can quickly troubleshoot. The Main Reasons Affecting The Cooling Effect After installation, be sure to measure the high and low pressure, and controlthe high pressure at about 14Kg (ambient temperature)At about 32'℃ ), it is best to control it below 14Kg when testing indoors or atnight, otherwise, the pressure will rise very high when the temperature is high,which will make the refrigerant temperature too high and affect therefrigeration effect. Be sure to use genuine R134a refrigerant lt is recommended to use Juhua,sanmei and Jin long regular products. Use genuine R134a hose, otherwise the refrigerant and refrigerant oil willdeteriorate. The wiring should be thick The line from the battery to the compressor canuse 10 square lines below 2 meters, 2-5,use 16 square lines for meters Use 25 square lines over 5 meters Should be collected between multiple batteriesuse 16 square lines 10 square lines are used between the additional generatorand the battery(Note: because of the large curent of the electric compressorthe line loss will be great if the line is thin Please follow the requirements ofthe wiring diagram.) Use the battery after it is fully charged every time as much as possibleRunning at low power will reduce the speed of the compressor and affect theeffect. Vacuum must be in place during installation, because the electriccompressor is sensitive to moisture and air, and it is required to vacu umize athigh and low pressure at the same time, and it must be pumped to above -0.098 for more than 20 minutes Maintain pressure for 10 minutes to ensurethat there is no leakage in the system before adding refrigerant. The expansion valve should not be too large (1.2-1.3 cold tons), and theevaporator should not be too large The above two items can be adjusted bychecking the suction pressure, and it is best to control the suction pressure at 2.3~3.2Kg(when the ambient temperature is about 35℃,the compressorshell temperature should be lower than the suction end at 20'C) The shorter the pipeline connection, the better In addition, the heatinsulation layer should be added outside the pipeline from evaporator tocompressor. Payment Policy Shipping Policy Returns Policy Contact us Payment Policy We accept PayPal only. Payment must be cleared within 3 business days after placing the order . Shipping Policy 1.We will process your order within the specified time, please be patient； 2.Normally,we will spot check whether the logistics is normal, and we guarantee that all orders have been sent out. If you have not received your goods for a long time, please contact us in time, we will be responsible for you to solve the problem. Returns Policy 1.Return is accepted within 30 days after the buyer's receiving the item. 2.If you need return, let us know the detailed problem and send us some pictures for confirmation. Then get a address for return or refund .But we don't accept artificial damage of the items. 3.Manufacturer's limited Warranty for defective items. Contact us 1.I f you received your item find there are something wrong or loss something,please don't worry,just feel free to contact us , We have been a professional eBay seller for years. 2.Hopefully you can leave positive feedback when you receive your items. If you do, I will be happy all day. If you have any problem with the product, please do not hurry to leave a negative feedback clearly what the problem is and send photo together,we will reply you within 24 hours, of course we will actively solve your problem to get your satisfaction, thank you ! Copyright © 2023 Dianxiaomi
