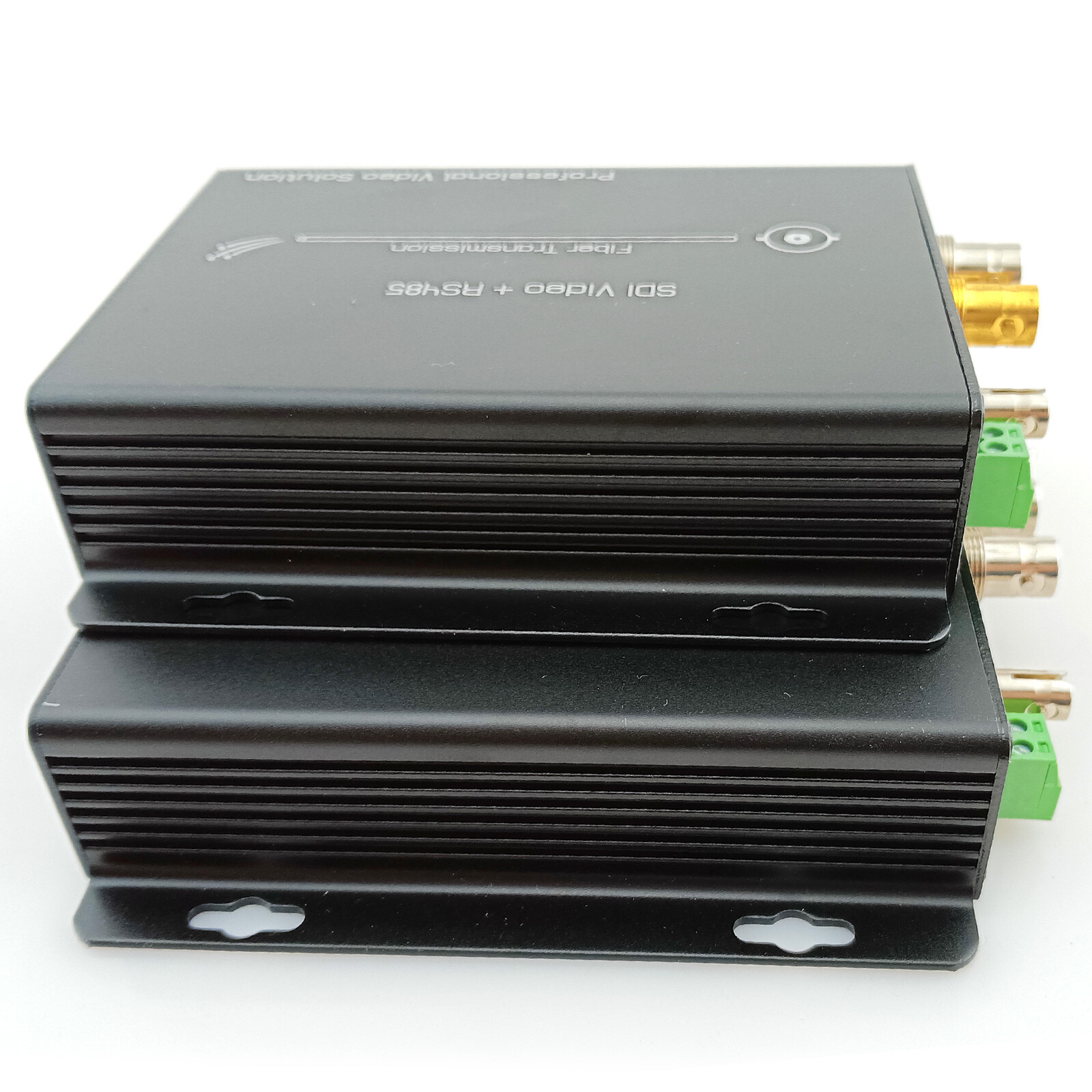

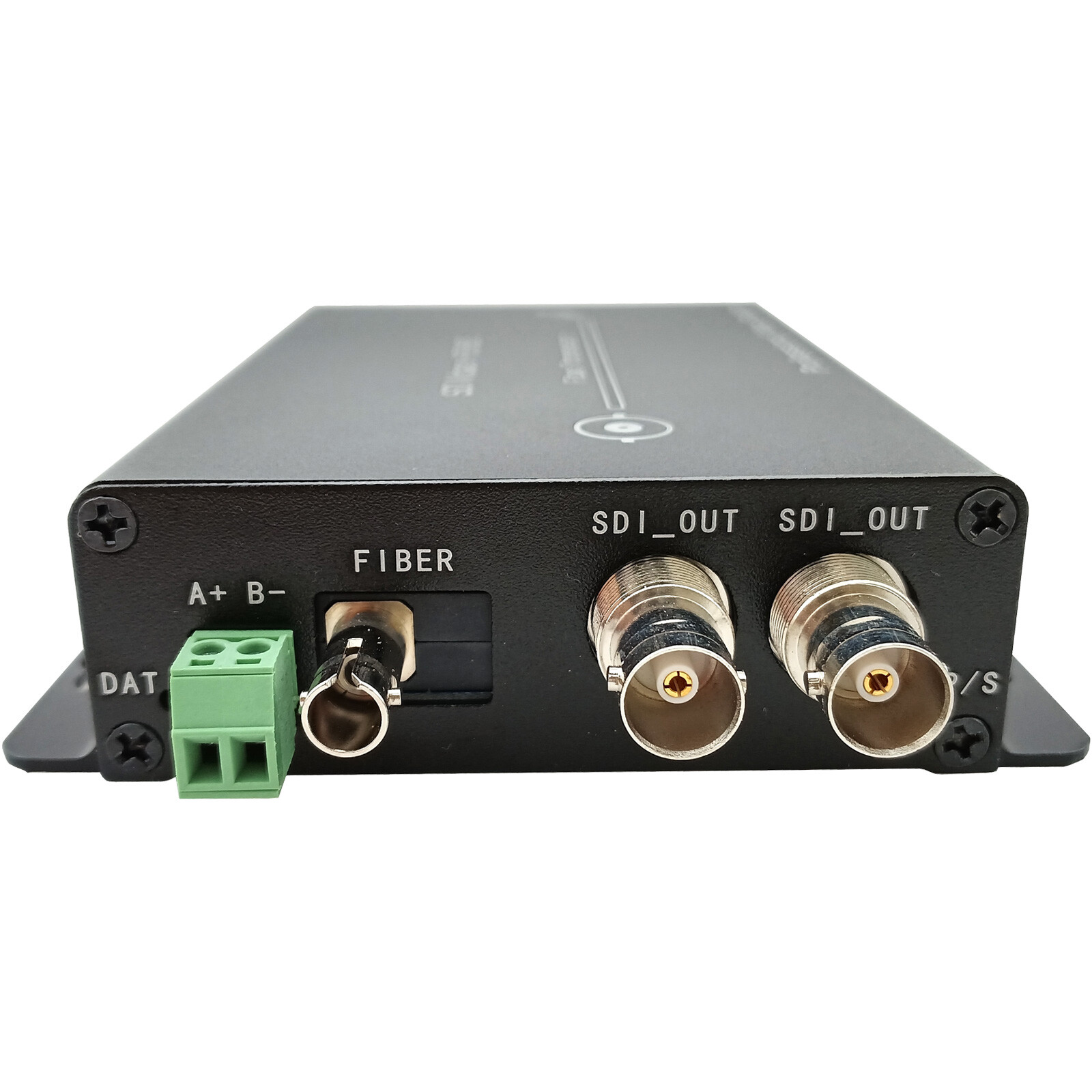

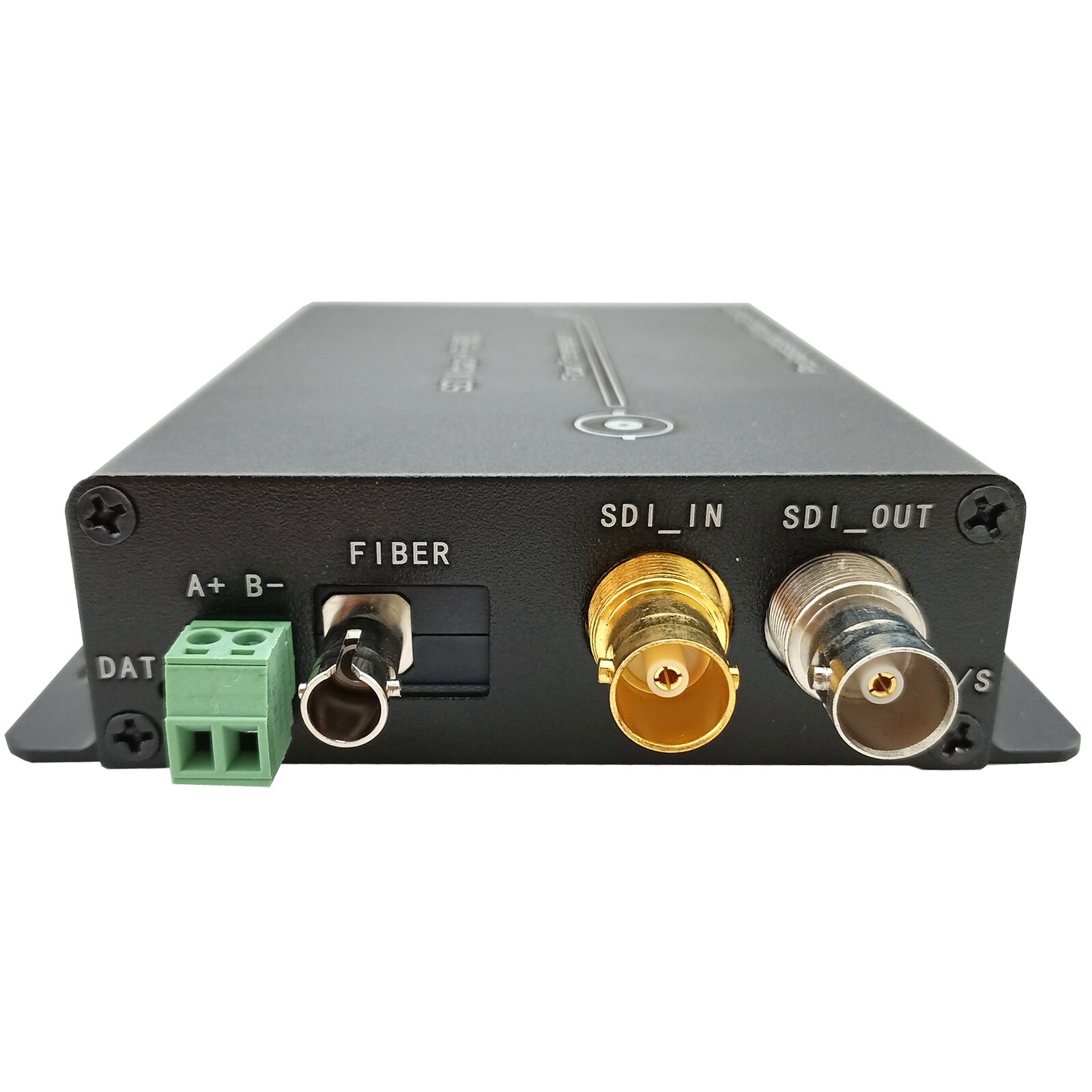

HD-SDI Extender ST Fiber Optic Converter 20KM with Video Audio and RS485 Support
$ 202.17
Description
This HD-SDI fiber optical converter is for end-user practical use like DVB return and production, On-site production, DVB-ASI transmission, News gathering, Live broadcast signal transmission, Remote studio, Universal digital video transmission business... etc. Note: This converter is NOT for any lab testing purpose Please use our provided power adapters The one with golden BNC is transmitter Packing List (bulk pack): 2 x Transmitter (ST single mode) 2 x Receiver (ST single mode) 4 x Power adapter Features Extend HD/ SD SDI over single ST fiber cable, max resolution 1080p30 Max transfer distance up to 20KM HD-SDI loop outputs on both transmitter and receiver RS485 data feed-back (single direction) LED light for working status Metal shell and compact size Transmitter/ Receiver size: 98 x 84 x 25mm (3.86 x 3.31 x 0.98 inch) Specifications: Video TV signal standard DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s to 1.485Gb/s) SMPTE 424M, SMPTE 292M, 259M, 297M, 305M, 310M, M2S Reflection loss >15DB Balance >100M@2970Mbps, Belden 1694A cable >200m@1485Mbps, Belden 1694A cable >350m@270Mbps, Belden 1694A cable HDSDI input 1 HDSDI output 2 Connector 75Ω BNC Optical Number of Fiber 1 Fiber mode Single Operating wavelength signal 1310nm, data 1550nm Reflection loss > 15dB: 1550nm Jitter < 0.2UI Connector ST (9/125) Signal level 800mV nominal The rise / fall time 200ps nominal Overshoot < 10% amplitude Electrical Operating temperature -25℃ to 70℃ Power supply voltage 1A@12VDC Power consumption 2W EU EMC index EMI/RFI with FCC Part 15 Class A Average time between failures > 100000 hours Shipping Payment Returns About We offer FREE shipping to the USA, and charge small shipping fee for other countries. We do not provide pick-up service. We only ship to your eBay registered address. Make sure it is correct and deliverable. Handling time is 3 business day after payment cleared. Estimated delivery time: US/ CA 8-15 days, EU 10-30 days, Others 10-45 days. Time may be longer due to Customs clearance, peak seasons, or severe weather. We accept eBay approved payment methods. We never responsible for Customs duty or VAT. Return (in its unused condition) for refund is accepted within 60 days after item delivered. Contact us for RMA number. Confirmed faulty items/ DOA will be replaced or refunded. Accessories, or damaged by human error are not under warranty. Please contact us by email if you have problem with your items. QAREQU was founded by a team of forward-thinkers in 2017. The journey began with a simple yet powerful idea: to empower individuals and organizations with tools that unlock new realms of possibility. We start to craft products that blend functionality, reliability, and value-pricing. Our flagship offerings include HDMI microscope cameras, LCD controllers, and WiFi antennas. Your positive feedback and 5-star rating is appreciated if you are satisfied, it gives us encouragement and helps us do the best to you. copyright © qarequ.video
