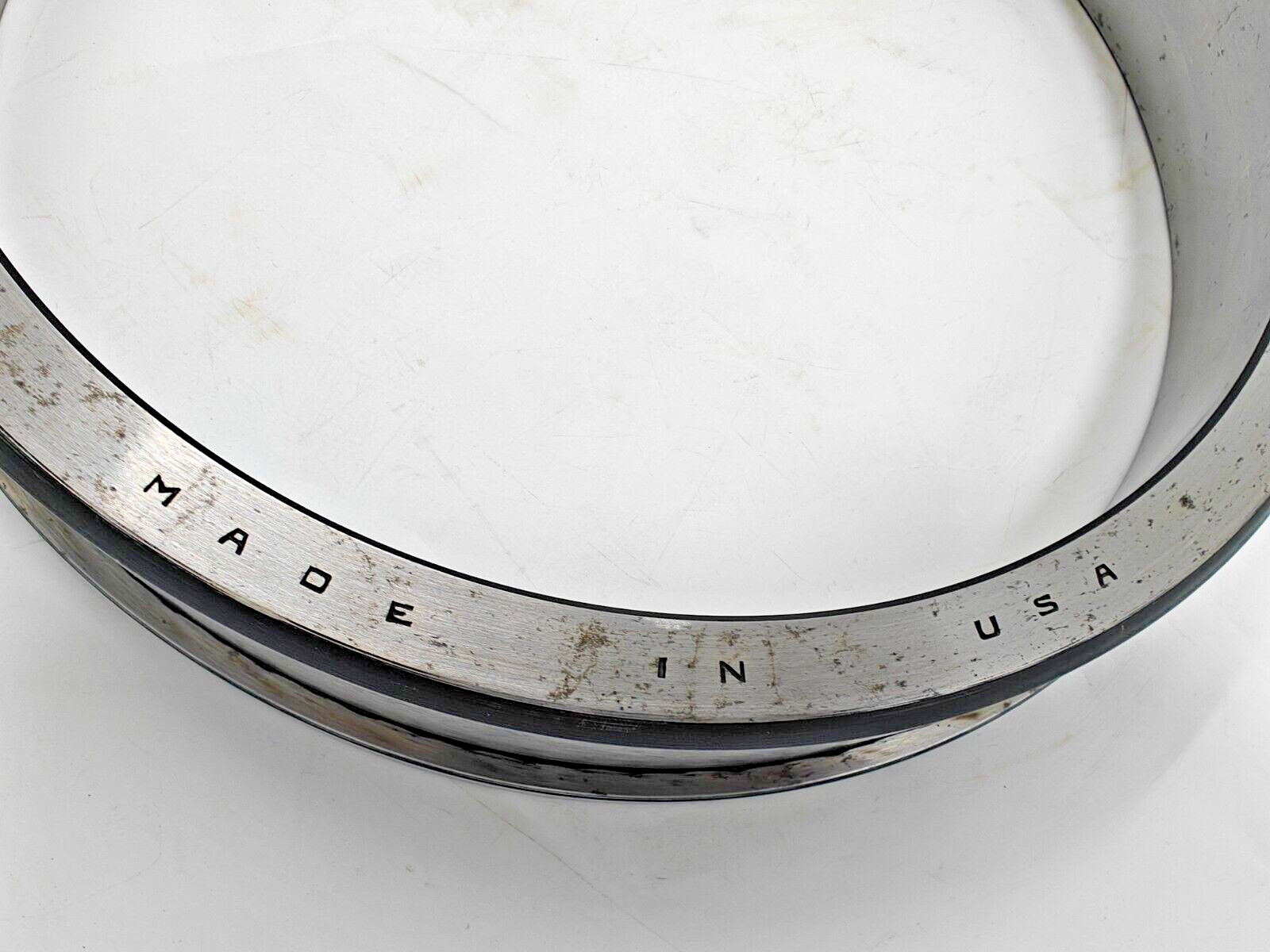

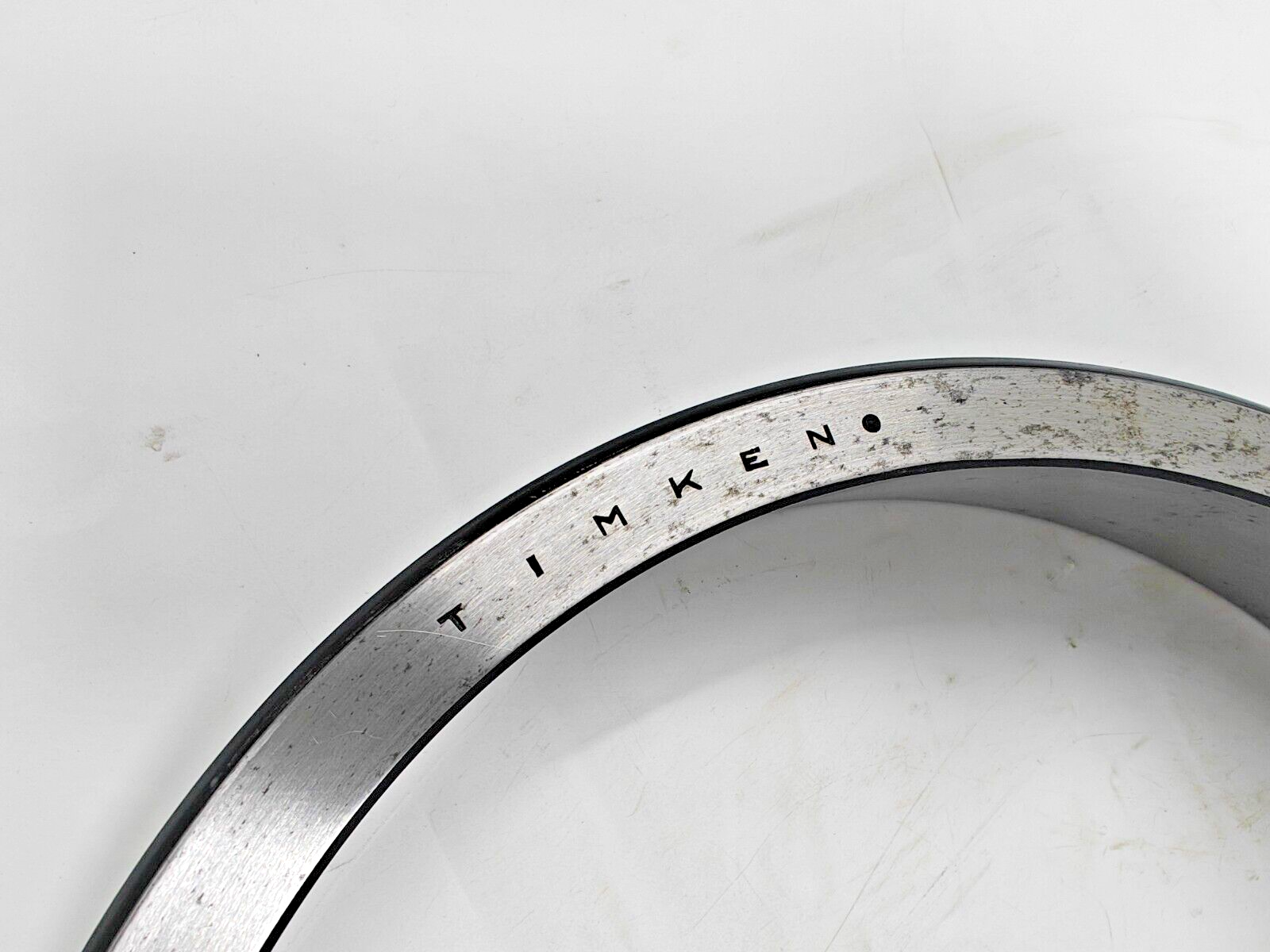

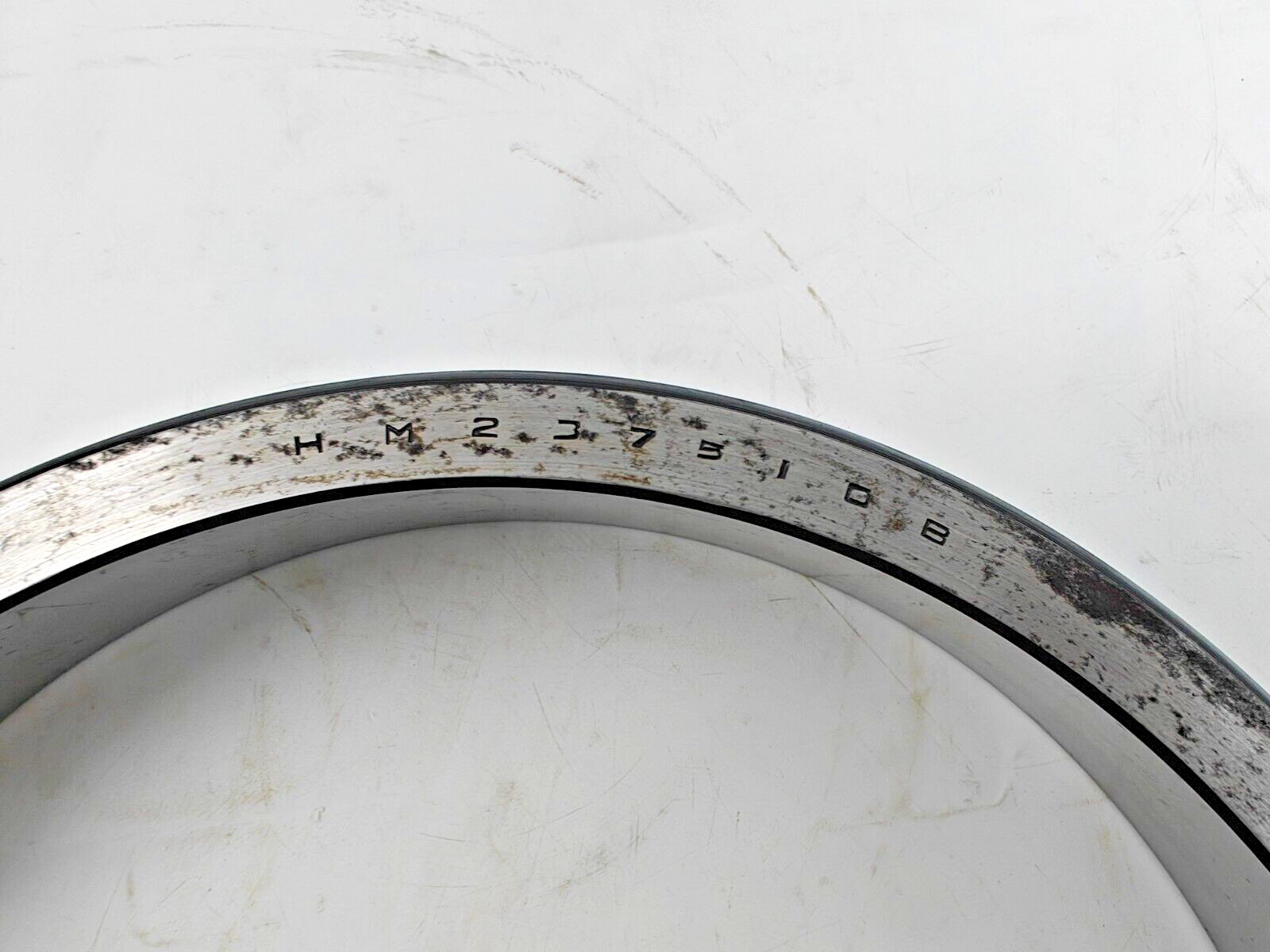

HM237510 B Timken Tapered Roller Bearing CUP "FLANGED CUP" HM237510B 11.3750" OD
$ 422.4
Description
HM237510 B Timken Tapered Roller Bearing CUP "FLANGED CUP" HM237510B 11.3750" OD This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. Unit of Measure Imperial Metric Both Specifications | Dimensions | Abutment and Fillet Dimensions | Basic Load Ratings | Factors Specifications Series HM237500 Cone Part Number HM237535 Design Units Imperial Cage Type Stamped Steel C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) 1 382000 lbf 1700000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) 2 99100 lbf 441000 N Dimensions d - Cone Bore 6 1/2 in 165.1 mm B - Cone Width 2.5 in 63.5 mm Abutment and Fillet Dimensions R - Cone Backface "To Clear" Radius 3 0.280 in 7.100 mm da - Cone Frontface Backing Diameter 7.24 in 184 mm db - Cone Backface Backing Diameter 7.68 in 195 mm Ab - Cage-Cone Frontface Clearance 0.2 in 5.1 mm Aa - Cage-Cone Backface Clearance 0.2 in 5.1 mm a - Effective Center Location 4 -0.46 in -11.7 mm Basic Load Ratings C90 - Dynamic Radial Rating (90 million revolutions) 5 56900 lbf 253000 N C1 - Dynamic Radial Rating (1 million revolutions) 6 219000 lbf 976000 N C0 - Static Radial Rating 278000 lbf 1240000 N C a90 - Dynamic Thrust Rating (90 million revolutions) 7 31100 lbf 138000 N Factors K - Factor 8 1.83 G1 - Heat Generation Factor (Roller-Raceway) 751.2 G2 - Heat Generation Factor (Rib-Roller End) 101.5 Cg - Geometry Factor 9 0.117 1 Based on 1 x 10 6 revolutions L 10 life, for the ISO life calculation method. 2 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values for a single-row, C 90(2) is the two-row radial value. 3 These maximum fillet radii will be cleared by the bearing corners. 4 Negative value indicates effective center inside cone backface. 5 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values. 6 Based on 1 x 10 6 revolutions L 10 life, for the ISO life calculation method. 7 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values for a single-row, C 90(2) is the two-row radial value. 8 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 9 Geometry constant for Lubrication Life Adjustment Factor a3l.
