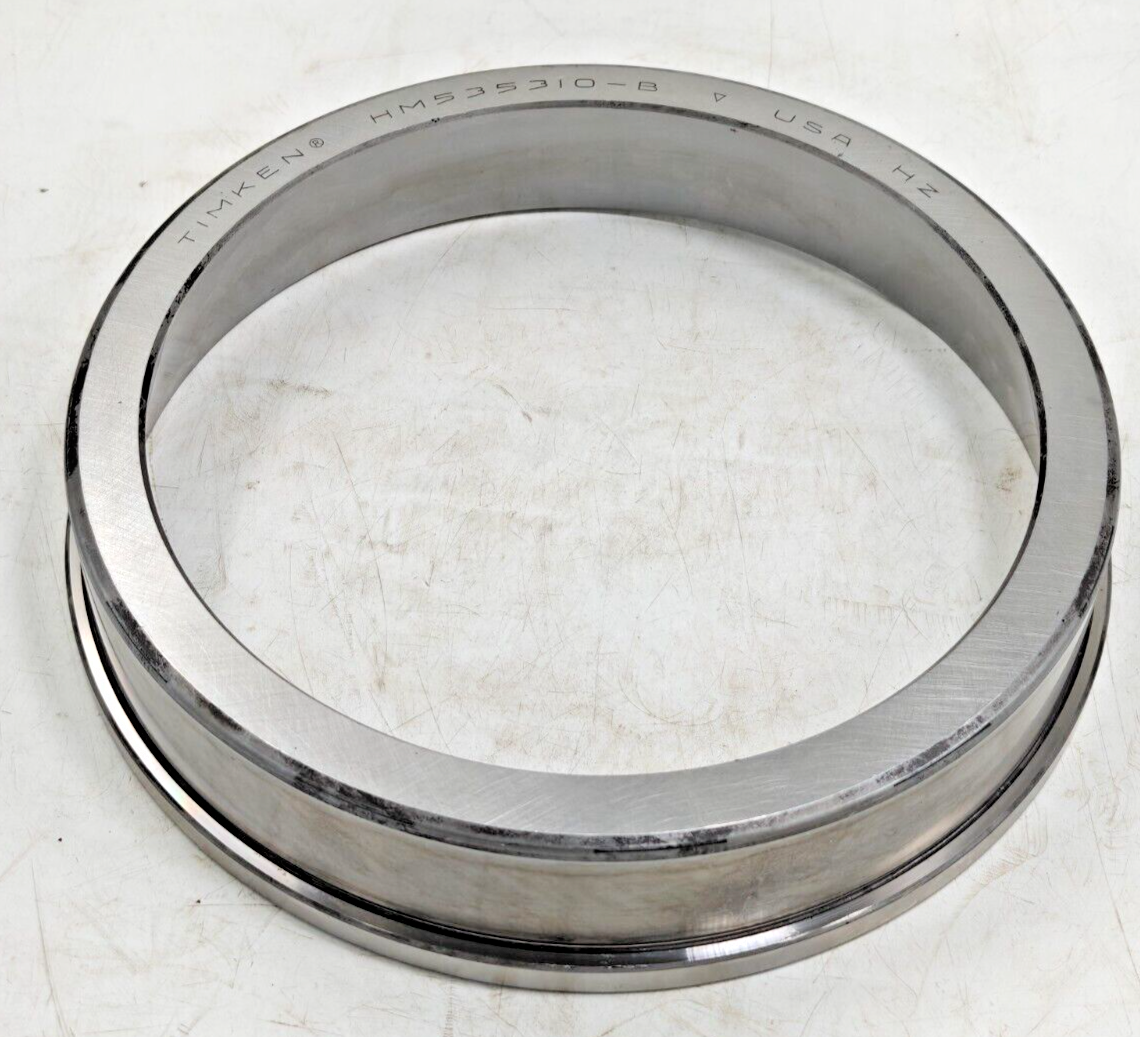

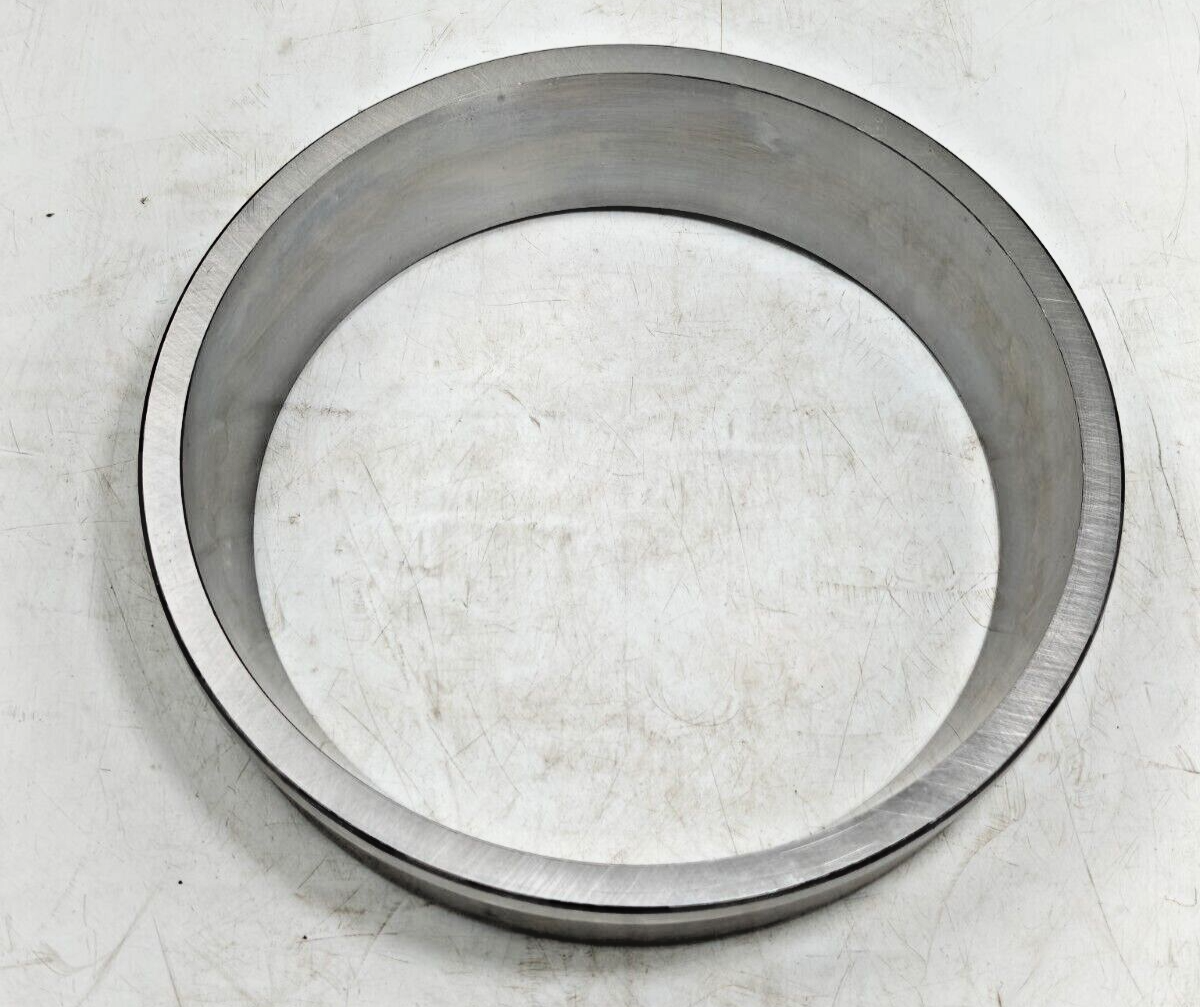

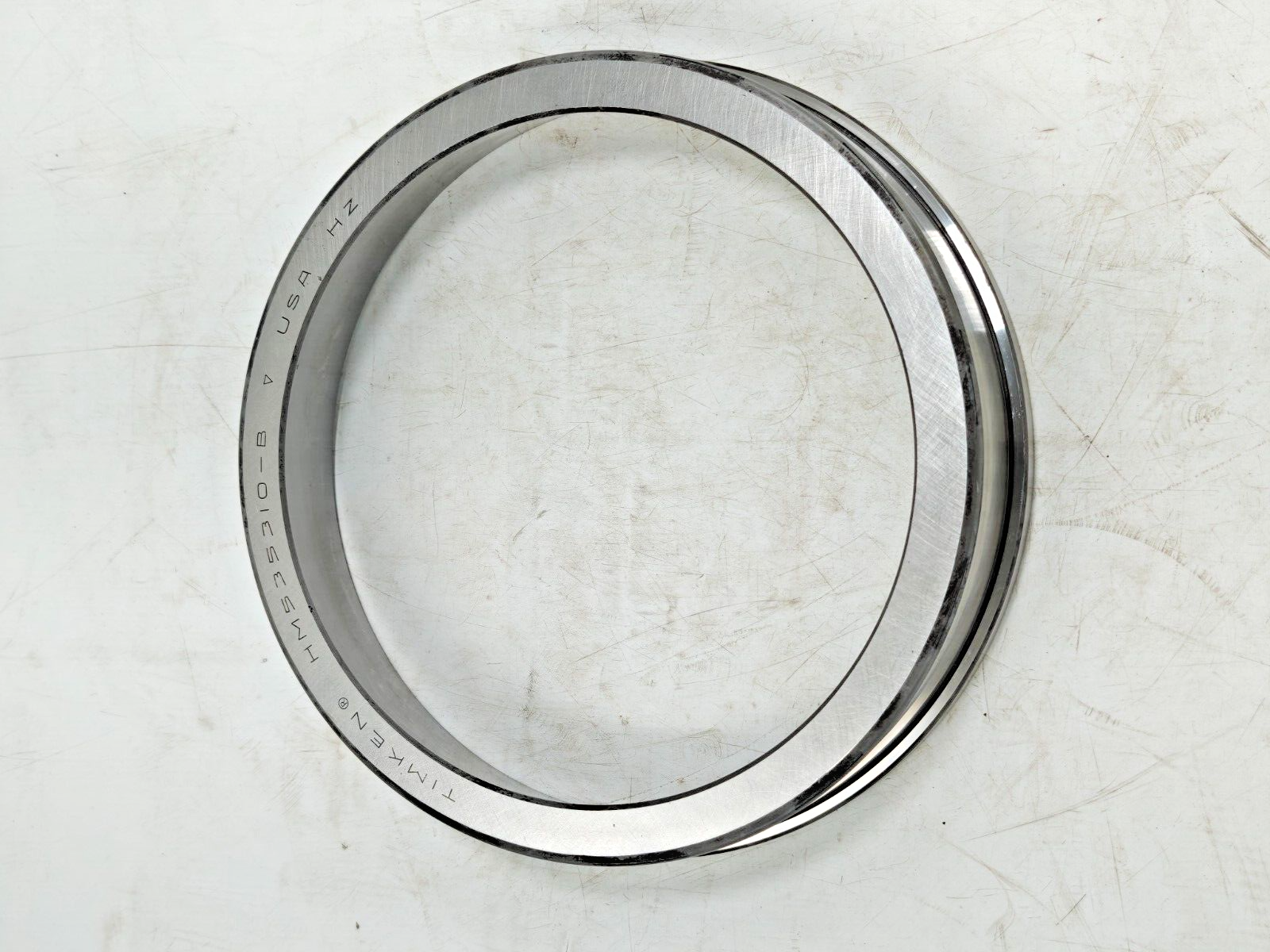

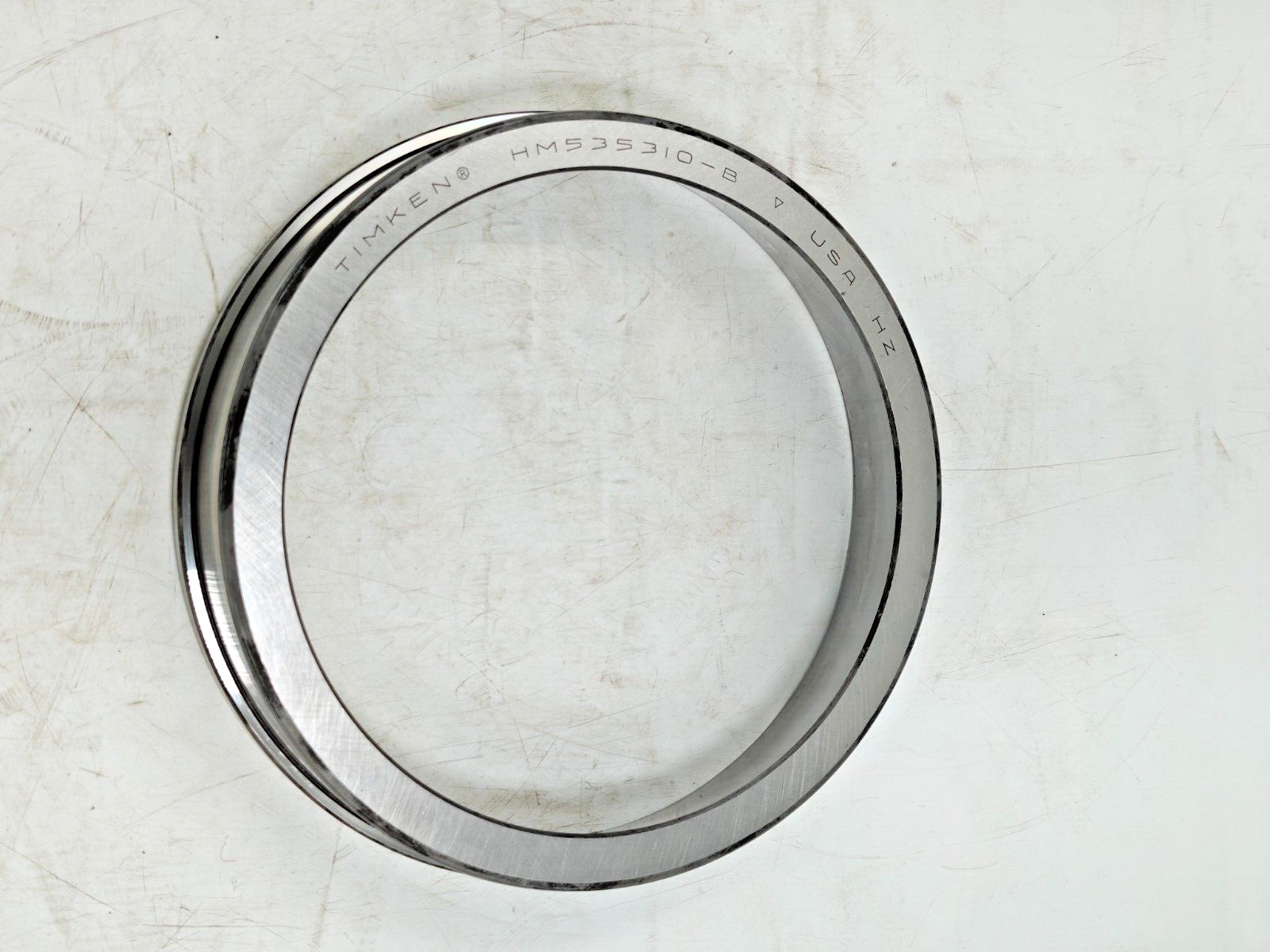

HM535310B Timken Tapered Roller Bearing CUP, Flanged 10.2500" OD HM 535310-B USA
$ 369.63
Description
HM535310B Timken Tapered Roller Bearing CUP, Flanged 10.2500" OD HM 535310-B USA Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings. Unit of Measure Imperial Metric Both Specifications | Dimensions | Abutment and Fillet Dimensions | Factors Specifications Series HM535300 Cup Part Number HM535310-B Design Units Imperial Dimensions D - Cup Outer Diameter 10-1/4 in 260.350 mm D1 - Flange Outer Diameter 10.6840 in 271.374 mm C - Cup Width 2.0625 in 52.388 mm C1 - Cup Flange Width 0.4375 in 11.113 mm Abutment and Fillet Dimensions r - Cup Backface "To Clear" Radius 1 0.130 in 3.30 mm Da - Cup Frontface Backing Diameter 9.86 in 249.94 mm Factors K - Factor 2 1.45 e - ISO Factor 3 0.4 Y - ISO Factor 4 1.49 G1 - Heat Generation Factor (Roller-Raceway) 867 G2 - Heat Generation Factor (Rib-Roller End) 225 Cg - Geometry Factor 5 0.124 1 These maximum fillet radii will be cleared by the bearing corners. 2 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 4 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 5 Geometry constant for Lubrication Life Adjustment Factor a3l.
Fast shipping (from India to UAE in 6 days only), Excellent seller (Fast responses and follow ups with shipped items), Love the item and looks exactly as described .. Thank you saved a lot of time and $$ !
Ordering part was fast and seamless. Seller was very active and kept me updated the whole time. Shipping was fast especially since it traveled a long distance. Will be ordering from them again.
Item was just as described, and suitable for my application. The price was fantastic and shipping from India to US in 5 days was unbelievable. Thank You!
