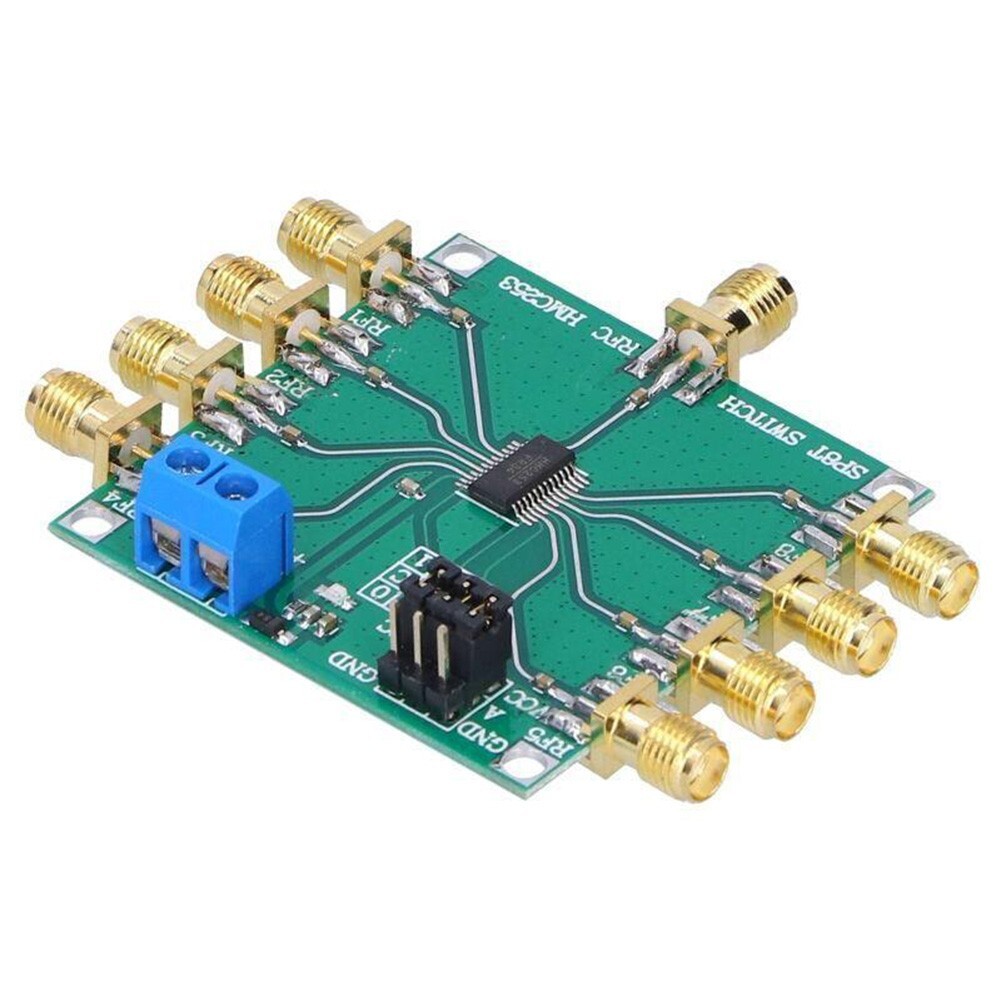

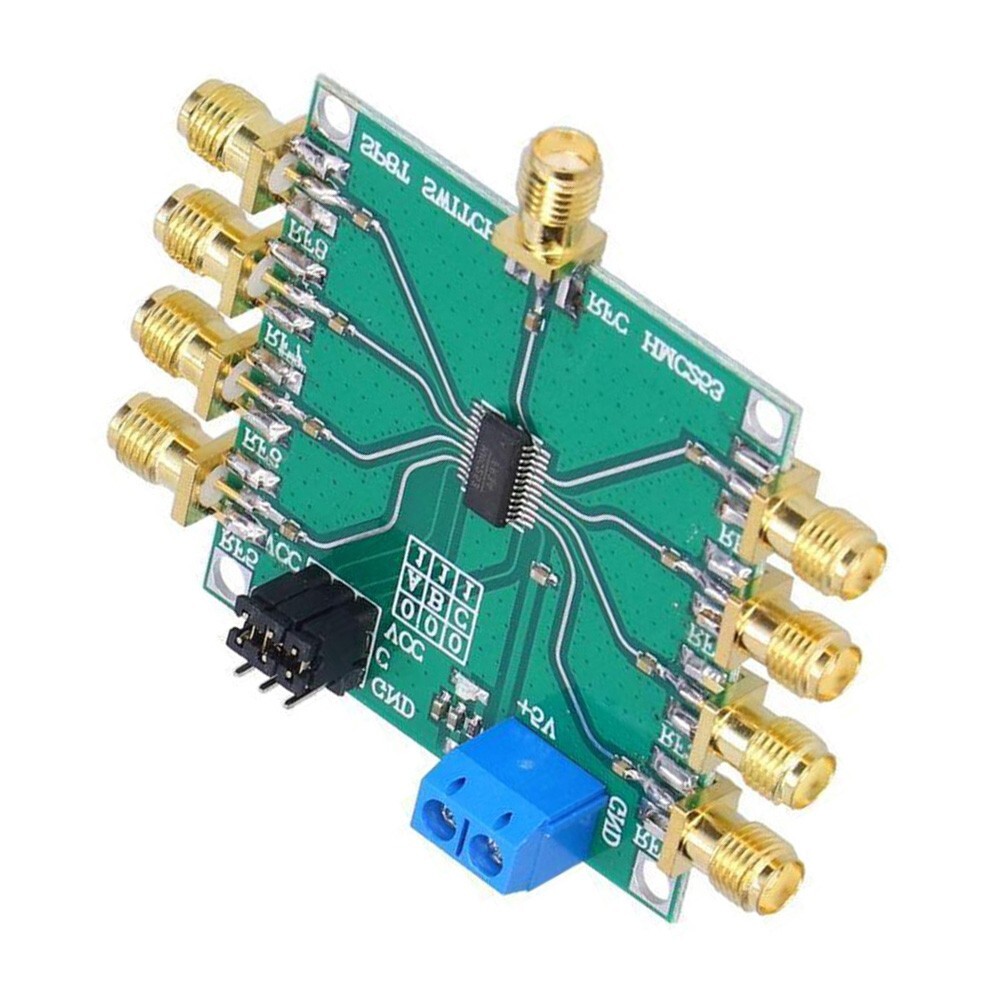

HMC253 RF Switch Module SMA DC 2.5 GHz 3V-5V Power Open 8 RF Switch
$ 12.28
Description
HMC253 RF Switch Module Open 8 RF Switch for SMA DC2.5 GHz 3V-5V Power Supply DESCRIPTION Features: * Brand new and high quality * Made of high quality materials * HMC253 DC-2.5 GHz multi-function RF single pole eight throw switch RF switch channel selection antenna module * The HMC253AQS24E is a low-cost, non-reflective Sp6t switch in a 24-pin Qsop package with broadband operating frequency from DC to 2.5 Ghz. * This switch offers single forward bias and true TTL/CMOS compatibility. * 3:6 decoder integrated on switch, requiring only three control lines and a positive bias to select each path * The HMC253AQS24E SP8T can replace SP4T and SPDT Mmic switches and logic drivers in multiple configurations. * RF single-pole and eight-throw switch RF switch antenna selection channel selection module Specification: Function 1. Low insertion loss (2 Ghz): 1.0 dB 2. Single positive supply: Vdd = +3V to +5V 3. Integrated 3:6 Ttl decoder application 1. Base station 2. Cable TV/Database 3.Mmds and WLAN 4. Test equipment Circuit description Power supply voltage: 3V-5V Frequency: DC-3GHZ PVB size: 50x50mm Color: green Material: PCB Size: about 7×5cm Package Included: 1 x antenna module Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data. POLICES Shipping Payment WARRANTY We only ship to confirmed Order addresses. Please comfirm that your Order address is in line with your shipping address. Please kindly note that the c ombined shipping is not provided because the shipping fee is calculated by weight. Also, the each additional item means exactly the the same color and size. It takes about 7 -15 working days to US; about 10-30 working days to other countries. for TRANSIT time may be a little delayed because of the bad weather and customs inspection . If you do not receive your item within 30 working days since payment finished, please contact us immediately for further assistance. Payment must be completed within 5 days. If you have any problems about payment, please contact us via message. We strive for 100% customer satisfaction! Positive is very important to us. If you have any questions, p lease feel free to contact us via "Ask seller a question" . We will reply your email within 24 working hours. On Nov 21, 2024 at 04:01:29 PST, seller added the following information:
