High Power 60W Powerful Mini Metal DIY 4-Axis Rotating Lathe Lathes Machine Tool

Description

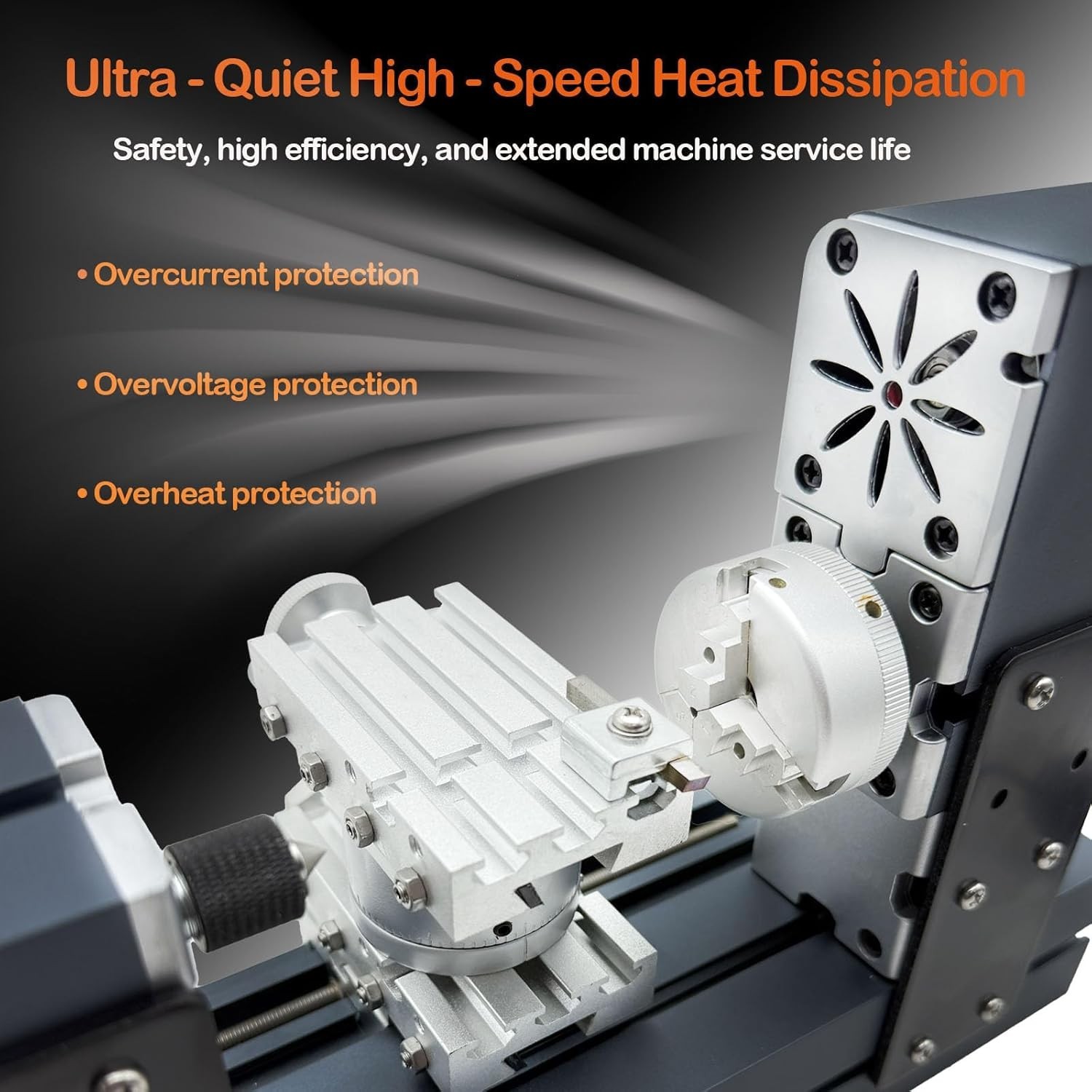

Machining Capability It is used for turning workpieces. The base block is used for heightening, expanding the diameter range to 150mm. It can rotate at multiple angles to achieve multi-angle machining. Applicable materials: Wood, soft metals (gold, silver, aluminum, copper), acrylic, plastic, etc., meeting the needs of professional users and amateur DIY enthusiasts. Brief Parameter Description_Motor speed: 12,000rpm;Input voltage/current/power: 12V/5A/60W; switch power supply input voltage: 110V-240V; Maximum processed material diameter: 150mm; length: 150mm;Maximum diameter of workpiece clamped by three-jaw chuck: 50mm Center height:75mm; center distance: 150mm; center positioning precision: 0.01-0.03mm(For detailed parameters, please refer to the product description.) Equipped with a fast indexing positioning processing function (the fast indexer is a metal part using electroplating technology):The rotating shaft A-axis of the lathe's four axes (X-axis, Z-axis, Z1-axis, A-axis) has a rotation range of -90° to +90° and a positioning accuracy of 2.5°, and the Z1-axis can achieve angle feed processing with the cooperation of the A-axis. Protective Transformer: The transformer has overcurrent, overvoltage, and overheat protection functions to ensure safe and stable operation and minimize failure risks. Ultra-precision Core Technology: Through precise machining and strict calibration, the deviation between the spindle and tailstock center, as well as between the spindle and tool center, is strictly controlled within 0.01-0.03mm. This ensures consistent and high-precision workpiece processing, meeting the rigorous positioning accuracy standards in the precision manufacturing field, and providing reliable guarantee for professional machining. Durability-upgraded configuration: All-Metal Structure---The spindle box (with auxiliary fastening holes at the rear), motor box, handwheel, gears, small slide, long slide, connecting block, three-jaw chuck (optional metal four-jaw independent chuck), belt guard, tool clamping jaw, etc., are all made of metal. The body has no plastic parts. Custom Ultra-Quiet Motor---Equipped with a custom ultra-quiet, high-speed, low-vibration built-in fan motor with excellent heat dissipation, ensuring quiet and efficient processing, reducing noise pollution, adapting to long-term continuous operation, and balancing precision and durability. Design and Protection: The machine tool adopts safe rounded corner processing technology to prevent metal parts from scratching the skin. The High Power 60W Powerful Mini Metal DIY 4-Axis Rotating Lathe Lathes Machine Tool is a versatile and compact metal lathe designed for precision machining of metal materials. With a manual control system and electric power source, this lather allows for easy operation and efficient cutting of various metal pieces. The 4-axis rotating feature enhances the versatility of the machine, making it suitable for a wide range of projects in metalworking and manufacturing. This tool comes with a user manual and is made in the United States, ensuring quality craftsmanship and reliable performance.
