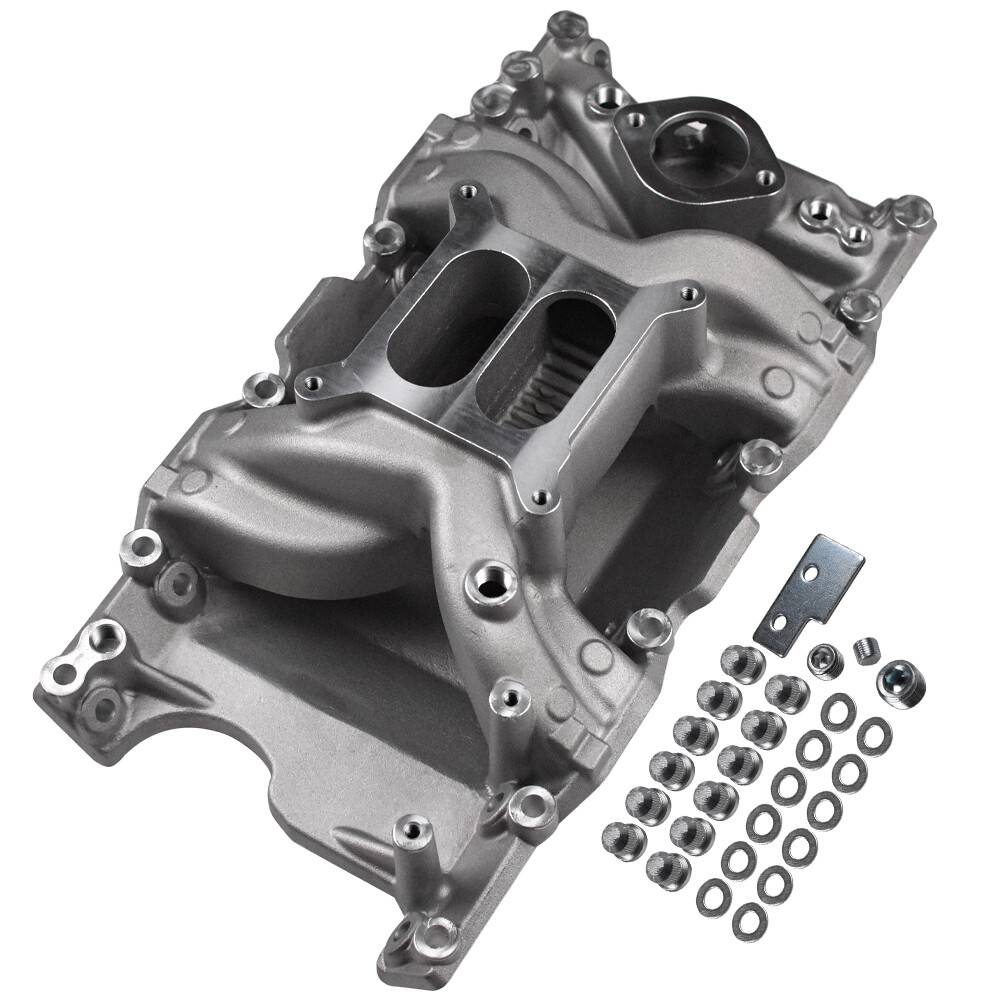

High-Performance Dual Plane Intake Manifold for Mopar 318 340 360 Small Block 1967-2003
$ 76.51
Description

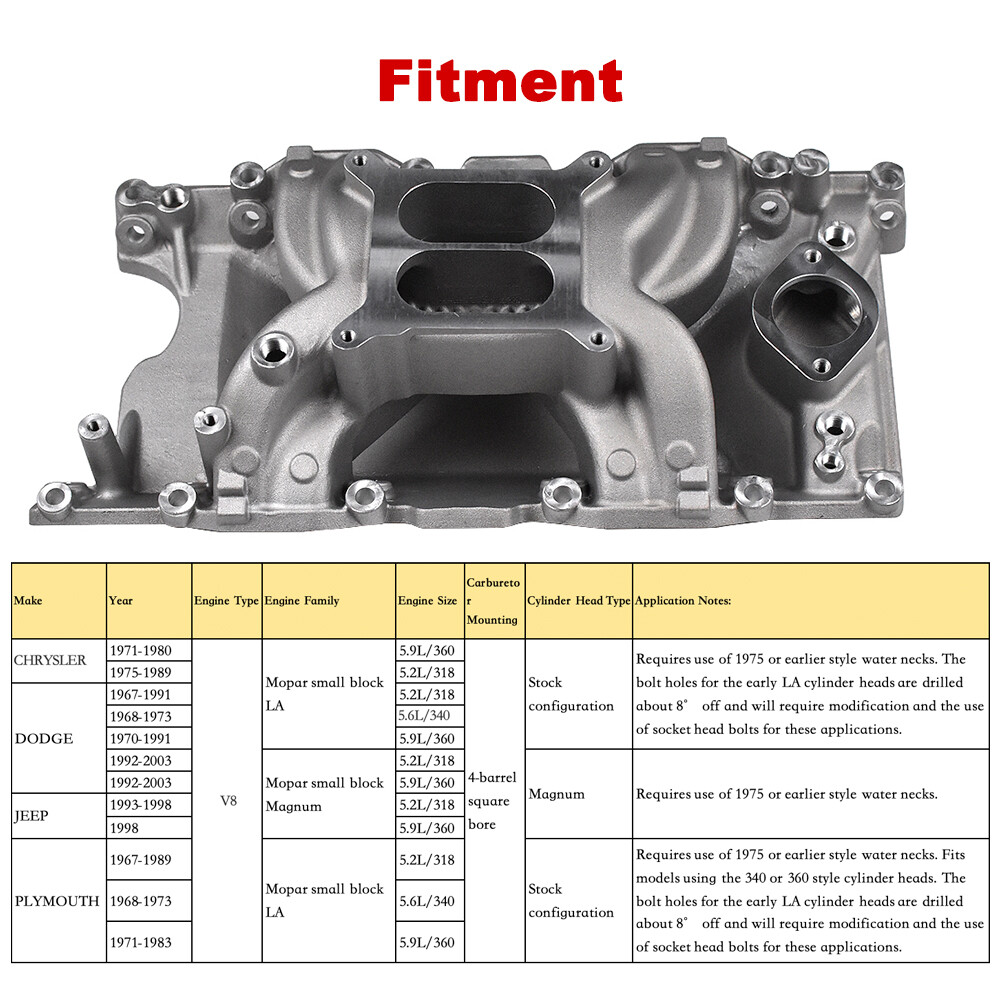

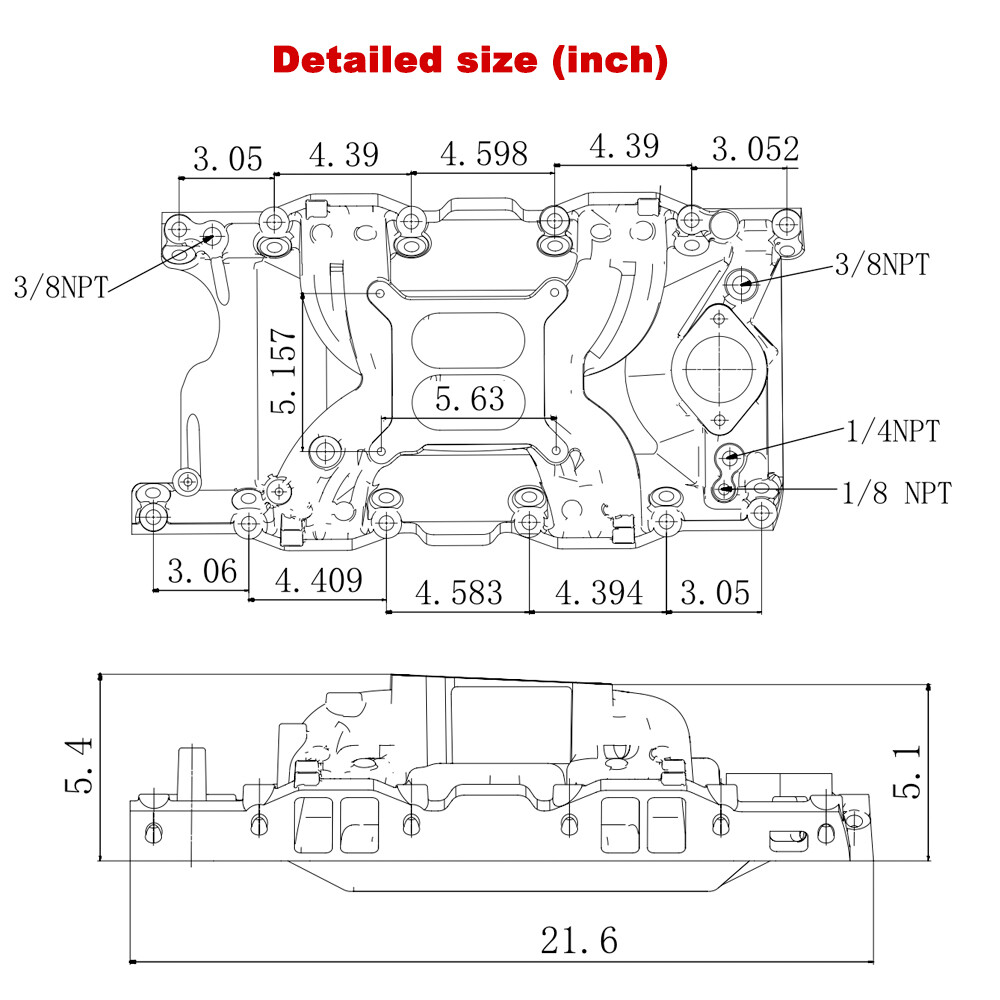

Intake Manifold Dual Plane For Small Block Chrysler Mopar 318 340 360 1967-2003 Description: Intake Style：Dual Plane RPM Range：1500-6500 Intake Manifold Height: 4.875 in Material: Aluminum Finish:Satin Carburetor or Throttle Body Flange: Accepts 4150/4160 4-BBL square bore carburetors Port exit dimensions: 1.078 in. W x 2.155 in. H Estimated runner length - Shortest: 5.00 in. Estimated runner length - Longest: 6.250 in. EGR or Non-EGR: non-EGR Includes Gaskets: No Requires Aftermarket Fuel Rails: No Center Maximum Height: 5.350 in CNC Ported: No Manifold height: Front (A) 4.875 in., Rear (B) 5.750 in. (A + B divided by 2 = 5.3125 in. pad height) Fitment Make Year Engine Type Engine Family Engine Size Carburetor Mounting Cylinder Head Type Application Notes: CHRYSLER 1971-1980 V8 Mopar small block LA 5.9L/360 4-barrel square bore Stock configuration Requires use of 1975 or earlier style water necks. The bolt holes for the early LA cylinder heads are drilled about 8° off and will require modification and the use of socket head bolts for these applications. 1975-1989 5.2L/318 DODGE 1967-1991 5.2L/318 1968-1973 5.6L/340 1970-1991 5.9L/360 1992-2003 Mopar small block Magnum 5.2L/318 Magnum Requires use of 1975 or earlier style water necks. 1992-2003 5.9L/360 JEEP 1993-1998 5.2L/318 1998 5.9L/360 PLYMOUTH 1967-1989 Mopar small block LA 5.2L/318 Stock configuration Requires use of 1975 or earlier style water necks. Fits models using the 340 or 360 style cylinder heads. The bolt holes for the early LA cylinder heads are drilled about 8° off and will require modification and the use of socket head bolts for these applications. 1968-1973 5.6L/340 1971-1983 5.9L/360 Packing included: 1 x intake manifold some fittings
