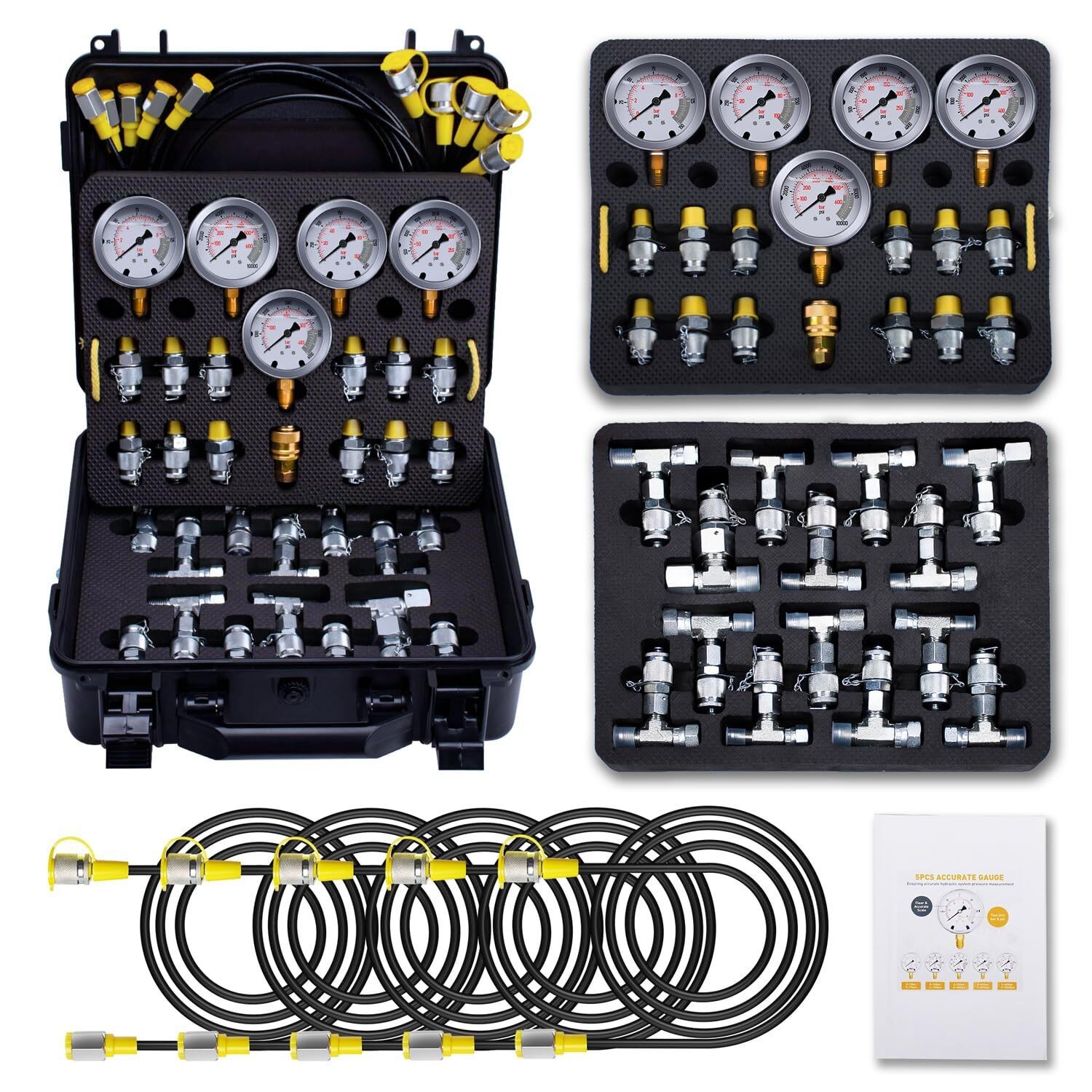

Hydraulic Pressure Test Kit 5 Gauge 13 Coupling 14 Tee Connectors For Excavator

Description

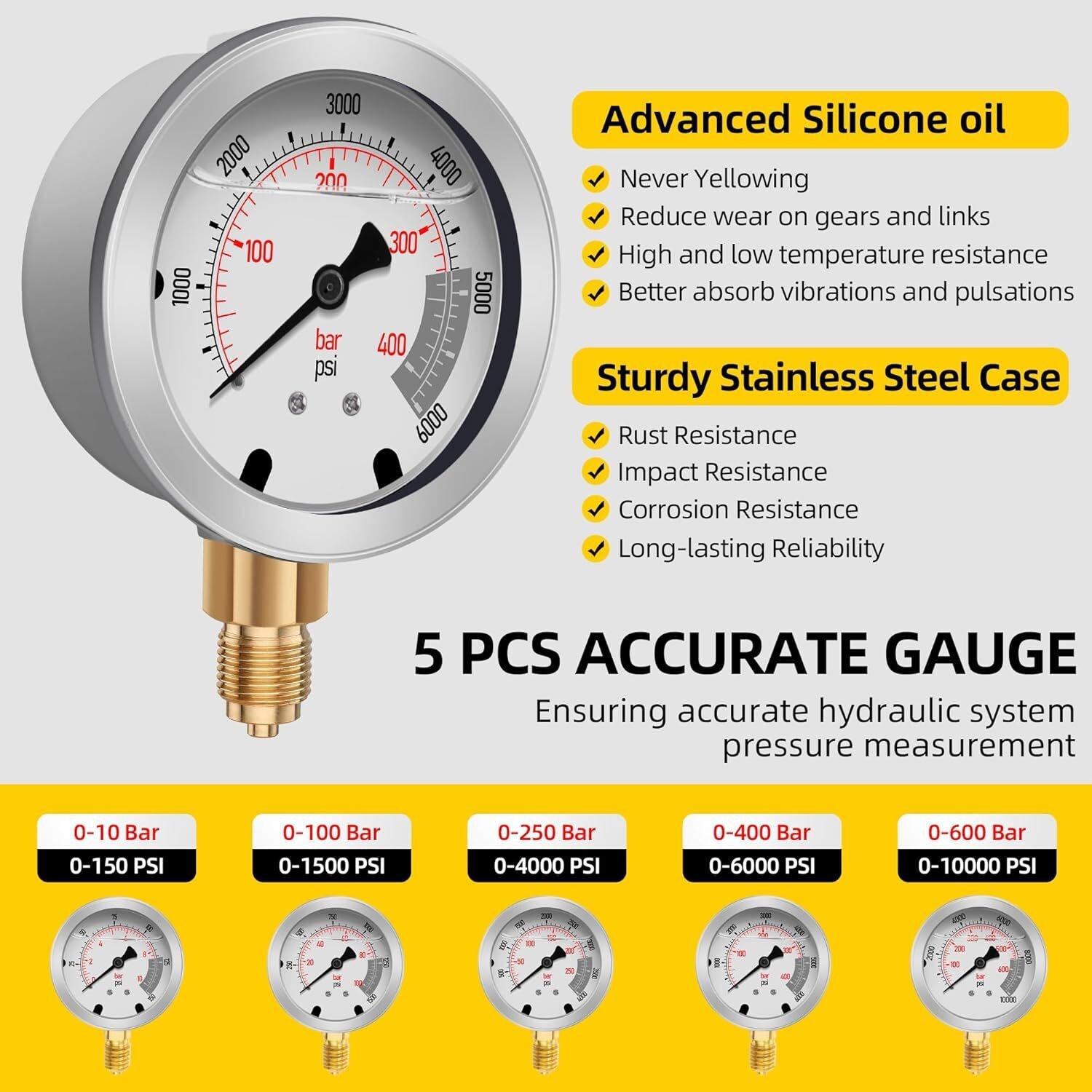

Hydraulic Pressure Test Kit 5 Gauge 13 Coupling 14 Tee Connectors For Excavator 🔧 Hydraulic Pressure Test Kit (Model TKS-4) – 5 Gauges, 13 Couplings, 5 Hoses | For Excavators & Industrial Machinery 🔧 【0–10,000 PSI Range | 304 Stainless Steel Gauges | Portable Storage Case】Compatible with Caterpillar/Komatsu/John Deere + More 1. Core Features 🔹 5 Precision Gauges – Covers 0–10,000 PSI (0–600 Bar) Equipped with 5 dual-scale (PSI/Bar) gauges to measure hydraulic pressure across nearly all industrial and construction equipment needs—eliminates the need for multiple single-range tools: Gauge Range (PSI/Bar) Typical Applications 0–150 PSI (0–10 Bar) Low-pressure systems (e.g., hydraulic cylinder retraction, small pneumatic accessories) 0–1,500 PSI (0–100 Bar) Medium-pressure components (e.g., excavator arm lift, loader bucket tilt) 0–4,000 PSI (0–250 Bar) High-pressure pumps (e.g., main hydraulic pumps on 10–20 ton excavators) 0–6,000 PSI (0–400 Bar) Heavy-duty systems (e.g., bulldozer blade lift, crane winch hydraulics) 0–10,000 PSI (0–600 Bar) Ultra-high-pressure equipment (e.g., large mining excavators, hydraulic breakers) Non-Yellowing Clear Dials : High-visibility screens ensure easy reading in bright sunlight or dim engine bays—no need for unit conversions (PSI and Bar displayed side-by-side). Glycerin-Filled Design : Reduces vibration and pulsation interference (common in hydraulic systems), delivering accurate readings (±1.5% full-scale error) even during equipment operation. 🔧 Durable Construction – 304 Stainless Steel & Aramid Fiber Hoses Built to withstand the harsh conditions of construction, mining, and shipping environments (dust, moisture, extreme temperatures): Gauge Casings : 304 stainless steel resists rust, corrosion, and impact damage—far more durable than plastic gauges that crack under heavy use. Copper threaded joints ensure leak-free connections to hoses/couplings. Test Hoses : 5.2 ft (1.6 m) long, made of nylon + aramid fiber + polyurethane. Aramid fiber (used in bulletproof vests) reinforces the hose to handle up to 10,000 PSI without bursting. The length allows safe operation from a distance (avoids contact with moving machinery). Couplings/Tees : Precision-machined metal with protective plastic films (prevents thread damage during storage). Compatible with both metric and imperial threads (see “Fitment” section for full specs). 🌟 Universal Compatibility – Fits 90%+ Industrial Machinery Brands Designed to work with nearly all major excavator, loader, and construction equipment brands—no brand-specific adapters needed: Equipment Brand Compatible Models (Examples) American Caterpillar (CAT 320, 330), John Deere (350G, 470G), Case (CX210, CX350) Japanese Komatsu (PC200, PC360), Hitachi (ZX200, ZX350), Kobelco (SK210, SK350) Korean Hyundai (R210, R350), Doosan (DX225, DX380), Daewoo (SOLAR 220LC) European Volvo (EC220, EC350), Hiab (crane trucks), Liebherr (R920, R930) Chinese Sany (SY215, SY365), XCMG (XE215C, XE370D), Liugong (CLG920E, CLG936E) 13 Test Couplings : Covers all common thread types: ZG1/4, G1/4, G1/8, G3/8, UNF7/16, UNF9/16, M10×1.25, M14×1.5, M10×1, M16×1.5, M12×1.5, NPT1/4, and a Carter quick connector for fast attachment to American-style hydraulic ports. 14 Tee Connectors : Allow tapping into existing hydraulic lines without disconnecting components—saves time and prevents fluid loss. 🔩 Portable Storage Case – Organized & Protected Comes in a heavy-duty ABS plastic case with custom foam inserts to keep all components secure and organized: Foam Protective Layer : Each gauge, hose, and coupling has a dedicated slot—prevents scratches, tangles, or loss during transport. Built-In Handle & Locks : Easy to carry to job sites (weighs 14.9 lbs / 6.75 kg) and keeps components dry/dust-free. Desiccants Included : 2 moisture-absorbing packets prevent rust on metal parts (critical for storage in humid environments like construction yards). 2. Technical Specifications Parameter Category Detailed Specifications Condition 100% Brand New Product Model TKS-4 Hydraulic Pressure Test Kit Gauge Quantity & Ranges 5 gauges: 0–150 PSI (10 Bar), 0–1,500 PSI (100 Bar), 0–4,000 PSI (250 Bar), 0–6,000 PSI (400 Bar), 0–10,000 PSI (600 Bar) Gauge Material Casing: 304 stainless steel; Joints: Copper; Filling: High-grade glycerin Hose Specifications 5 hoses (5.2 ft / 1.6 m each); Material: Nylon + Aramid fiber + Polyurethane; Max Pressure: 10,000 PSI Couplings/Tees 13 couplings (metric/imperial threads); 14 tee connectors Storage Case ABS plastic with foam inserts; Dimensions: 12.8" × 12.0" × 4.5" (325×305×115 mm) Net Weight 14.9 lbs (6.75 kg) Warranty 90-Day Manufacturer Warranty Shipping Origin CA or NJ warehouses (fast delivery to continental U.S.) 3. Package Included 5 × Hydraulic Pressure Gauges (with thread protection covers) 5 × 5.2 ft (1.6 m) High-Pressure Test Hoses 13 × Test Couplings (ZG1/4, G1/4, G1/8, G3/8, UNF7/16, UNF9/16, M10×1.25, M14×1.5, M10×1, M16×1.5, M12×1.5, NPT1/4, Carter Quick Connector) 14 × Tee Connectors 2 × Moisture-Absorbing Desiccants 1 × Instruction Manual (with setup diagrams) 1 × Heavy-Duty Portable Storage Case (As shown in product images) 4. Usage & After-Sales Tips Usage Guidelines Pre-Test Prep : Select the gauge with a range 20–30% higher than the expected system pressure (avoids gauge damage from overpressure). Attach the appropriate coupling to the gauge and hose, then connect to the hydraulic system’s test port (use Teflon tape on threaded joints for extra leak protection). Bleed air from the hose by opening the system valve slightly—air bubbles cause inaccurate readings. Safety First : Wear gloves and safety glasses—hydraulic fluid under high pressure can penetrate skin. Keep body parts away from hose connections during testing. After-Sales Support Fitment Issues : If a coupling doesn’t match your equipment’s test port, contact the seller with your machine’s make/model (e.g., “Komatsu PC200-8”)—they’ll confirm the correct adapter (if needed). Defects : If a gauge leaks, a hose bursts, or components are missing, request a free replacement (covered under warranty). Storage Tip : After use, clean hoses with hydraulic fluid (to prevent dry rot) and store the kit in a cool, dry place—replace desiccants every 6 months for rust prevention. The ultimate hydraulic testing tool for professionals! This kit delivers accuracy, durability, and portability—perfect for mechanics, construction crews, and mining operations maintaining heavy machinery. 🚜🔧
