Microwave Oven Door Switch Replacement Part, 16A 125VAC, KW3AT-16 Downward Co...

$ 8.45

Wattage: 4000 Watts Number Of Positions: 2 Type: Details In Description Item Dimensions L X W X H: 1.09 X 0.63 X 0.41 Inches Switch Type: Push Button Mounting Type: Door Mount Unit Count: 1.0 Count Connector Type: Quick Connect Item Dimensions: 1.09 X 0.63 X 0.41 Inches gtin13: Does not apply Terminal: Quick Connect Material Type: Plastic Contact Type: Break, Make Item Height: 0.41 Inches Brand: Unbranded Current Rating: 16 Amps Connectivity Protocol: X-10 UPC: Does not apply Operation Mode: Manual Circuit Type: 2-way Actuator Type: Hinge Lever Contact Material: Plastic Control Method: Touch Operating Voltage: 250 Volts

Description

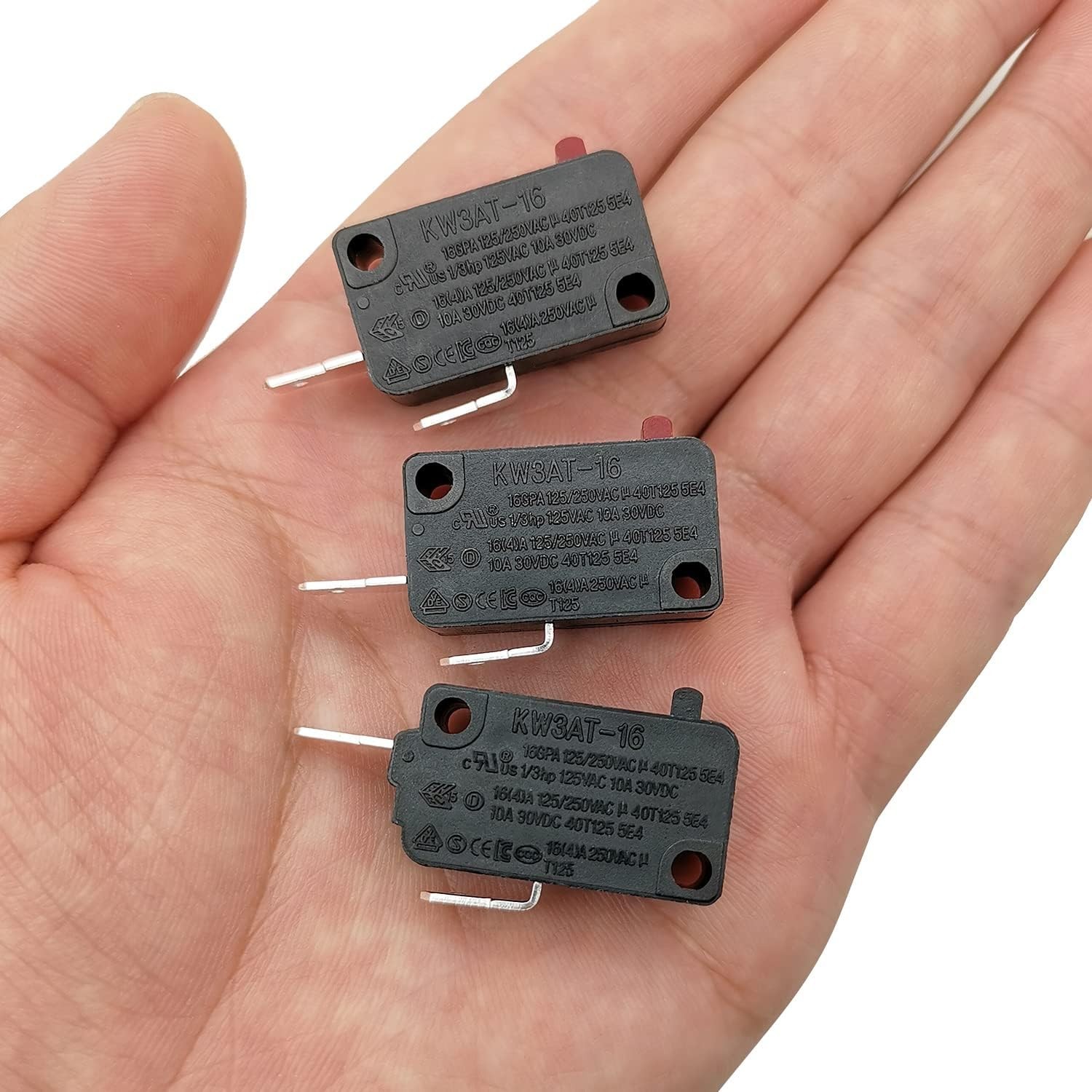

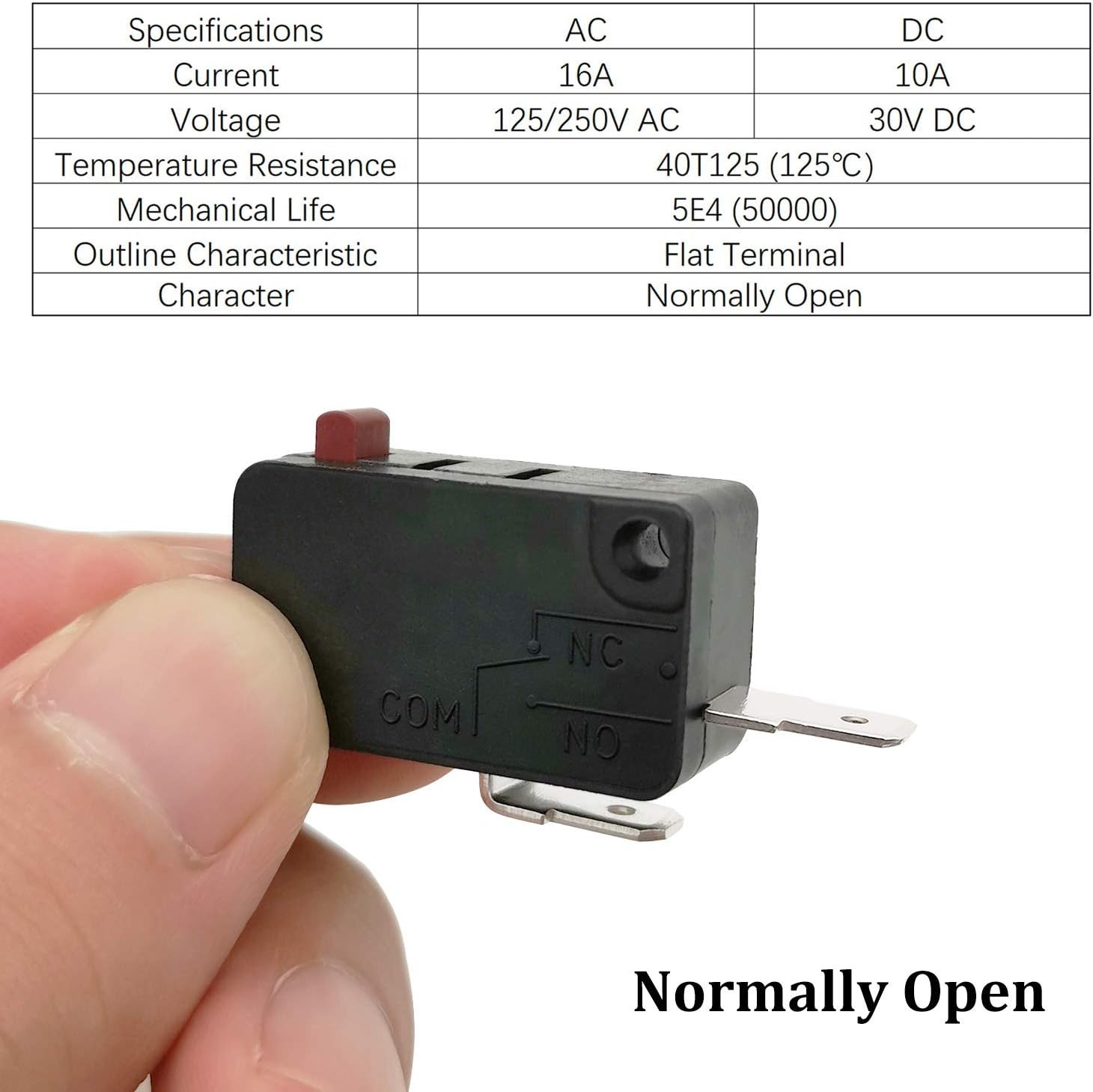

Microwave Oven Door Switch Part, 16A 125VAC, KW3AT-16 Downward Compatible with KW3A-16, 【Normally Open Switch】Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Flat Terminal, Character: Normally Open (Normal time Terminal COM connect to Terminal NC, the Circuit is Open; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Closed) 【Normally Closed Switch】Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Basic Form, Character: Normally Closed (Normal time Terminal COM connect to Terminal NC, the Circuit is Closed; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Open) 【How to Distinguish】Normally Open Switch is Flat Terminal, Relatively Short; Normally Closed Switch is Basic Form, Relatively Long KW3AT-16 has a maximum temperature resistance is 125 ℃ and KW3A-16 has a maximum temperature resistance is 105 ℃, Other electrical performances are the same, so KW3AT-16 is an upgraded version of KW3A-16, which is more competent in harsh working environments than KW3A-16 【Compatible with Most of Microwave Oven】If the microwave will not turn or heat properly, there could be an issue with the door switch, a new switch can return the microwave oven to normal operation 【Package Includes】2x Normally Open Switch + 1x Normally Closed Switch
