New 12V/24V Automotive Relay Tester 4PIN 5PIN Super Relay Tester Diagnostic Tool
$ 12.14
Description

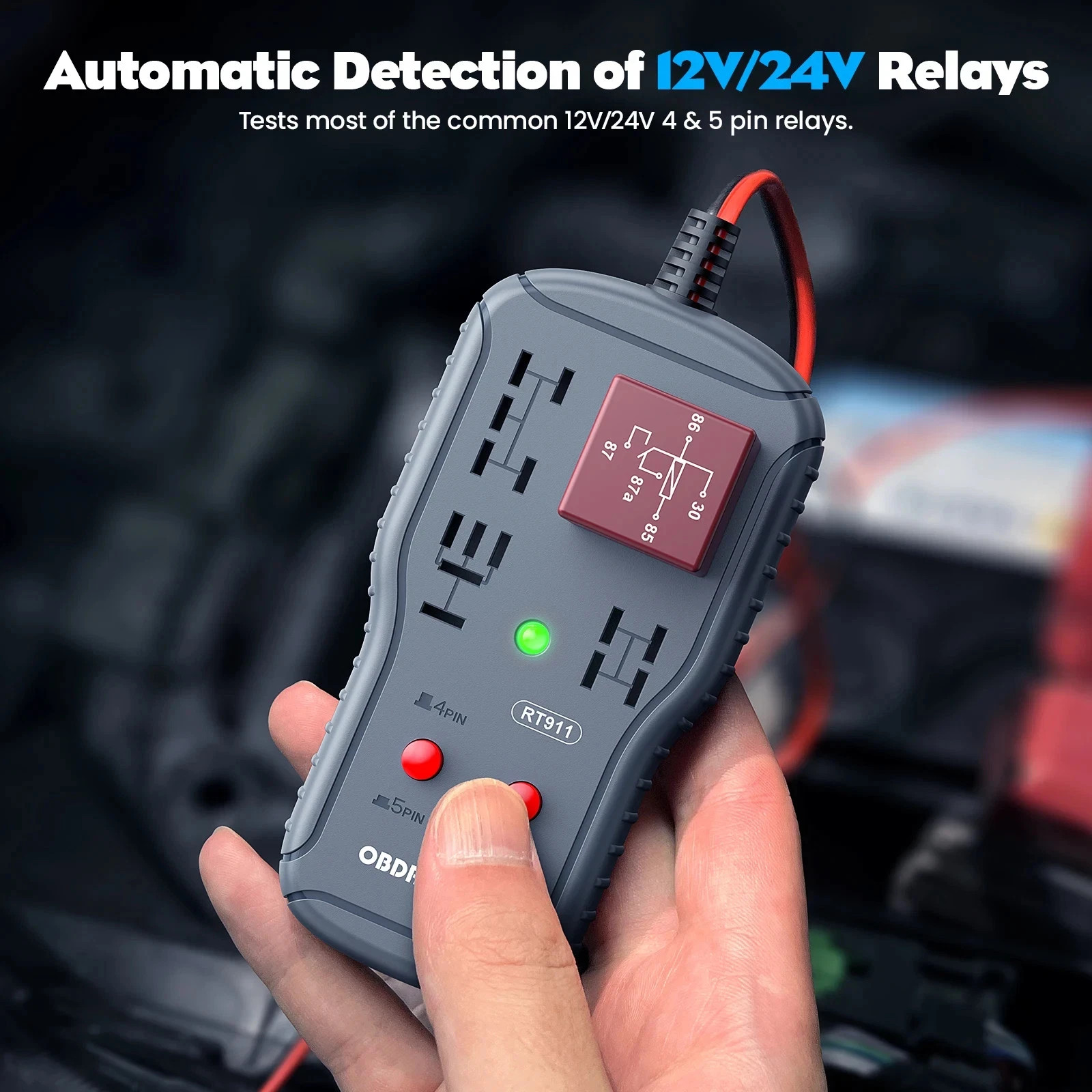

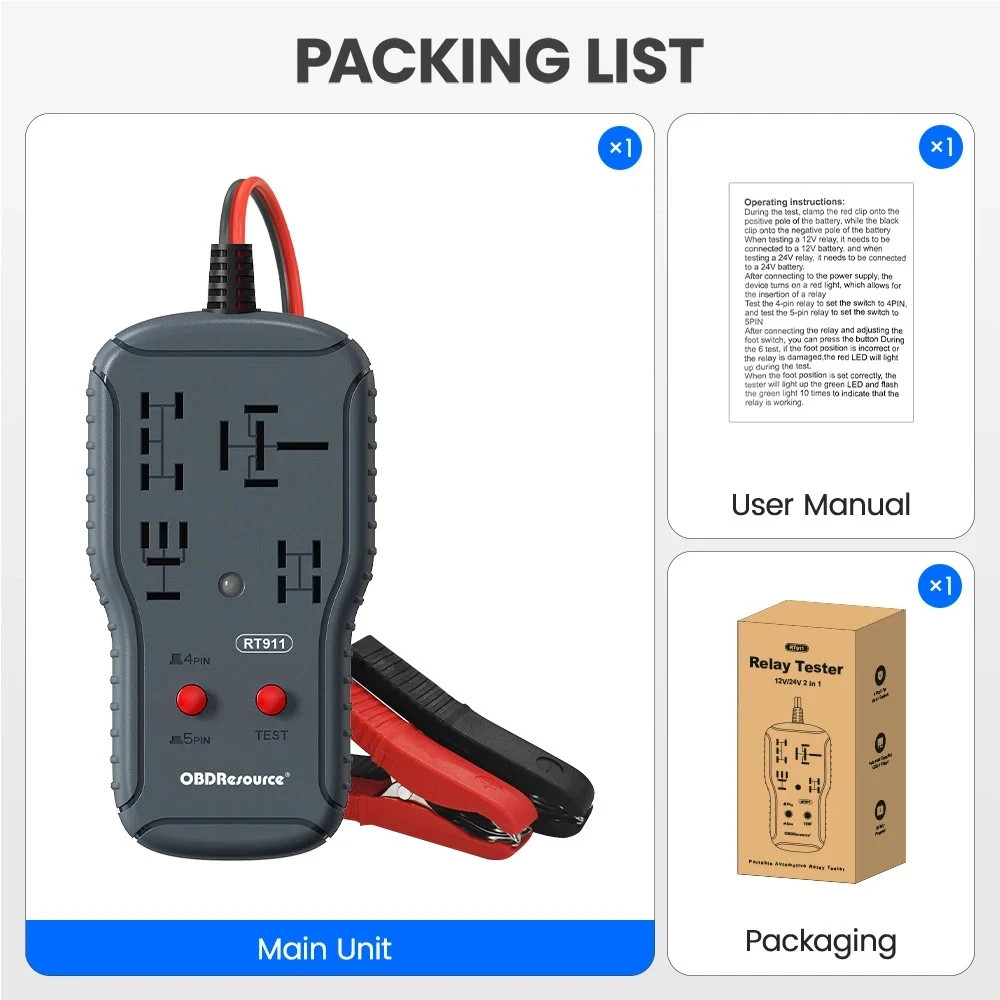

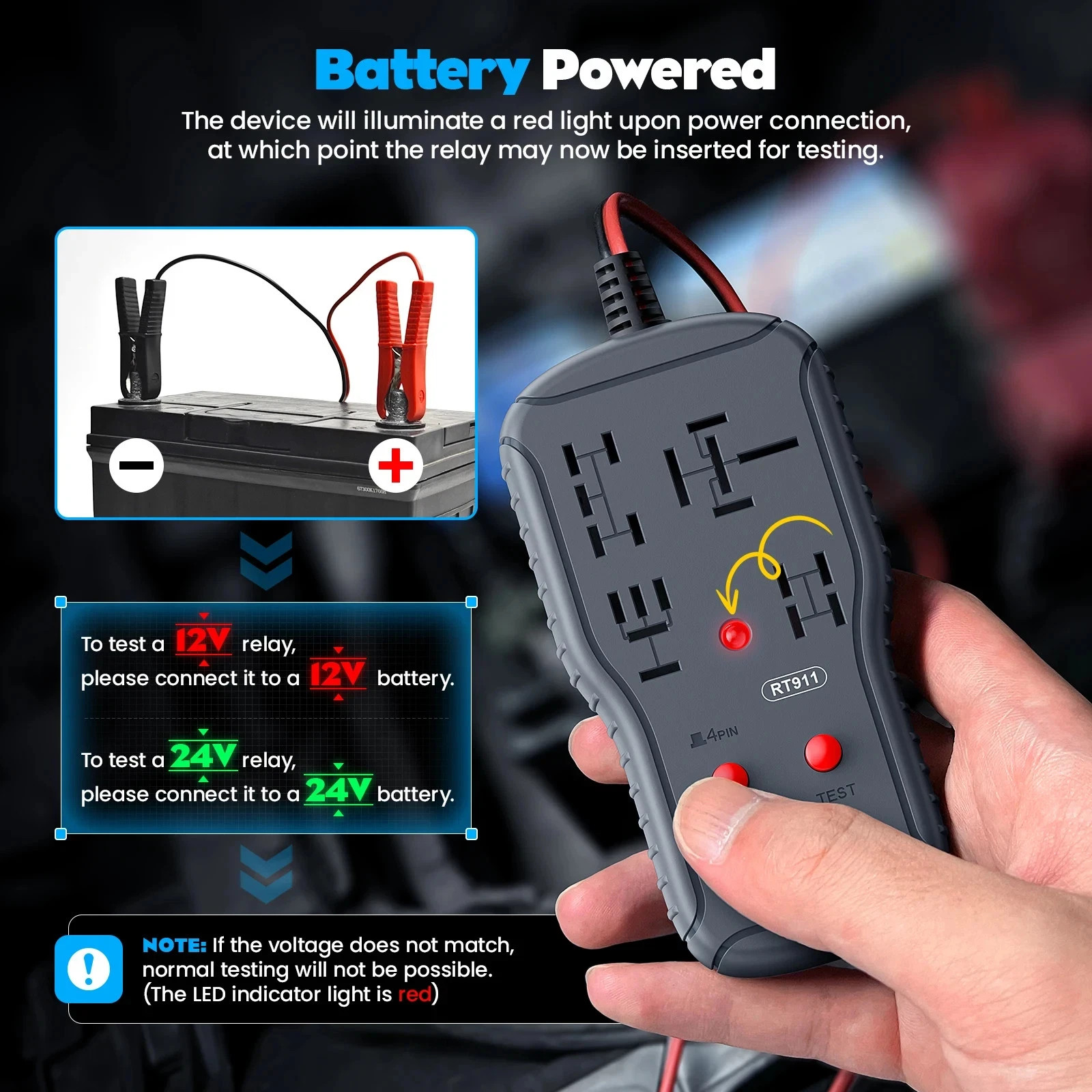

New 12V/24V Automotive Relay Tester 4PIN 5PIN Super Relay Tester Diagnostic Tool. With just one push of a button, the device automatically detects the type of 12V/24V relay. OBDResource 12V/24V Automotive Relay Tester. 1 × Relay Tester. If the relay is abnormal thered LED will light, it's normal thegreen LED will light. OBDResource 12V/24V Automotive Relay Tester Intelligent Automatic Detection | Wireless & Portable | 4-Pin / 5-Pin Relay Tester 📋 Specifications Condition 100% New Material Plastic & Metal Color Gray Voltage 12V / 24V ✨ Features Automotive relays test tool. Through the continuous automobile battery (11V-26V) to the relay coil, the detector can properly check the relay contact function. The tester observes contact data, closure time, relay inertia at each test stage, etc. Test to properly control the opening and closing of the relay. If the relay is abnormal the red LED will light, it's normal the green LED will light. 🤖 Intelligent Automatic Detection With just one push of a button, the device automatically detects the type of 12V/24V relay. OBDResource relay tester supports 4 different pin configurations (4-pin/5-pin), shows the relay status (opening/closing) and the function in real time, allows quick error localisation and does not require manual configuration. 📡 Wireless & Portable Design Car relay tester is simply powered by the battery terminals and does not require an external power source. This makes it ideal for mobile testing outdoors or in the workshop and overcomes the limits of conventional stationary test equipment. 🔄 Wide Compatibility Automatic voltage detection covers over 20 common automotive relay types, is compatible with 12V/24V voltage and various pin arrangements (4pin/5pin) and is suitable for both home use and professional repairs — without problems caused by incompatible devices or relays. 🛡️ Safety & Gentle Testing Thanks to non-invasive test technology, the internal relay circuit is not damaged. The device accurately detects the status of opening/closing relays and ensures a safe and reliable test process. ⚠️ Warm Notice When your car relay is 12V, car battery must be 12V battery, the voltage must be between 11-15V. When your car relay is 24V, car battery must be 24V battery, the voltage must be between 22-25V. The coil resistance is preferably above or equal 20 ohms. ⚡ Warning Instructions for Use OBDResource relay tester clearly indicates that the battery voltage (12V or 24V) must fit for testing to avoid errors due to incorrect voltage. It only supports 4 pin configurations and reminds users of correct handling to ensure accuracy. 🔧 Usage Process The red battery clip must be clamped to the positive pole of the battery and the black battery clip to the negative pole of the battery. At this point, the LED lamp indicates red. Insert the relay into the corresponding connectors. Select the appropriate pin and press "Test" to perform the test. (If the voltage of the tested battery is lower than the voltage of the relay, the LED will remain red. In this case, a higher voltage should be used for the test.) 📦 Package Included 1 × Relay Tester 1 × User Manual Diagnose Relays Like a Pro Order the OBDResource 12V/24V Automotive Relay Tester today — fast, accurate, and portable! 🔧⚡
