New (NIB) - Sporlan C-167-S-T-HH Filter Drier (New, Old Stock)
$ 16.64
Description

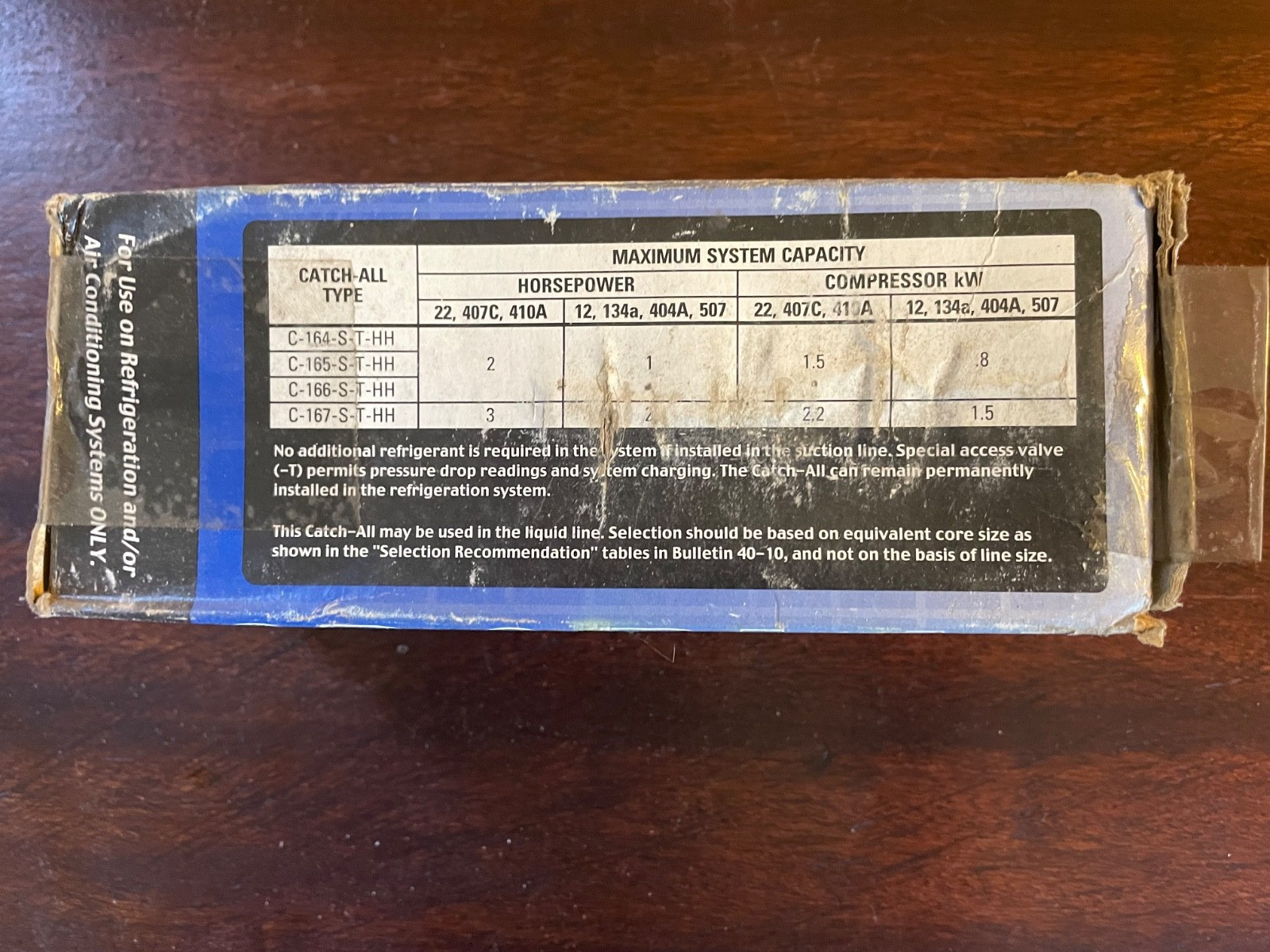

New (NIB) - Sporlan C-167-S-T-HH Filter Drier (New, Old Stock). A New (NIB) - Sporlan Catch-All C-166-S-T-HH Suction Line Filter-Drier. Product details below Core Style : "HH" Charcoal blend core designed for high acid, resin, and wax removal. Key Technical Specifications. A New (NIB) - Sporlan Catch-All C-166-S-T-HH Suction Line Filter-Drier . New, old stock from my parents HVAC business. The line drier box is a little beat up and dirty from sitting in the new line drier parts bin with several other line driers, but the line drier inside is brand new, never installed, new, old stock. Thanks for Looking!!! Product details below: Key Technical Specifications Part Number: C-166-S-T-HH (Service Item Number: 401030) . Connection Size: 3/4 inch. Connection Type: ODF Solder / Copper Sweat. Desiccant Volume: 16 cubic inches. Core Style: "HH" Charcoal blend core designed for high acid, resin, and wax removal. Maximum Rated Pressure: 650 psi. Refrigerant Compatibility: Compatible with a wide variety of standard refrigerants including R-12, R-22, R-134a, R-404A, R-407C, R-410A, R-502, and R-507. Main Functions System Clean-Up: Primarily utilized on the compressor's suction line for clean-up and protection following a severe hermetic motor burnout. Wax and Resin Removal: The activated charcoal blend core filters out harmful wax and lubricant decomposition materials. Contaminant Filtration: Traps solid debris such as scale, solder particles, carbon, sludge, and dirt. Moisture & Acid Control: Strongly adsorbs hydrofluoric and hydrochloric acids alongside system moisture to prevent ongoing component corrosion.
