Relay 200A, 12V Continuous Duty SPST 4-pin High Power Relay
$ 9.01
Description

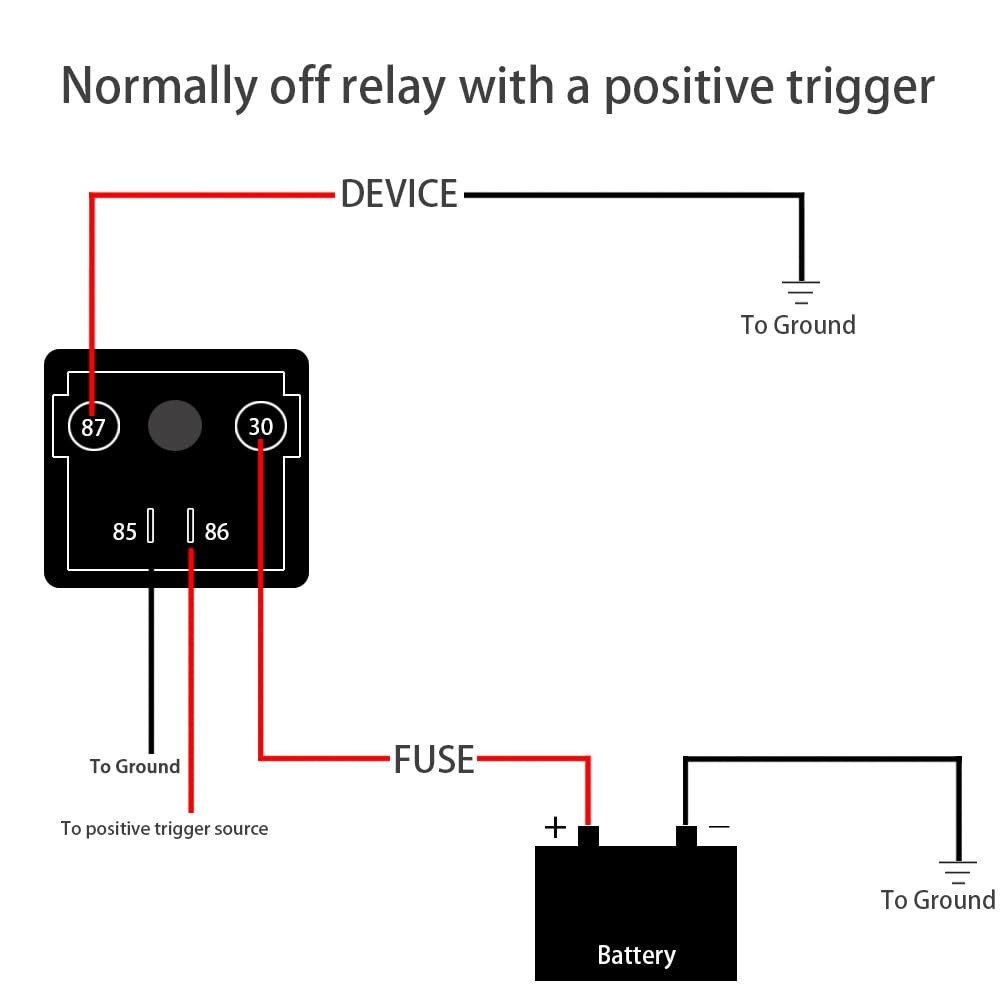

Relay 200A, 12V Continuous Duty SPST 4-pin High Power Relay. (Max Switching Current: 200A. 2), Large capacity: 200 amp high current carrying capacity, heavy duty make/break relay. Large capacity, high current carrying capacity, heavy-duty make/break relay. But never go beyond its capabilities, try to stay 10 to 15% below what the rate is for. 12 V DC 200 Amp Split Charge Relay Heavy Duty 4 Pin SPST (Single Pole Single Throw) relay Nominal coil voltage: 12 V DC Pickup voltage: 8 V DC Dropout voltage: 1.2 V DC Maximum applied voltage: 14 V DC Max Switching Current: 200A Max Switching Voltage: 14 V DC Temperature Range: -30 ~ +80 degrees Celsius Feature 1), Advantage - coil power: 1.8W; coil resistance: 80 ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the market. 2), Large capacity: 200 amp high current carrying capacity, heavy duty make/break relay. 3), Ideal for split charging or any vehicle needing a high power relay. Package Content: 1 x 200 Amp Relay Our coil power is 1.8W, and coil resistance is 80ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the marketLarge capacity, high current carrying capacity, heavy-duty make/break relay. But never go beyond its capabilities, try to stay 10 to 15% below what the rate is forRated voltage: 12vdc; Pickup voltage: 8v; Dropout voltage: 1.2v; The size of the round stud terminals: M6/6mmMatching specifications: The coil voltage and contact current must be consistent with the circuit (for example, a 12V relay should be used with a 12V circuit)Overload protection: The load current of the contacts must not exceed the rated value of the relay; otherwise, it may cause the contacts to burn out, stick together, or even catch fire
