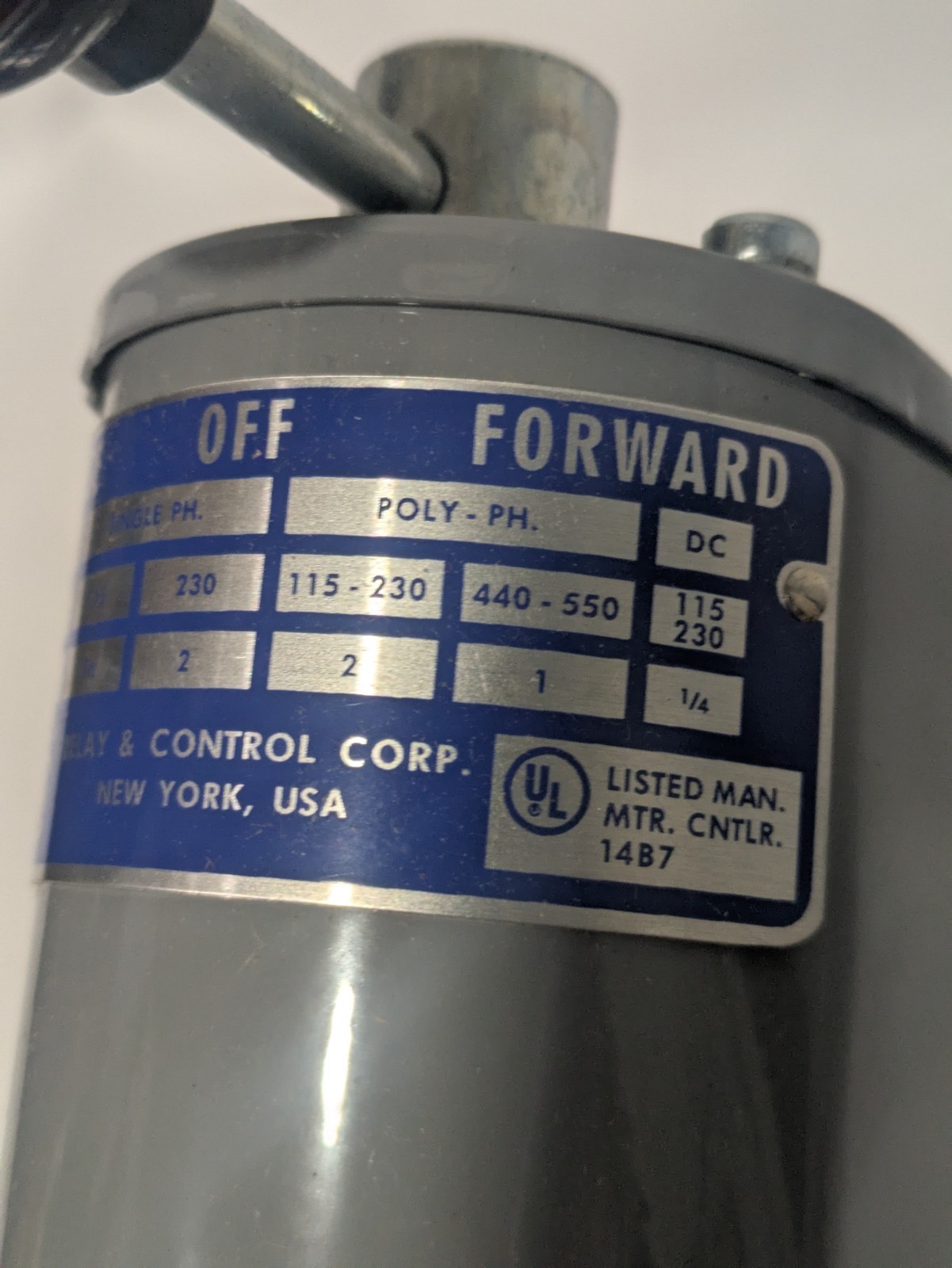

Relay and Control RS-1M Motor Reversing Drum Switch | Momentary Forward-Reverse

$ 38.48

Country of Origin: US Color: N/A Weight: 1.2000 Custom Bundle: No Bundle Description: No California Prop 65 Warning: N Depth: 3.000 Number of Poles: 2 Power Source: N/A Coil Voltage: N/A Item Length: 4.900 Model: RS-1M-SH Contact Material: Stainless Steel Item Width: 3.000 Features: Drum Switch, Switch Action Momentary, Phase Three, Reversing Capability Reversing, Horsepower @ Three Phase - 240V AC 1 hp, Horsepower @ Three Phase - 480V AC 1 hp, Mounting Style Surface, Maximum Voltage Rating 550V AC, Horsepower @ Single Phase - 120V AC 1 1/2 hp, NEMA Enclosure Rating 1, Number of Poles 2, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 208V AC 2 hp, Horsepower @ Three Phase - 600V AC Not Rated, Standards CSA, UL, Contact Material Copper Battery Size: N/A Item Height: 5.000 Type: Industrial Electrical Controls & Automation > Electrical Switches Battery Life: N/A Number of Batteries: N/A Brand: RELAY AND CONTROL Battery Included: No Battery Capacity: N/A Power: 2 hp Length: 4.900 MPN: RS-1M-SH Width: 3.000 Cable Length: N/A Motor Type: N/A

Description

Model: RS-1M (Momentary) Specs: Single Phase: 1.5 HP @ 115V / 2 HP @ 230V. Poly-Phase: 2 HP @ 115-230V / 1 HP @ 440-550V. Action: Forward-Off-Reverse (Spring return to center).
