Description

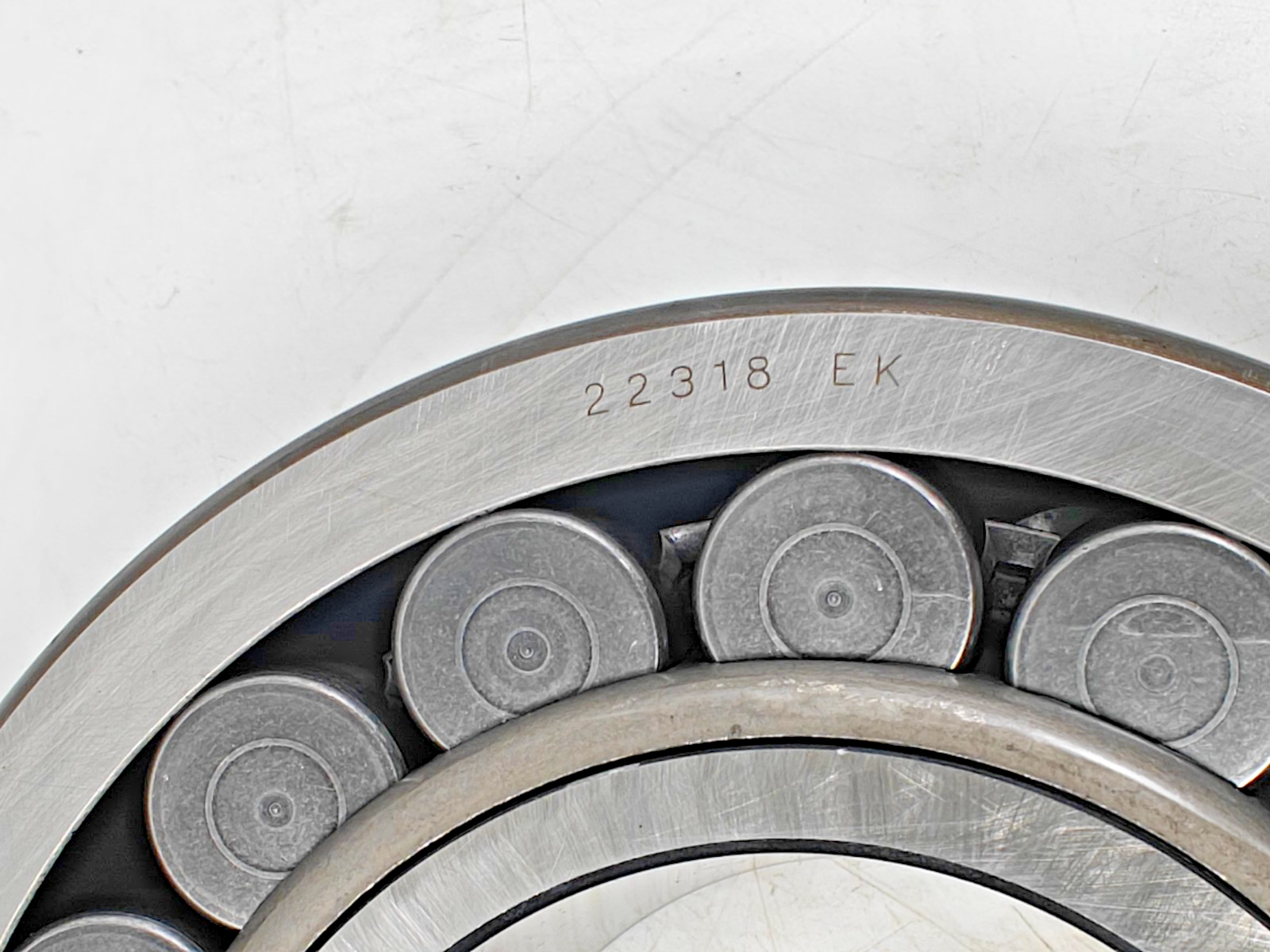

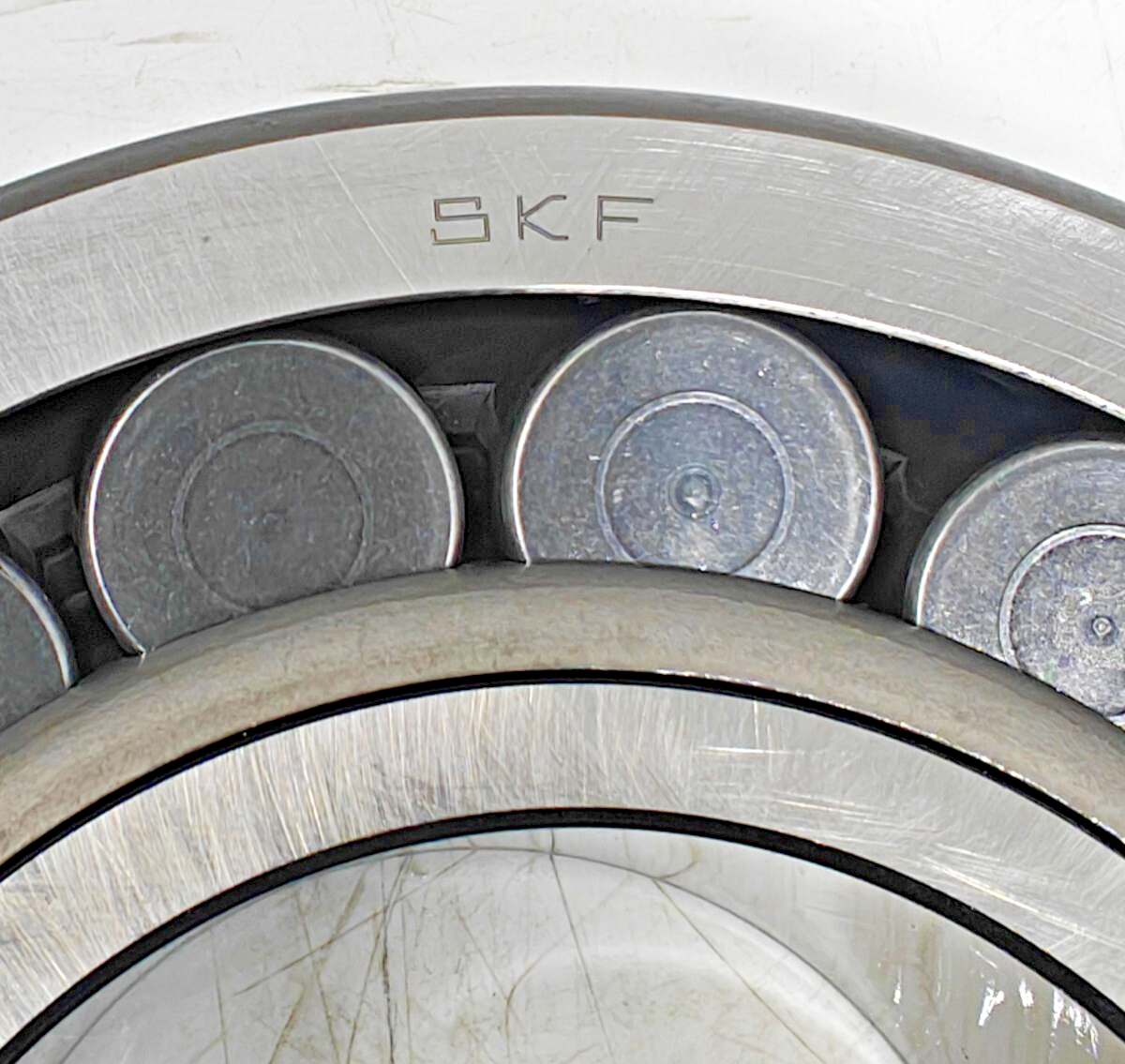

Image may differ from product. See technical specification for details. 22318 EK Spherical roller bearing with tapered bore and relubrication features Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts. Accommodate misalignment High load carrying capacity Relubrication features Low friction and long service life Increased wear resistance Overview Technical Specification CAD Compatible products Mounting More Information Display in: Metric Imperial Dimensions Bore diameter 90 mm Outside diameter 190 mm Width 64 mm Performance Basic dynamic load rating 637 kN Basic static load rating 695 kN Reference speed 2 600 r/min Limiting speed 3 600 r/min SKF performance class SKF Explorer Properties Number of rows 2 Locating feature, bearing outer ring Without Bore type Tapered 1:12 Cage Sheet metal Radial internal clearance CN Tolerance class for dimensions Normal Tolerance class for run-out P5 Sealing Without Lubricant None Relubrication feature With Logistics Product net weight 8.48 kg eClass code 23-05-09-11 UNSPSC code 31171510
Fast shipping (from India to UAE in 6 days only), Excellent seller (Fast responses and follow ups with shipped items), Love the item and looks exactly as described .. Thank you saved a lot of time and $$ !
Ordering part was fast and seamless. Seller was very active and kept me updated the whole time. Shipping was fast especially since it traveled a long distance. Will be ordering from them again.
Item was just as described, and suitable for my application. The price was fantastic and shipping from India to US in 5 days was unbelievable. Thank You!
