Description

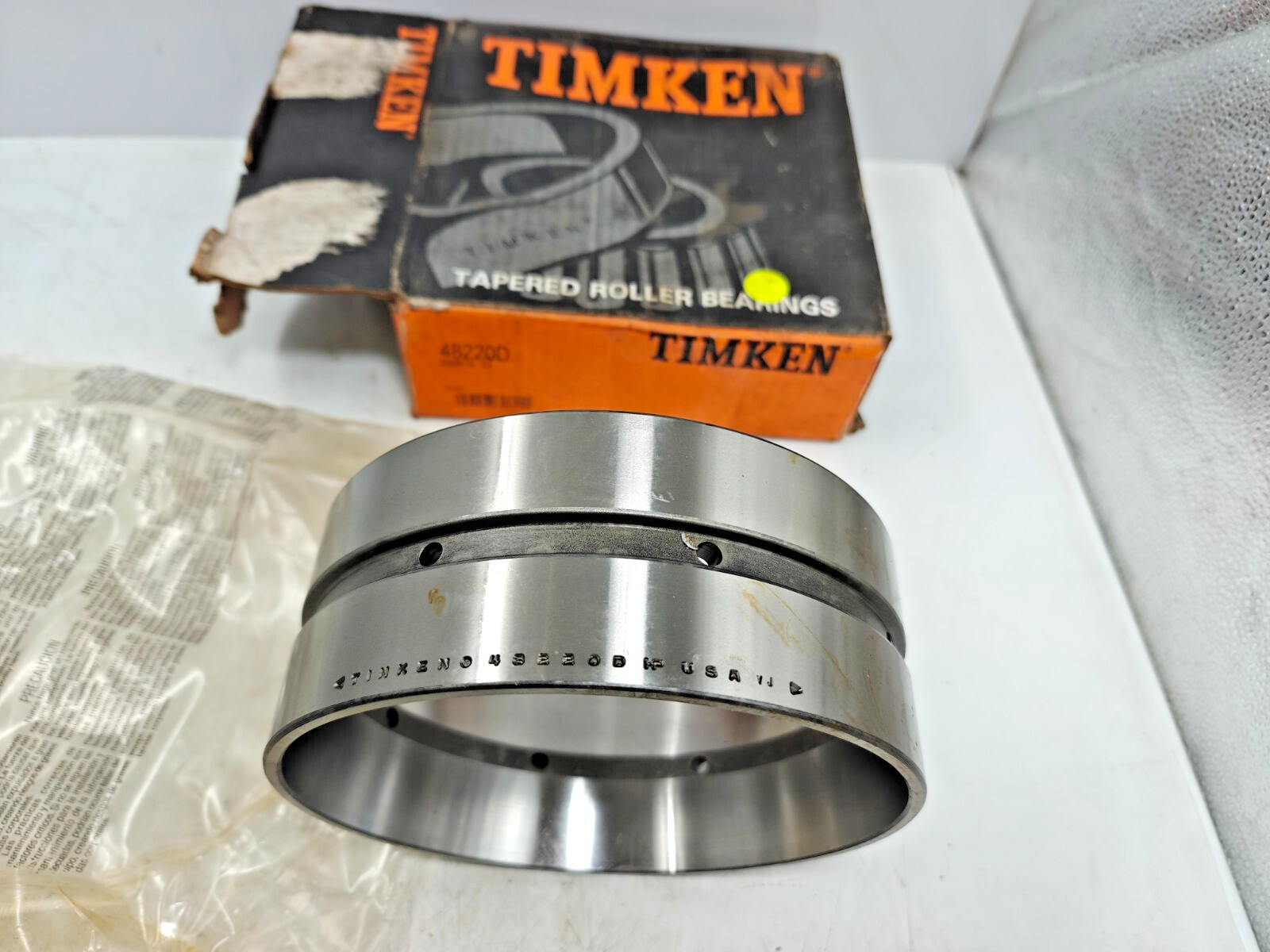

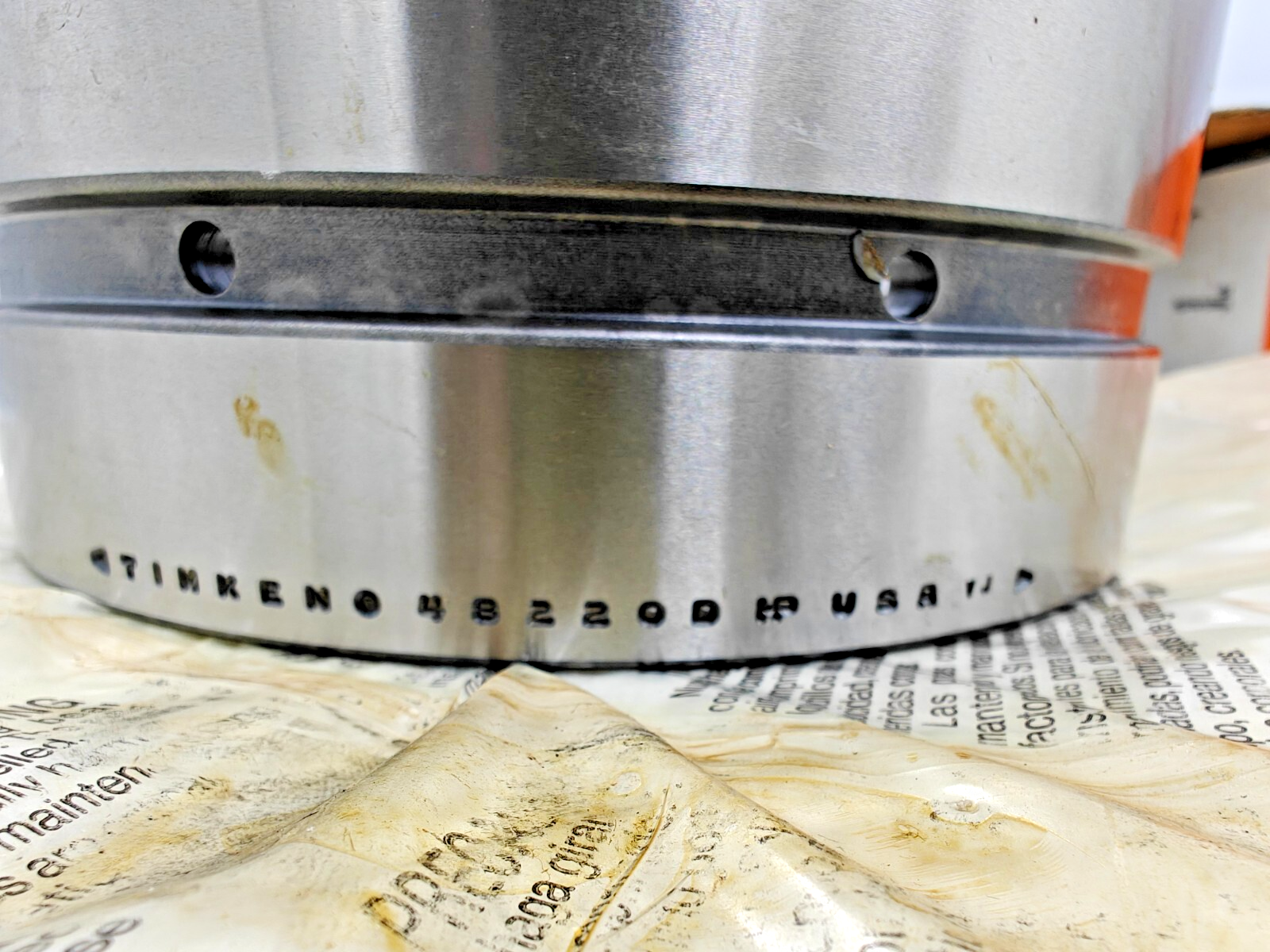

The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore. Unit of Measure Imperial Metric Both Specifications | Dimensions | Abutment and Fillet Dimensions | Factors Specifications Series 48200 Cup Part Number 48220D Design Units Imperial Dimensions D - Cup Outer Diameter 7.1875 in 182.563 mm C - Double Cup Width 2.875 in 73.025 mm Abutment and Fillet Dimensions r - Cup Backface "To Clear" Radius 1 0.030 in 0.8 mm Da - Cup Frontface Backing Diameter 6.95 in 176.02 mm Factors K - Factor 2 1.91 e - ISO Factor 3 0.31 Y1 - ISO Factor 4 2.21 Y2 - ISO Factor 5 3.29 Cg - Geometry Factor 6 0.114 1 These maximum fillet radii will be cleared by the bearing corners. 2 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 4 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 5 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 6 Geometry constant for Lubrication Life Adjustment Factor a3l.
Fast shipping (from India to UAE in 6 days only), Excellent seller (Fast responses and follow ups with shipped items), Love the item and looks exactly as described .. Thank you saved a lot of time and $$ !
Ordering part was fast and seamless. Seller was very active and kept me updated the whole time. Shipping was fast especially since it traveled a long distance. Will be ordering from them again.
Item was just as described, and suitable for my application. The price was fantastic and shipping from India to US in 5 days was unbelievable. Thank You!
