Timken Tapered Roller Bearing Cone & Cup Assembly 3.5 Inch Bore L217849 L217813
$ 184.28
Description

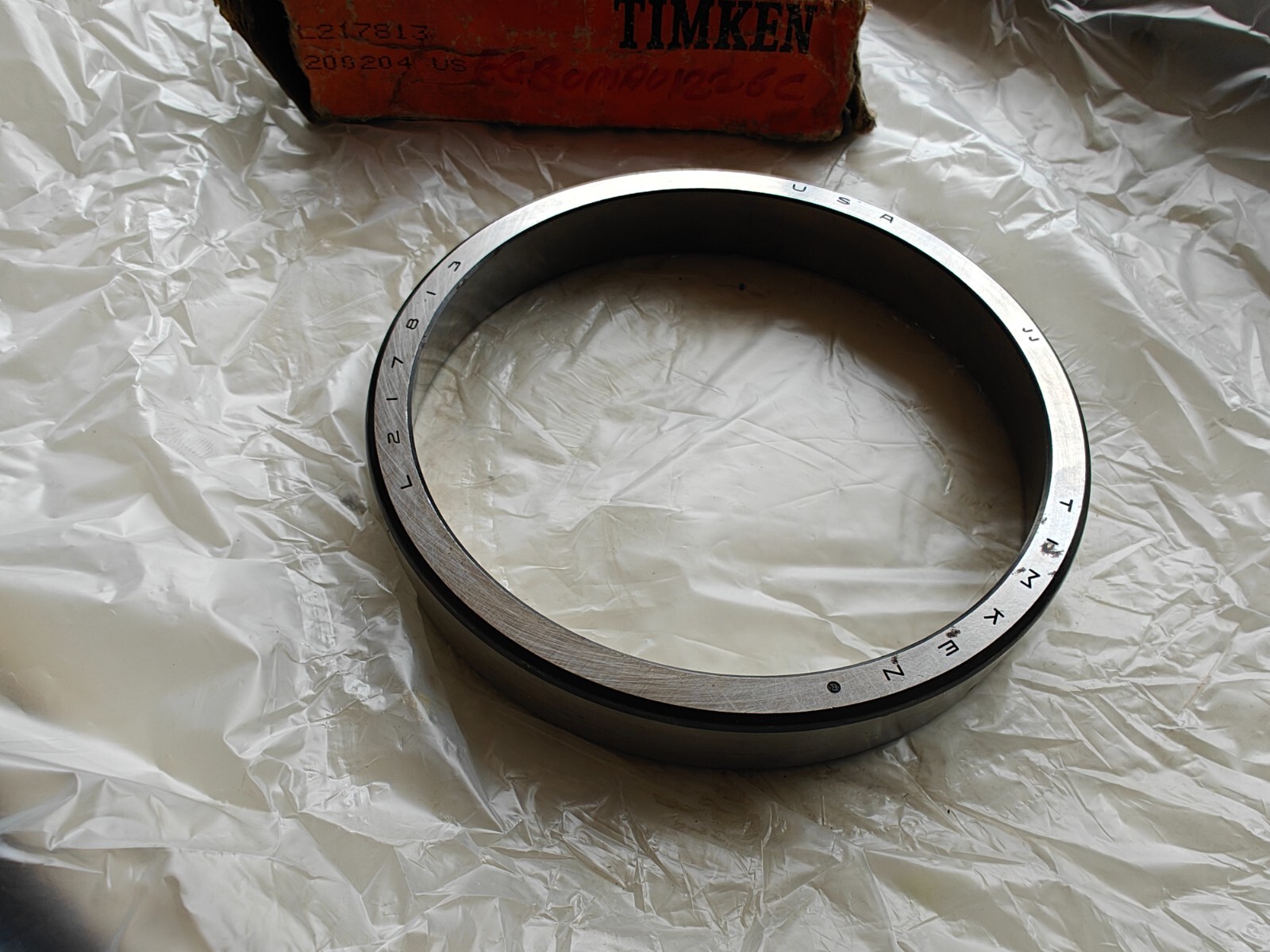

L217849 L217813 NEW TIMKEN Tapered Roller Bearing Cone&Cup Assembly. 3 1/2" BORE This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. Specifications | Dimensions | Abutment and Fillet Dimensions | Basic Load Ratings | Factors Specifications Series L217800 Cone Part Number L217849 Cup Part Number L217813 Design Unit Inch Cage Material Stamped Steel Related Assembly Number(s) L217849-90067 L217849-906A6 Dimensions d - Bore 3 1/2 in 88.900 mm D - Cup Outer Diameter 5 in 127 mm B - Cone Width 0.8125 in 20.638 mm C - Cup Width 0.7500 in 19.050 mm T - Bearing Width 0.8125 in 20.638 mm Abutment and Fillet Dimensions R - Cone Backface "To Clear" Radius 1 0.06 in 1.5 mm r - Cup Backface "To Clear" Radius 2 0.06 in 1.52 mm da - Cone Frontface Backing Diameter 3.7 in 94 mm db - Cone Backface Backing Diameter 3.82 in 97 mm Da - Cup Frontface Backing Diameter 4.80 in 121.90 mm Db - Cup Backface Backing Diameter 4.61 in 117.09 mm Ab - Cage-Cone Frontface Clearance 0.1 in 2.5 mm Aa - Cage-Cone Backface Clearance 0.01 in 0.3 mm a - Effective Center Location 3 0 in 0 mm Basic Load Ratings C90 - Dynamic Radial Rating (90 million revolutions) 4 5400 lbf 24000 N C1 - Dynamic Radial Rating (1 million revolutions) 5 20800 lbf 92600 N C0 - Static Radial Rating 35200 lbf 156000 N C a90 - Dynamic Thrust Rating (90 million revolutions) 6 3050 lbf 13600 N Factors K - Factor 7 1.77 e - ISO Factor 8 0.33 Y - ISO Factor 9 1.82 G1 - Heat Generation Factor (Roller-Raceway) 111.3 G2 - Heat Generation Factor (Rib-Roller End) 74.8 Cg - Geometry Factor 10 0.115 1 These maximum fillet radii will be cleared by the bearing corners. 2 These maximum fillet radii will be cleared by the bearing corners. 3 Negative value indicates effective center inside cone backface. 4 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values. 5 Based on 1 x 10 6 revolutions L 10 life, for the ISO life calculation method. 6 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values for a single-row, C 90(2) is the two-row radial value. 7 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 8 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 9 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 10 Geometry constant for Lubrication Life Adjustment Factor a3l.
Fast shipping (from India to UAE in 6 days only), Excellent seller (Fast responses and follow ups with shipped items), Love the item and looks exactly as described .. Thank you saved a lot of time and $$ !
Ordering part was fast and seamless. Seller was very active and kept me updated the whole time. Shipping was fast especially since it traveled a long distance. Will be ordering from them again.
Item was just as described, and suitable for my application. The price was fantastic and shipping from India to US in 5 days was unbelievable. Thank You!
