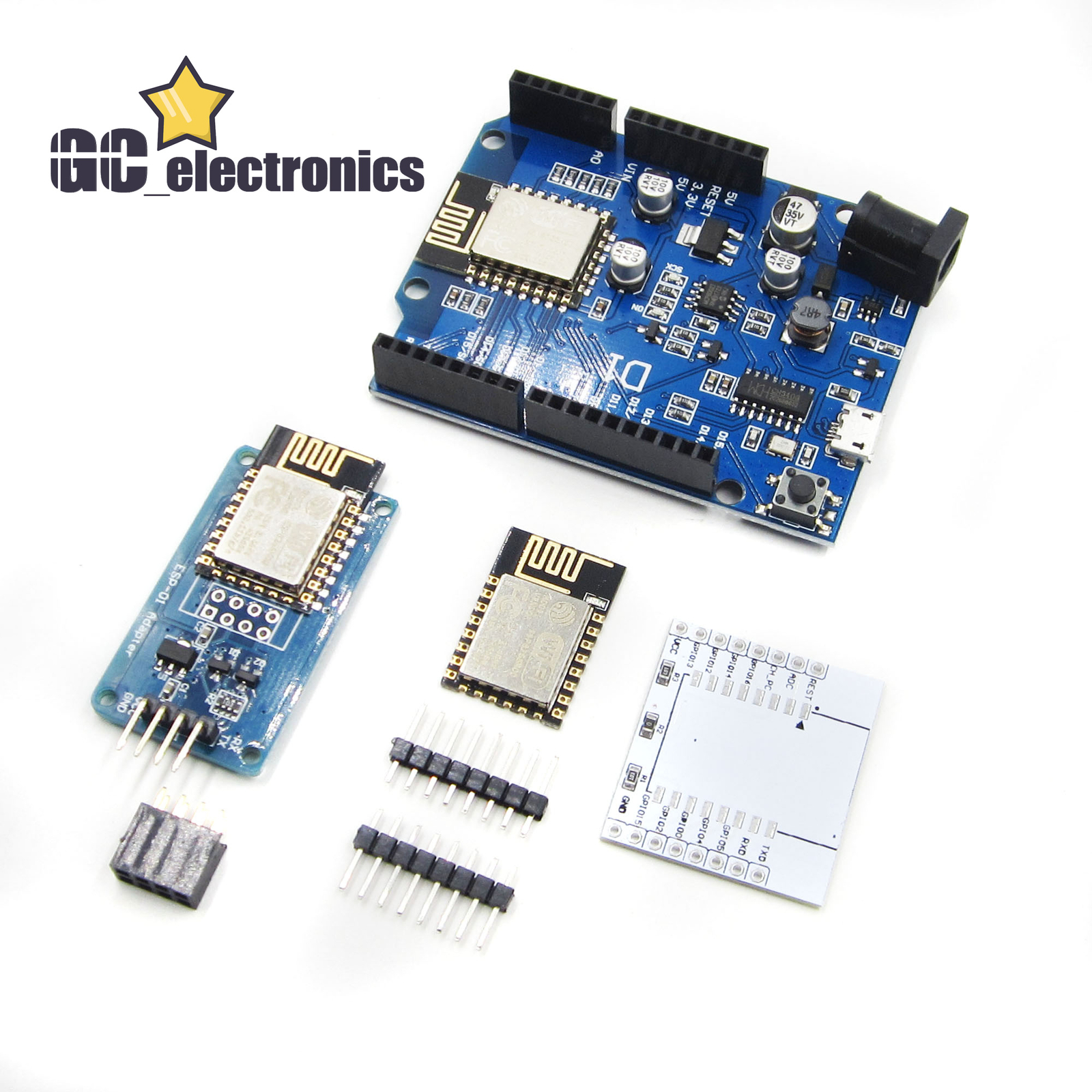

UNO MEGA2560 ESP8266 ESP-12E L293D Motor NodeMCU Expansion Board For Arduino A3G

Description

Store Categories Store Categories eBay Motor Fashion Books, Movies & Music Electronics Collectibles & Art Home & Garden Sporting Goods Toys & Hobbies Business & Industrial Health & Beauty Other Product View Detail 2*L293D IC Part No:L293D Pin No: 16 pins Package included：2 x L293D L293 L293B DIP/SOP Push-Pull Four-Channel Motor Driver IC L293D Module L293D is a monolithic integrated, high voltage, high current, 4-channel driver.Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what’s known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor. - 2 interface for 5V Servo connected to the high-resolution dedicated timer - no jitter! - Can drive 4 DC motors or 2 stepper motors or 2 Servo - Up to 4 bi-directional DC motors with individual 8-bit speed selection - Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping. - 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC - Pull down resistors keep motors disabled during power-up - reset button - 2 external terminal power interface, for seperate logic/motor supplies - Tested compatible for Mega, Diecimila & Duemilanove Package Included:1 x Motor Drive Shield Expansion Board L293D Arduino Duemilanove Mega UNO L293D 4WD 4 DC Stepper motor drive Adopts L293D chip it can drive 4 DC motors 4 Channel Stepper motor port Max Current:1 A Driver: L293D Dual H Bridge DC Motor Driver IC Driven part of the input voltage Vs: +5 ~ 16V (or +7-35V depending on power supply needs) The logical part of the work current is: 0 - 36mA Drive part of the operating current Io: 2A Maximum power dissipation: 20W (T = 75 degree Celsius) Control signal input level(IN1 IN2 IN3 IN4 IN5 IN6 IN7 IN8): High level: 2.3V ≤ Vin ≤ Vss Low:-0.3V ≤ Vin ≤ 1.5V Operating temperature: -25 C ~ +130 C Drive Type: Dual high-power H-bridge driver Size: 90mm × 37mm Package Included：1 x L293D Duel-H Bridge 4WD 4 DC Stepper motor driver shield module for Smart Car L293D shield New L293D motor shield, the input voltage DC4.5-25V 600mA OUTPUT CURRENT CAPABILITY PER CHANNEL 1.2A PEAK OUTPUT CURRENT (non repetitive)PER CHANNEL ENABLE FACILITY OVERTEMPERATURE PROTECTION LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V(HIGH NOISE IMMUNITY) INTERNAL CLAMP DIODES The Device is a mnolithic integrated high voltage,high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors .To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz. Package included：1 x For Arduino UNO MEGA2560 R3 Mini L293D Motor Drive Shield Module Expansion Board L293D Sheild for ESP 12E Power input: Motor power supply (VM): 4.5V ~ 36V, can be powered separately Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control Logic Operating current Iss: ≤60mA (Vi = L), ≤22mA (Vi = H) Drive part of the work current Io: ≤1.2A Maximum power dissipation: 4W (T = 90 ℃) Control signal input level: High: 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V Working temperature: -25 ℃ ~ + 125 ℃ Drive Type: Dual high-power H-bridge driver ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor) Expand two-way motor-driven, two-way direct drive motor Onboard power switch Motor power, control power separation; In the experiment, by short-circuiting block the merger, the VIN and VM short, while power to the motor and the control board Notice: When inserted into the ESP-12E module, please note the direction consistent with an expansion board antenna The use of short modules that can simultaneously control board and motor. Package included：1PCS x L293D Wifi Motor Drive Shield Module For Arduino NodeMcu Lua ESP-12E ESP8266 Warranty and Guarantee Feedback Payment About us Shipment Warranty and Guarantee WE PROMISE YOU CAN GET THE ITEMS YOU PAID OR REFUND. To USA: Send by e-package. To other countries: Order more than $30, provide free tracking number. Order less than $30,customer can pay $2 to get a tracking number. We located in the biggest electronic market in China--HQB(Shenzhen) ,Specialist in ICs over 10 years, we seek to establish long-term business relationships. Feedback We appreciate positive feedback . we always try our best to service our customers . so if you have ant question ,PLEASE DON’T HESITATE TO CONTACT US IMMEDIATEDLY, we are always here to offer help . Payment We prefer PayPal .For purchasing multiple items , please contact us for a combined invoice . generally we would like to receive payment thin 48 hours if . About us PLEASE BUY WITH CONFIDENCE We specialize in electronic components . ICs, Capacitors, Diodes, Resistors,LEDs, NEW , ORIGINAL parts . please buy with confidence .We offer NO-QUESTION-REFUND Shipment We provide airmail service with good package . The items will be shipped within the nest 2 business days after we received the payment . when you buy multiple items ,your shipping cost will be combined with discount . go to my store
