Waterproof Relay Kit, 12V 40A, 4 Pin SPST, Heavy Duty 14 AWG Tinned Copper Wires
$ 5.81
Description

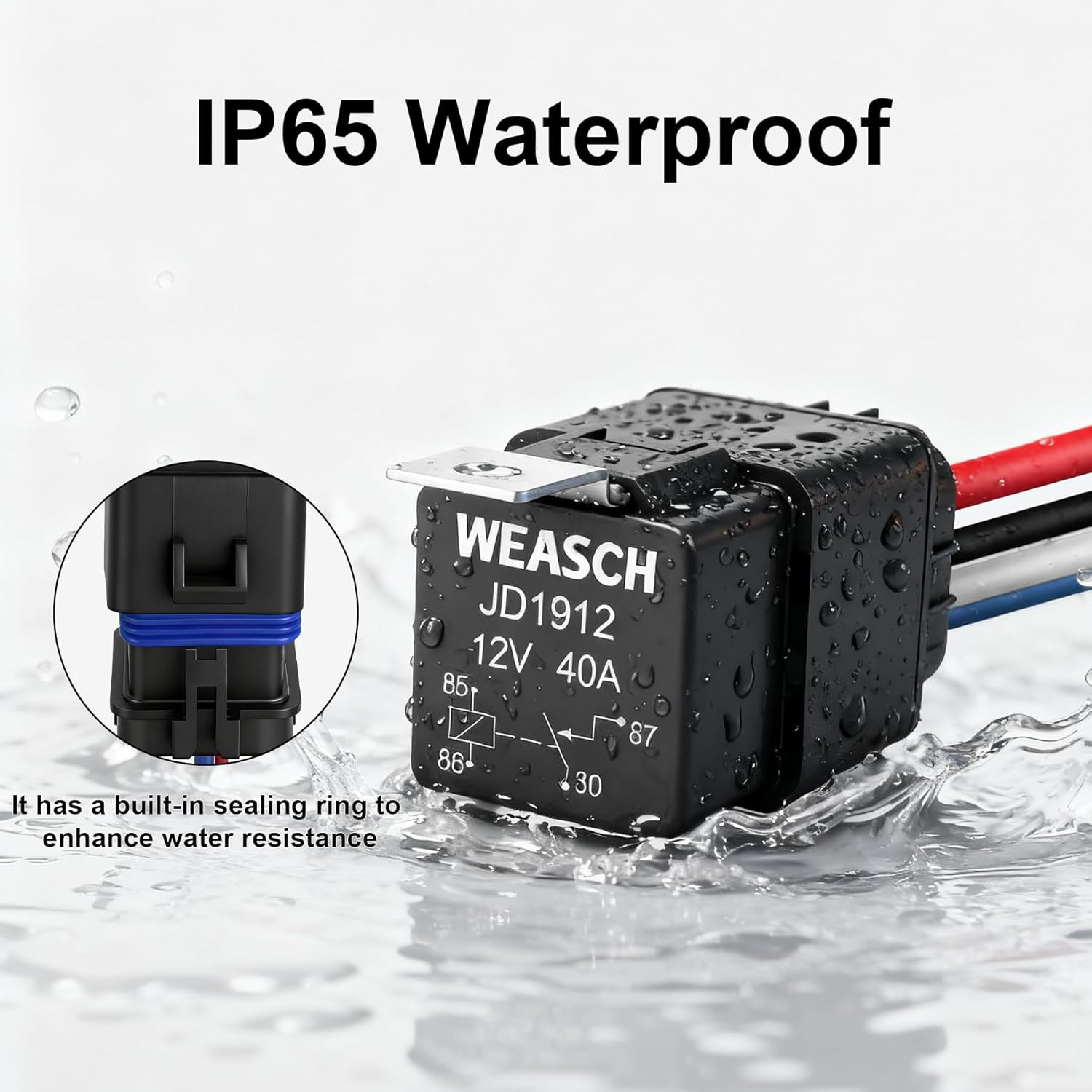

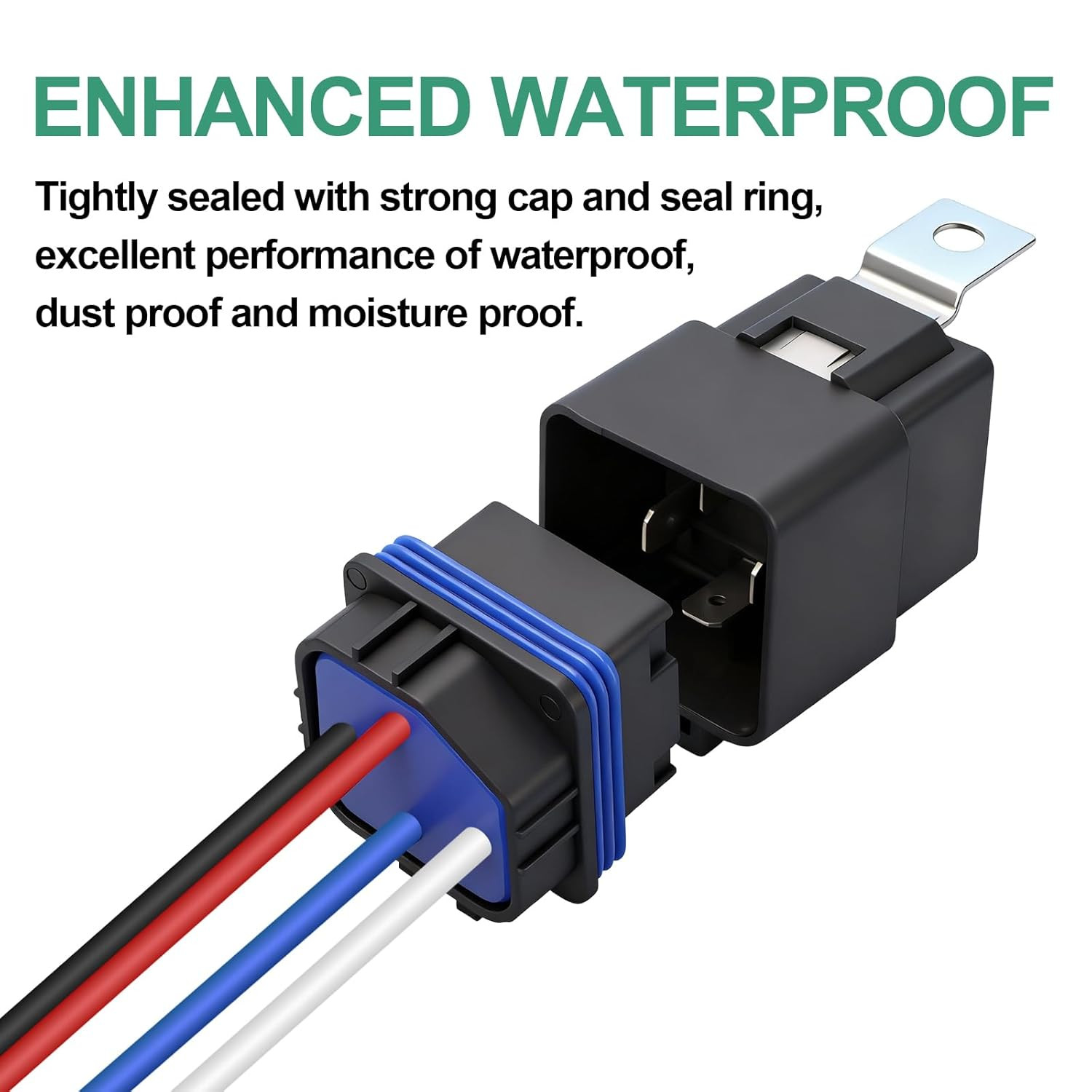

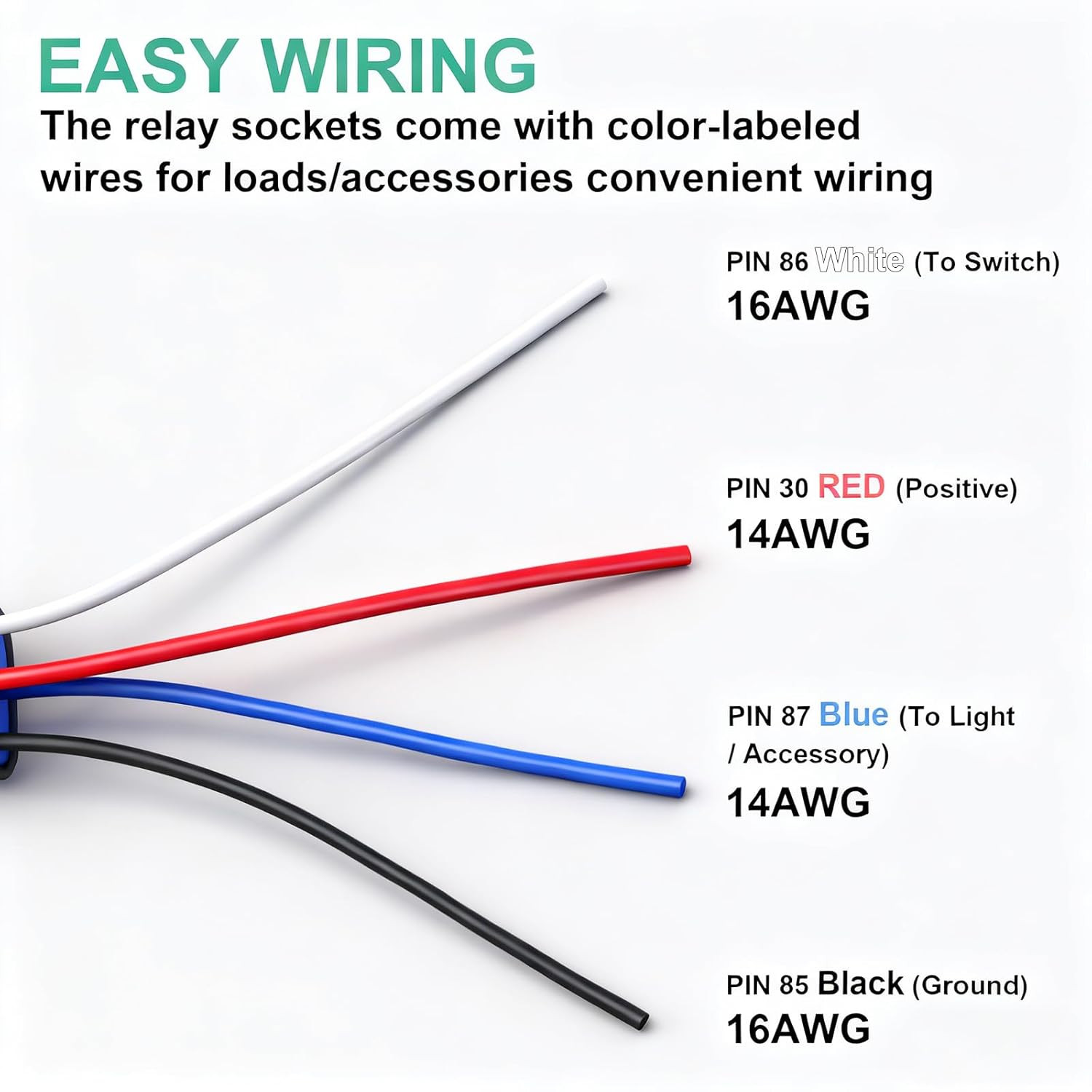

Waterproof Relay Kit, 12V 40A, 4 Pin SPST, Heavy Duty 14 AWG Tinned Copper Wires. Switching Current 40A 40A 40A 40A 40A 40A 30A. Rated Switching Current: 40A. Tinned copper wire has good conductivity and corrosion resistance, and is more resistant to oxidation. Rated Switching Current 40A. Rated Coil Voltage: 12V DC; Max. Rated Switching Current: 40A Coil Power: 1.8W; Coil Resistance: 80 Ω Tinned copper wire has good conductivity and corrosion resistance, and is more resistant to oxidation Wire Specifications: Black 16AWG - Ground (85), Red 14AWG - VDC (30), White 16AWG - Trigger (86) and Blue 14AWG - Output N/O (87) The relay and wiring harness are well sealed, with excellent waterproof and dustproof performance, and plug and play Product description PARAMETER SPECIFICATION Contact Form 1A Rated Coil Voltage 12V DC Max. Rated Switching Current 40A Dielectric Strength 500VAC/M Coil Power 1.8W Coil Resistance 80Ω Rated Load 1A:40A 13.5VDC 20A 27VDC Max.Operating Voltage 27VDC Operate/Release Time ≤10ms Release Time ≤5ms Contact Material AgSno2 Ambient Temperature -40°C~+85°C Mechanical Llife 1000000 Electrical Life 100000 Insulation Resistance 100MΩ A variety of styles to choose from Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.8 out of 5 stars 96 4.0 out of 5 stars 46 4.4 out of 5 stars 45 4.2 out of 5 stars 19 4.0 out of 5 stars 11 4.7 out of 5 stars 54 4.8 out of 5 stars 53 Price $6.99 $ 6. 99 $7.79 $ 7. 79 $5.99 $ 5. 99 $6.29 $ 6. 29 $7.29 $ 7. 29 $6.59 $ 6. 59 $6.39 $ 6. 39 Switching Current 40A 40A 40A 40A 40A 40A 30A Rated Coil Voltage DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V Contact SPST SPDT SPST SPDT SPST SPDT SPST With or without backrest Metal Metal No No Plastic Plastic Metal Whether with wiring harness ✔ ✔ ✘ ✘ ✔ ✔ ✔
