NTN M86643 M86610 Tapered Roller Bearing Cone and Cup Set 4T Japan
$ 25.88
Description
Expand Image Tapered roller bearing, pressed steel cage The single row tapered roller bearing is available in metric dimensions (ISO 355 and JIS B 1512 standards) and in inches (ABMA standard, metric series including J). The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition. This kit contains the following reference(s) 4T-M86643 4T-M86610 Technical datasheet 3D file Product Definition PRODUCT DEFINITION Brand NTN d - Internal diameter 25,4 mm D - External diameter 64,292 mm B - Bearing/Inner ring width 21,433 mm C - Outer ring width 16,67 mm T - Total width 21,433 mm d1 - External diameter inner ring 50 mm a - Charge load application point 18,133 mm Mass 0,372 kg PRODUCT PERFORMANCE C - Dynamic load 57,5 kN C0 - Static load 64,5 kN Cu - Fatigue limit load 7,9 kN A2 - Rating life coefficient 1 e - Coefficient 0.55 Y0 - Static axial load coefficient 0.6 Y2 - Upper axial load coefficient 1.1 N lim - Oil lubrication limit speed 8100 tr/min N lim - Grease lubrication limit speed 6100 tr/min Tmin - Min operating temperature -40 °C Tmax - Max operating temperature 120 °C ABUTMENT da max - Max shoulder diameter IR 36,5 mm db min - Min IR shoulder diameter 38 mm Da max - Max shoulder diameter OR 54 mm Db min - Min OR shoulder diameter 61 mm ra max - Max fillet radius 1,5 mm r1a - Max fillet radius 1,5 mm
Fast shipping (from India to UAE in 6 days only), Excellent seller (Fast responses and follow ups with shipped items), Love the item and looks exactly as described .. Thank you saved a lot of time and $$ !
Ordering part was fast and seamless. Seller was very active and kept me updated the whole time. Shipping was fast especially since it traveled a long distance. Will be ordering from them again.
Item was just as described, and suitable for my application. The price was fantastic and shipping from India to US in 5 days was unbelievable. Thank You!
Related products
7224B . MP . UA / 7224 B FAG Angular Contact Ball Bearing 120x215x40mm NEW 7224B
$ 200.64SKF 29418 E Thrust Spherical Roller Bearing 90x190x60mm ,, 29418E SKF Explorer
$ 316.29Timken Double Row Tapered Roller Bearing LM654649 LM654610 Cup with 2 Cones

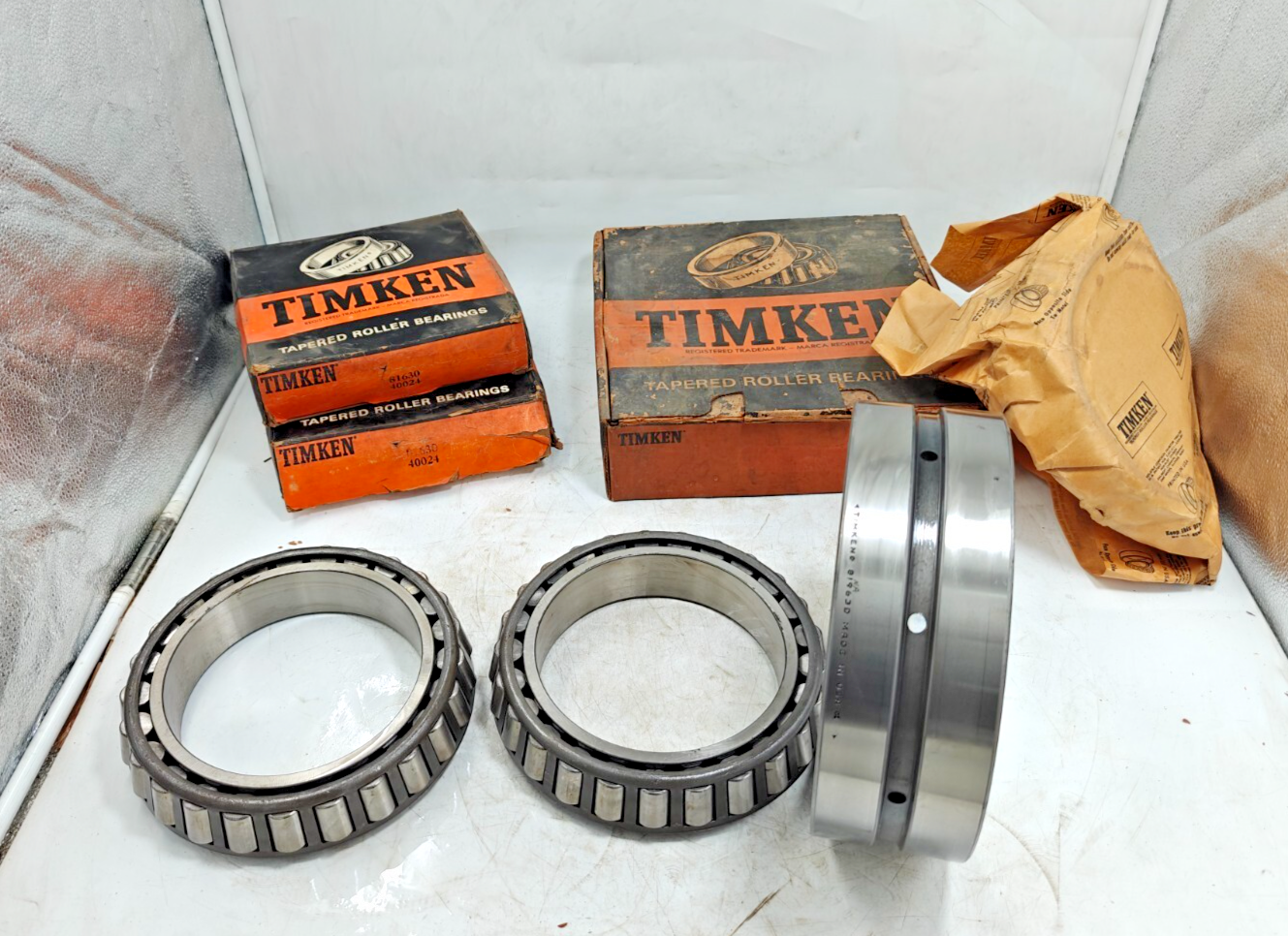

$ 1848.1Timken 81630-81963D Taper Roller Bearing Double Cup & Cone Set USA Made
