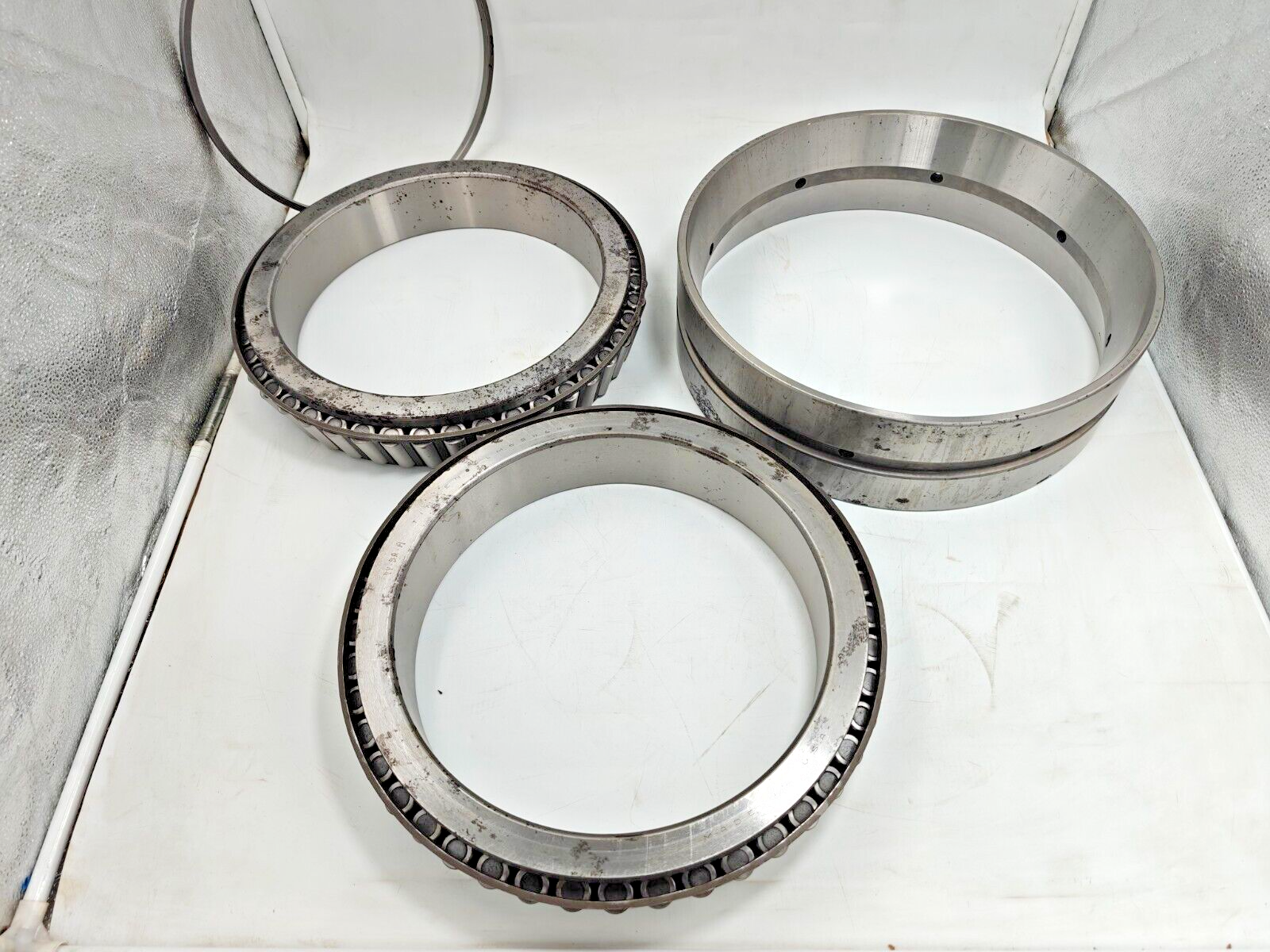

Timken Double Row Tapered Roller Bearing LM654649 LM654610 Cup with 2 Cones
$ 1848.1
Description
LM654649 / LM654610 D Timken Tapered Roller Bearing Double Row Cup with 2 Cones The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore. Unit of Measure Imperial Metric Both Specifications | Dimensions | Abutment and Fillet Dimensions | Basic Load Ratings | Factors Specifications Series LM654600 Cone Part Number LM654649 Cup Part Number LM654610CD Design Unit Inch Cage Material Stamped Steel Related Assembly Number(s) LM654649-90074 LM654649-90081 LM654649-90082 LM654649-90083 LM654649-90084 LM654649-90085 LM654649-90086 LM654649-90087 LM654649-902A3 LM654649-902A5 LM654649-902A7 LM654649-902A9 Dimensions d - Bore 11.2500 in 285.750 mm D - Cup Outer Diameter 14.9960 in 380.898 mm B - Cone Width 2.5625 in 65.088 mm C - Double Cup Width 4.2500 in 107.950 mm T - Bearing Width across Cones 5.4999 in 139.697 mm Abutment and Fillet Dimensions R - Cone Backface "To Clear" Radius 1 0.14 in 3.600 mm r - Cup Backface "To Clear" Radius 2 0.06 in 1.5 mm db - Cone Backface Backing Diameter 12.05 in 306 mm Da - Cup Frontface Backing Diameter 14.53 in 368.05 mm Aa - Cage-Cone Backface Clearance 0.27 in 6.9 mm a - Effective Center Location 3 0.45 in 11.4 mm Basic Load Ratings C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) 4 42100 lbf 187000 N C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) 5 283000 lbf 1260000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) 6 73300 lbf 326000 N C a90 - Dynamic Thrust Rating (90 million revolutions) 7 31100 lbf 138000 N Factors K - Factor 8 1.35 e - ISO Factor 9 0.43 Y1 - ISO Factor 10 1.56 Y2 - ISO Factor 11 2.33 Cg - Geometry Factor 12 0.174 1 These maximum fillet radii will be cleared by the bearing corners. 2 These maximum fillet radii will be cleared by the bearing corners. 3 Negative value indicates effective center inside cone backface. 4 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values. 5 Based on 1 x 10 6 revolutions L 10 life, for the ISO life calculation method. 6 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values for a single-row, C 90(2) is the two-row radial value. 7 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values for a single-row, C 90(2) is the two-row radial value. 8 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 9 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 10 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 11 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 12 Geometry constant for Lubrication Life Adjustment Factor a3l.
Fast shipping (from India to UAE in 6 days only), Excellent seller (Fast responses and follow ups with shipped items), Love the item and looks exactly as described .. Thank you saved a lot of time and $$ !
Ordering part was fast and seamless. Seller was very active and kept me updated the whole time. Shipping was fast especially since it traveled a long distance. Will be ordering from them again.
These are some great sellers. Very responsive. Had issue with customs and they went above and beyond to resolve this. Will 100% use again.
