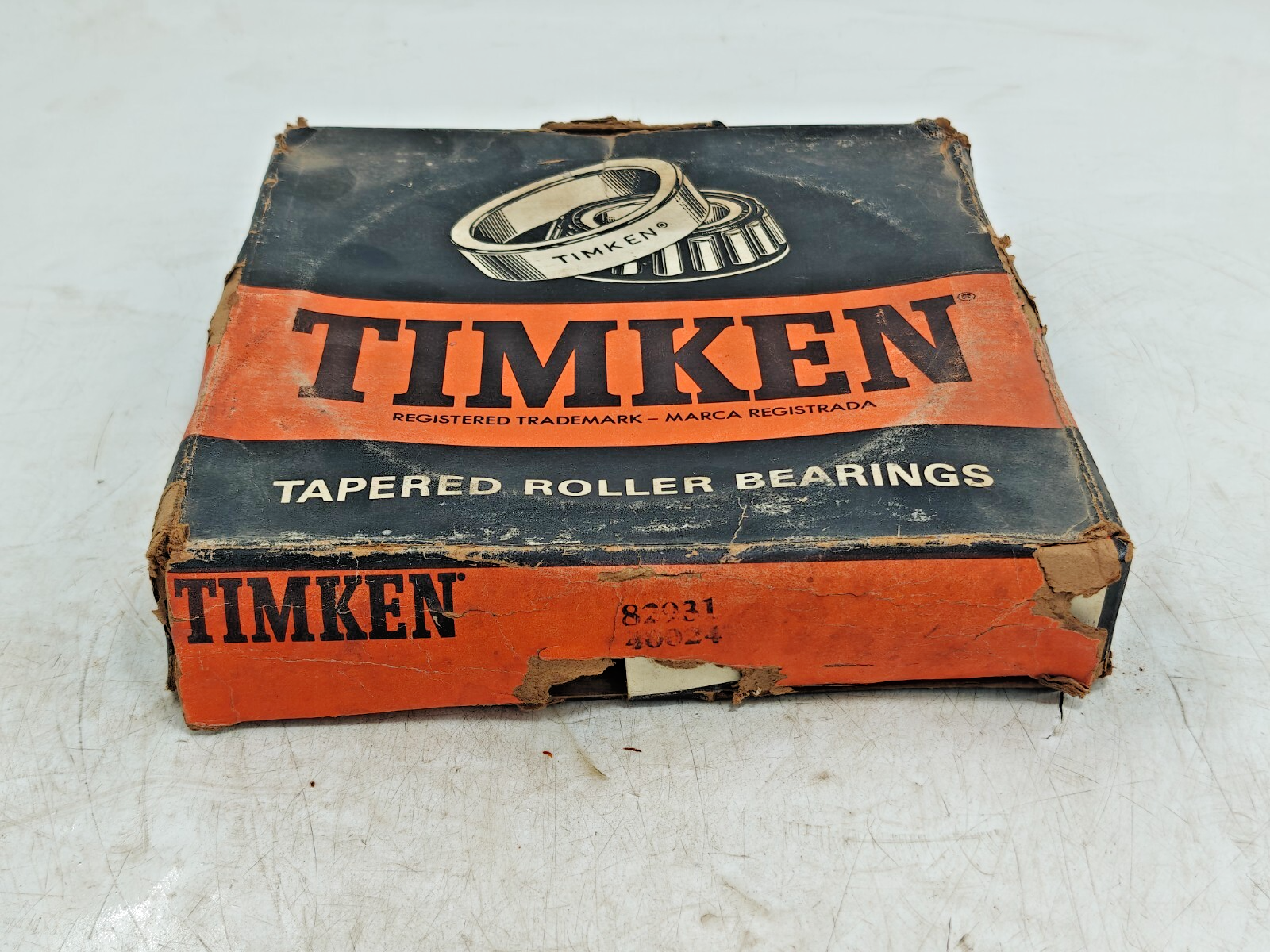

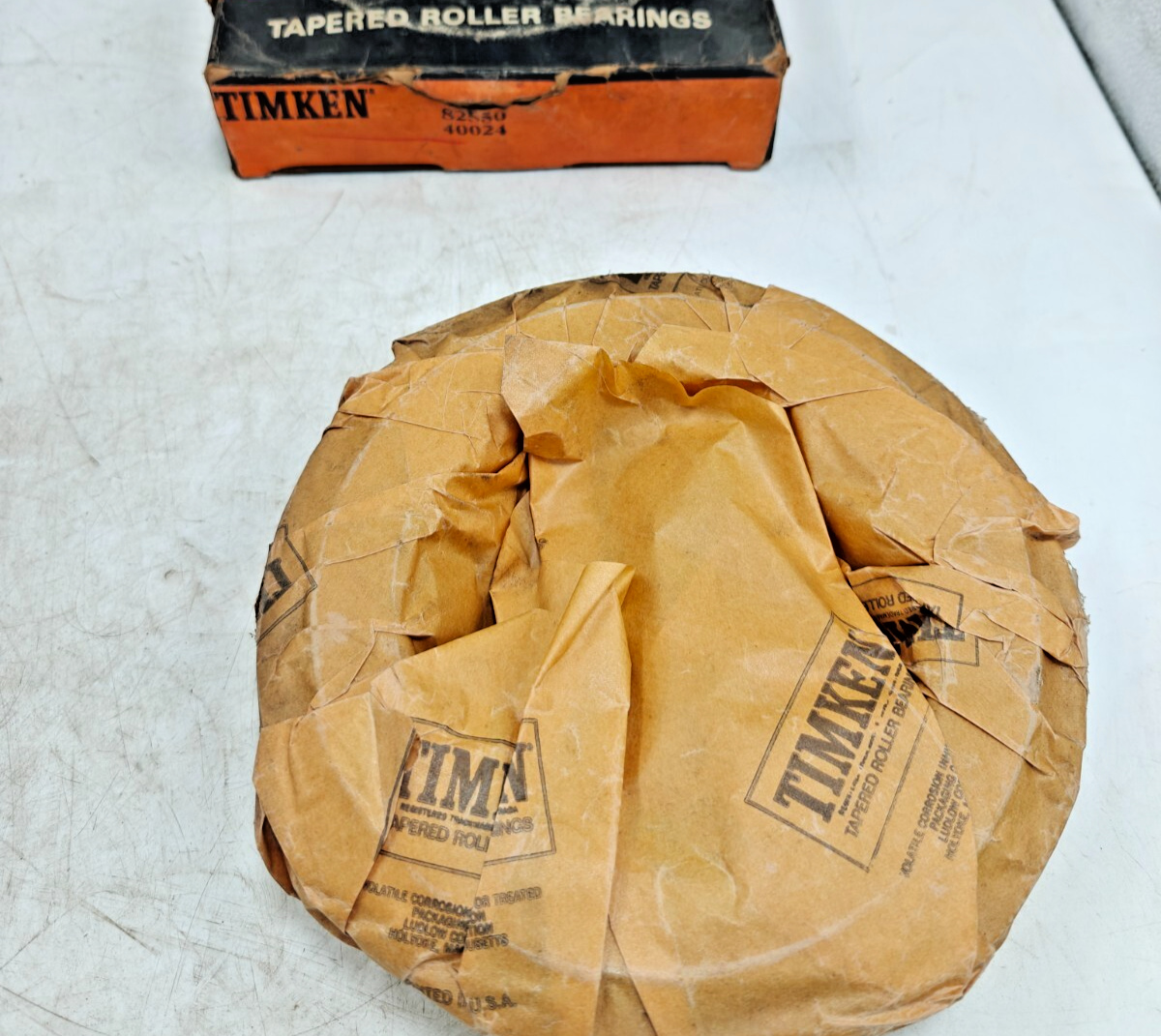

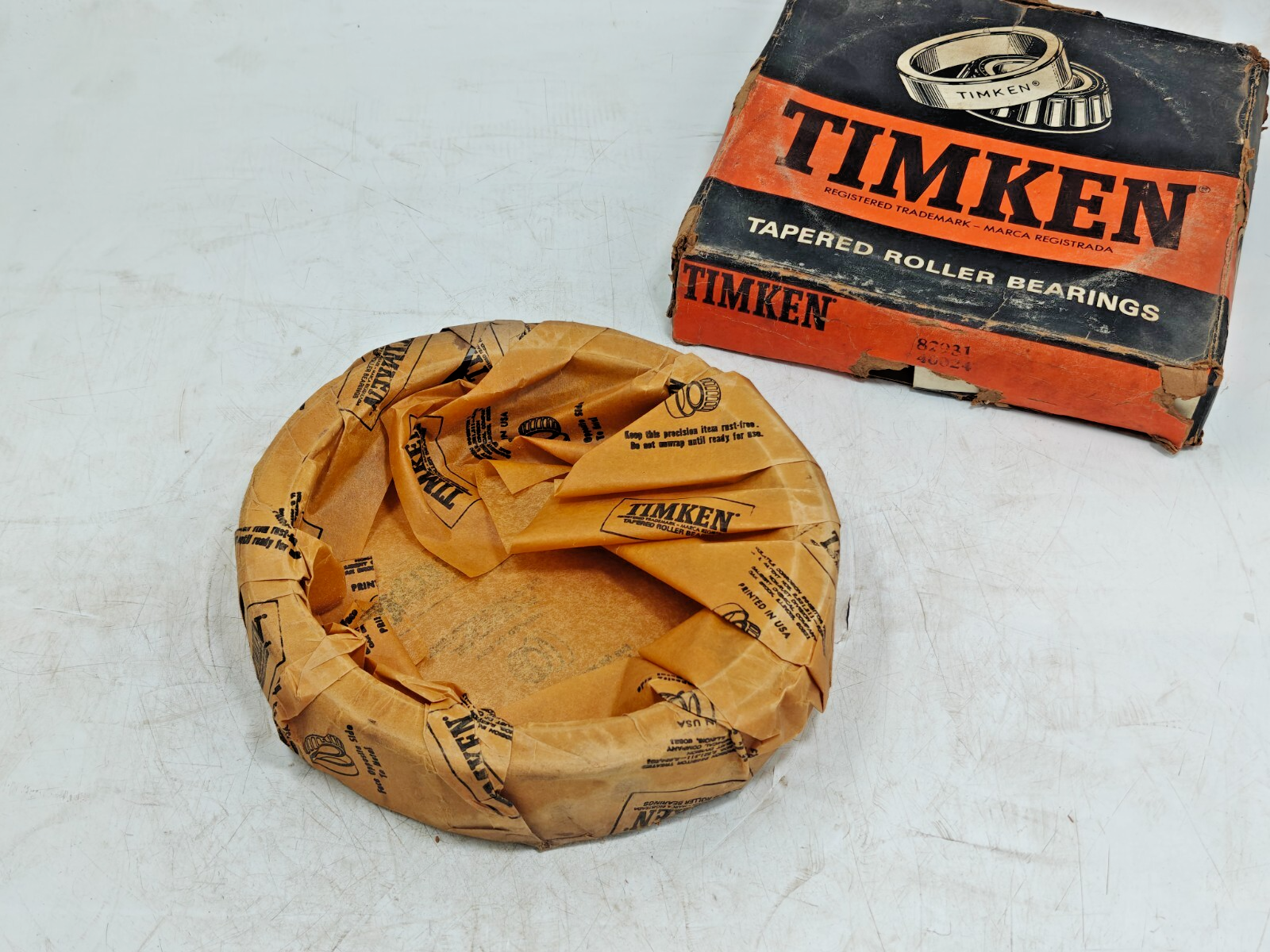

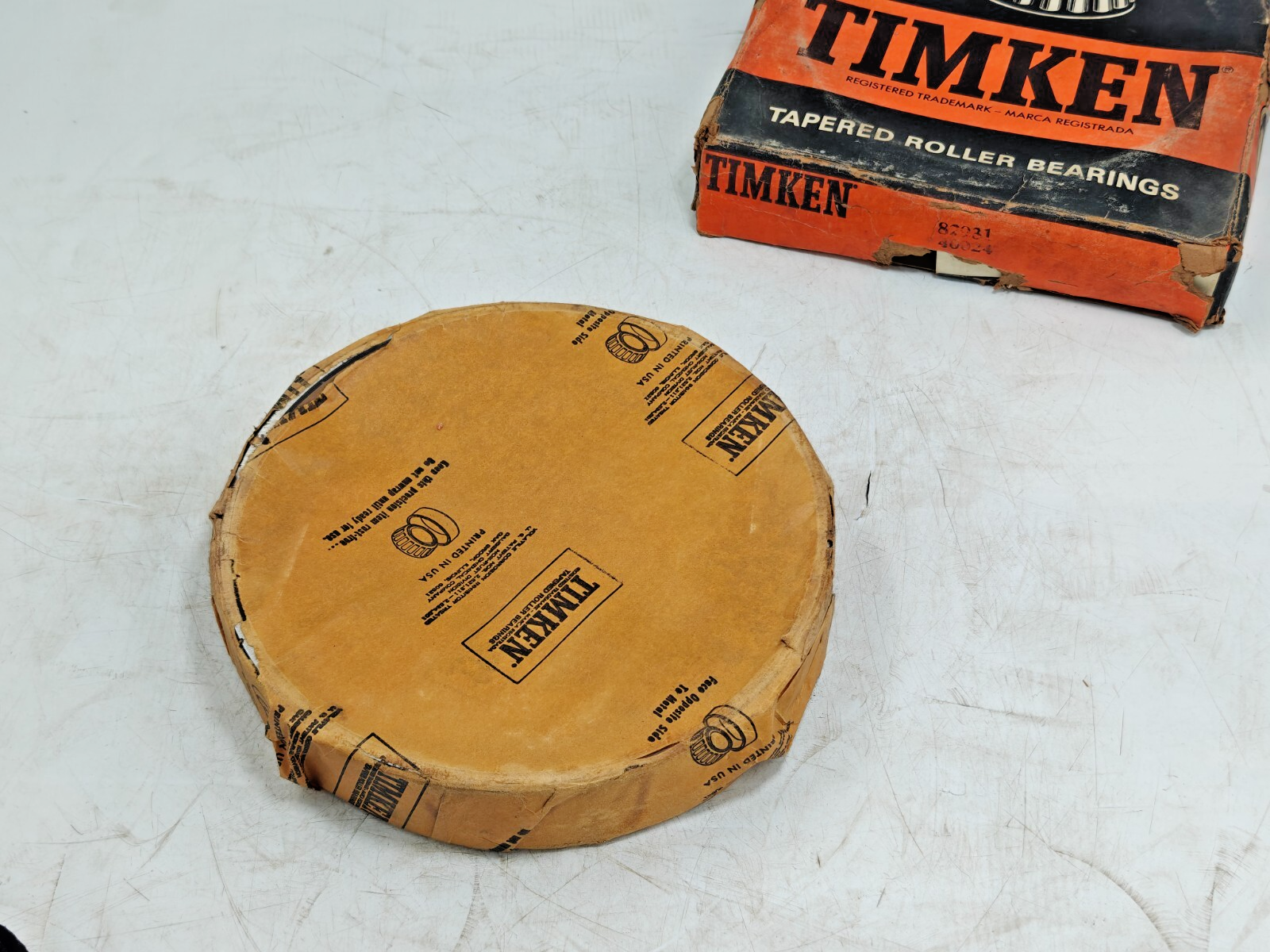

Timken 82550-82931 Tapered Roller Bearing Cone and Cup Set USA Made
$ 520.08
Description
82550/82931 Timken New Tapered Roller Bearing Cone&Cup 82550 - 82931 Timken USA This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. Unit of Measure Imperial Metric Both Specifications | Dimensions | Abutment and Fillet Dimensions | Basic Load Ratings | Factors Specifications Series 82000 Cone Part Number 82550 Cup Part Number 82931 Design Unit Inch Cage Material Stamped Steel Dimensions d - Bore 5 1/2 in 139.700 mm D - Cup Outer Diameter 9.3125 in 236.538 mm B - Cone Width 2.2300 in 56.642 mm C - Cup Width 1.7500 in 44.450 mm T - Bearing Width 2.2501 in 57.153 mm Abutment and Fillet Dimensions R - Cone Backface "To Clear" Radius 1 0.14 in 3.600 mm r - Cup Backface "To Clear" Radius 2 0.130 in 3.30 mm da - Cone Frontface Backing Diameter 6.06 in 154 mm db - Cone Backface Backing Diameter 6.34 in 161 mm Da - Cup Frontface Backing Diameter 8.94 in 226.10 mm Db - Cup Backface Backing Diameter 8.39 in 213.11 mm Ab - Cage-Cone Frontface Clearance 0.12 in 3 mm Aa - Cage-Cone Backface Clearance 0.15 in 3.8 mm a - Effective Center Location 3 -0.14 in -3.6 mm Basic Load Ratings C90 - Dynamic Radial Rating (90 million revolutions) 4 30000 lbf 134000 N C1 - Dynamic Radial Rating (1 million revolutions) 5 116000 lbf 515000 N C0 - Static Radial Rating 182000 lbf 810000 N C a90 - Dynamic Thrust Rating (90 million revolutions) 6 22700 lbf 101000 N Factors K - Factor 7 1.32 e - ISO Factor 8 0.44 Y - ISO Factor 9 1.36 G1 - Heat Generation Factor (Roller-Raceway) 460.5 G2 - Heat Generation Factor (Rib-Roller End) 81.1 Cg - Geometry Factor 10 0.141 1 These maximum fillet radii will be cleared by the bearing corners. 2 These maximum fillet radii will be cleared by the bearing corners. 3 Negative value indicates effective center inside cone backface. 4 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values. 5 Based on 1 x 10 6 revolutions L 10 life, for the ISO life calculation method. 6 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values for a single-row, C 90(2) is the two-row radial value. 7 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 8 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 9 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 10 Geometry constant for Lubrication Life Adjustment Factor a3l.
