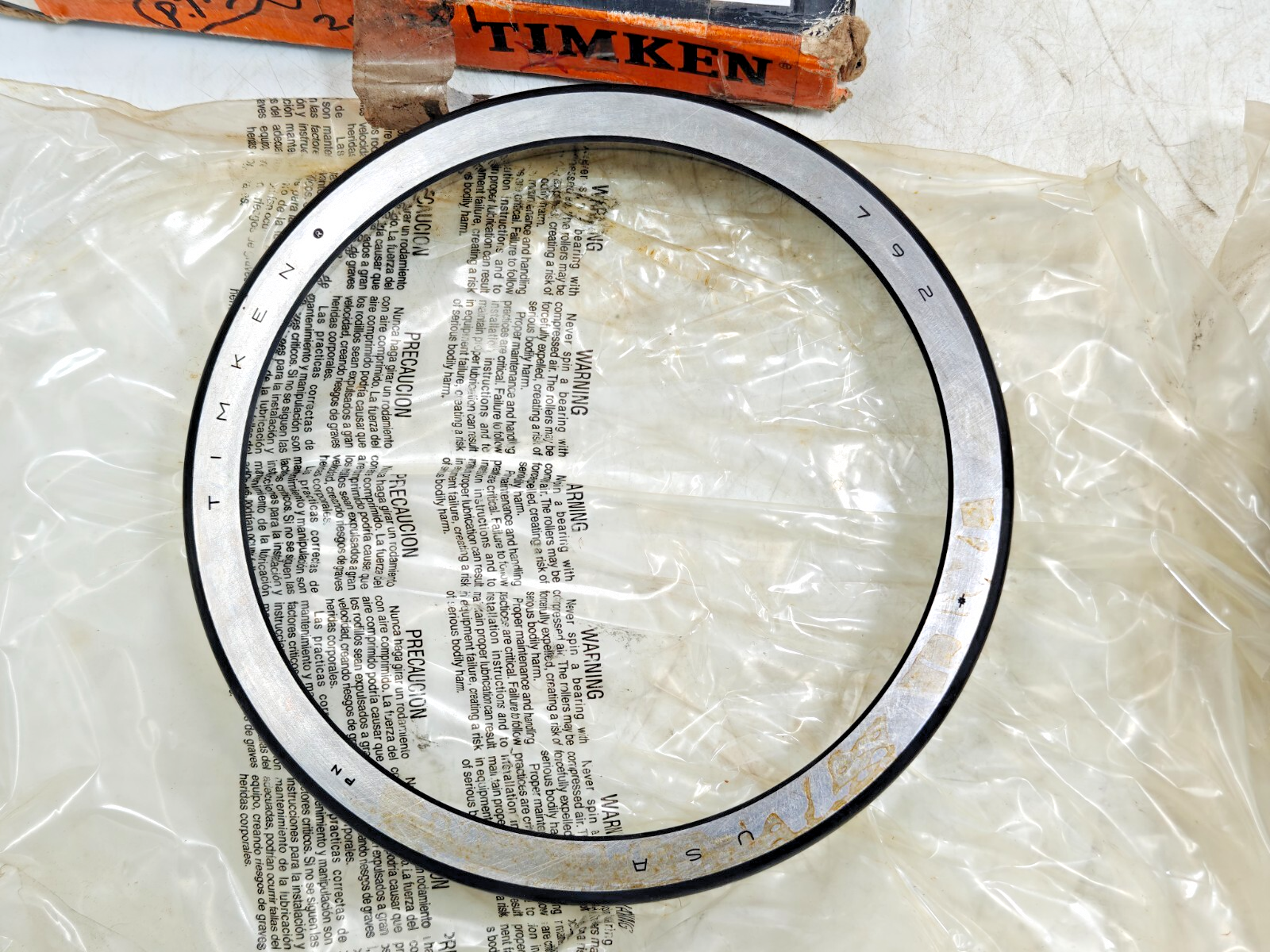

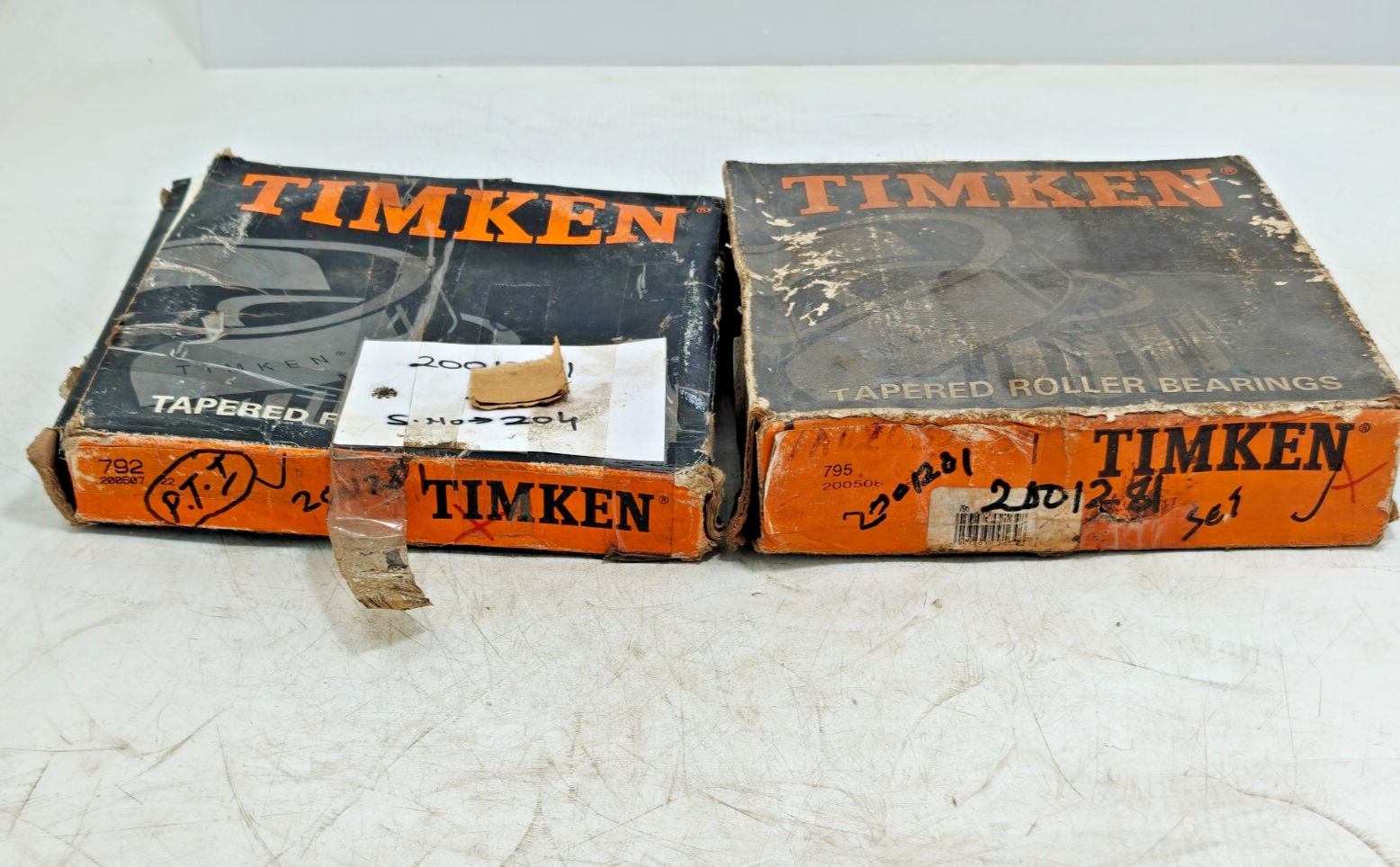

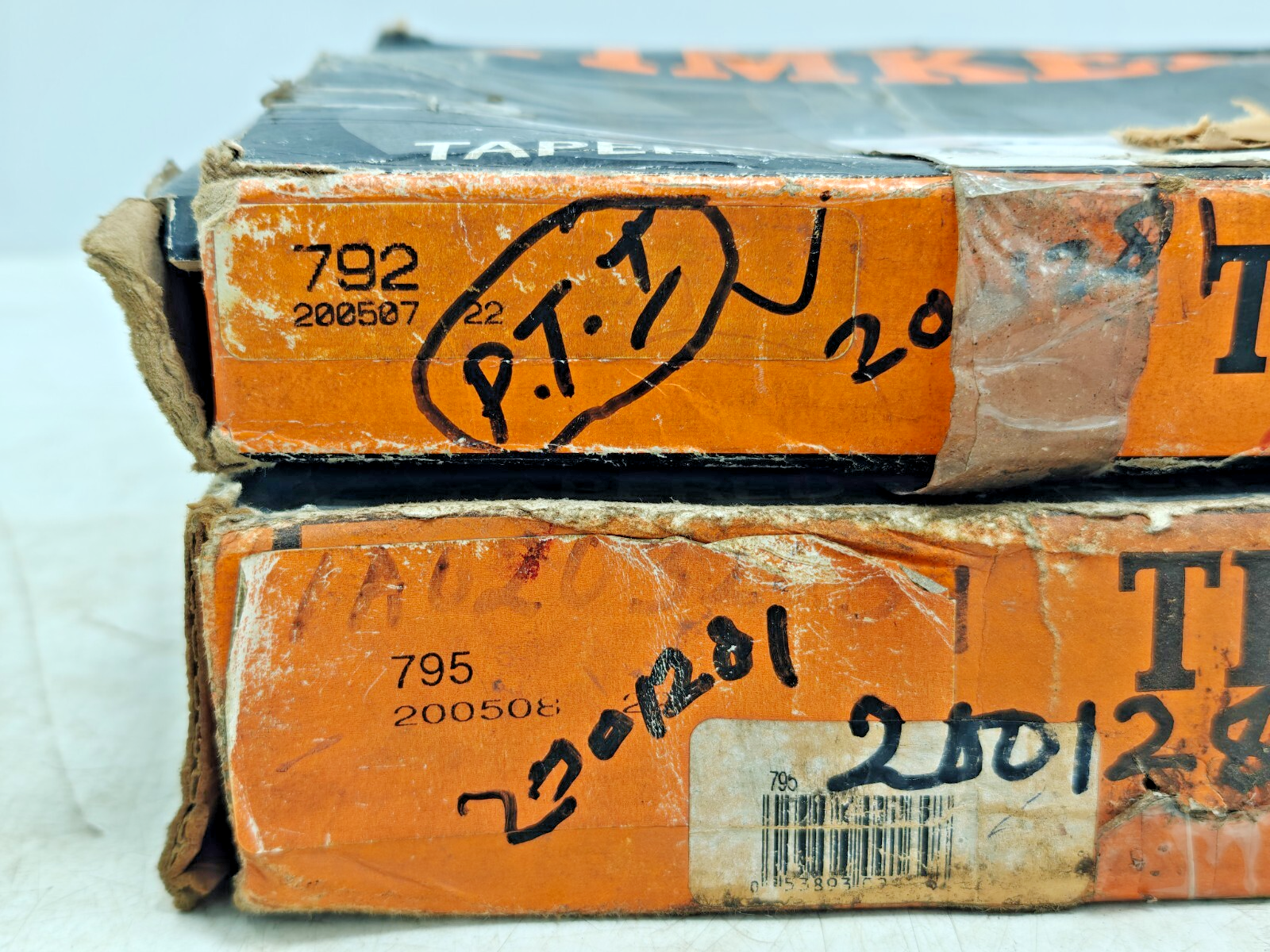

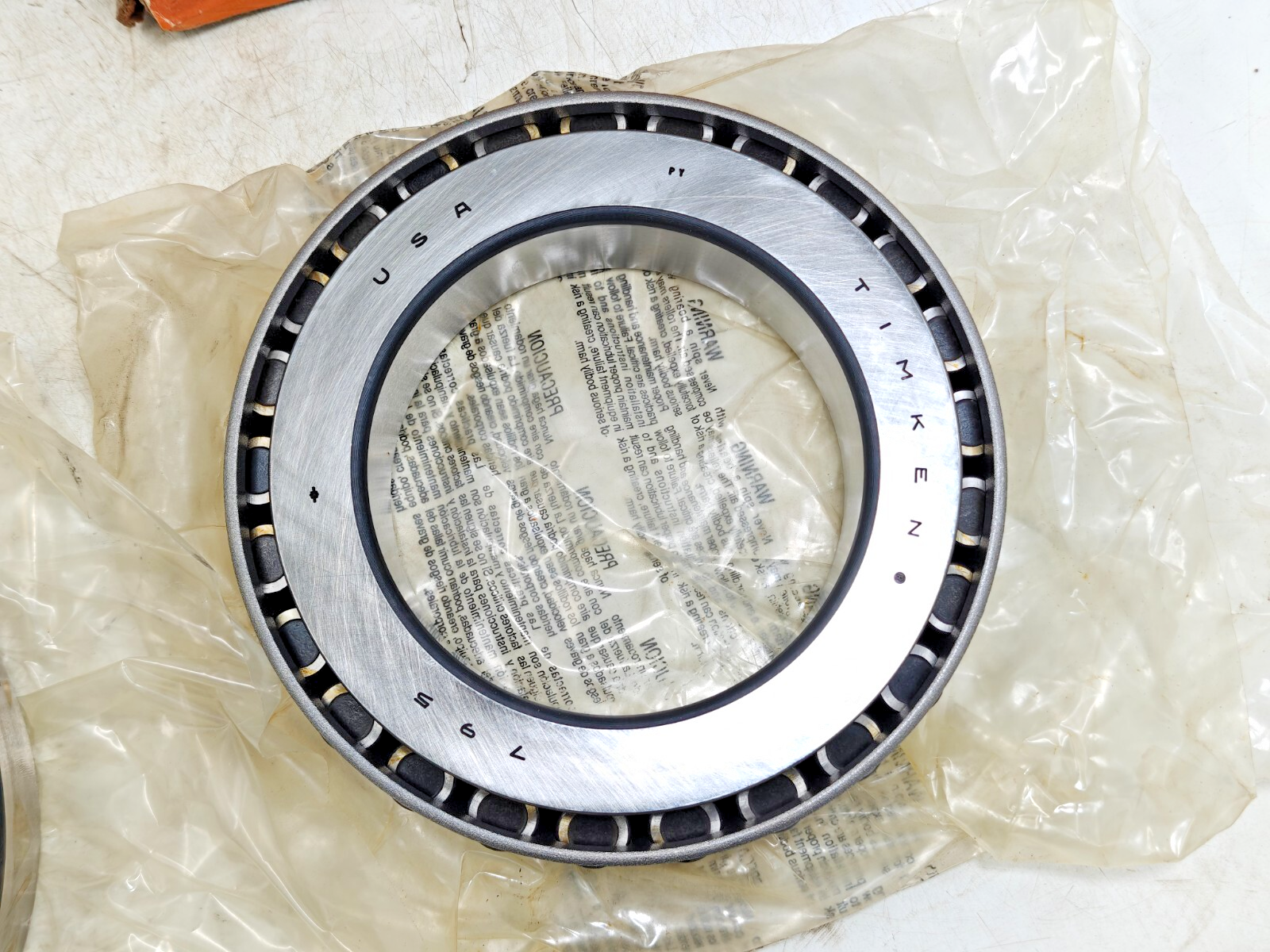

Timken 795-792 Tapered Roller Bearing Cone & Cup Set 4.75" ID USA Made
$ 237.13
Description
This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. Unit of Measure Imperial Metric Both Specifications | Dimensions | Abutment and Fillet Dimensions | Basic Load Ratings | Factors Specifications Series 795 Cone Part Number 795 Cup Part Number 792 Design Unit Inch Cage Material Stamped Steel Related Assembly Number(s) 795-90010 Dimensions d - Bore 4.7500 in 120.650 mm D - Cup Outer Diameter 8.1250 in 206.375 mm B - Cone Width 1.875 in 47.625 mm C - Cup Width 1.3750 in 34.925 mm T - Bearing Width 1.8750 in 47.625 mm Abutment and Fillet Dimensions R - Cone Backface "To Clear" Radius 1 0.13 in 3.300 mm r - Cup Backface "To Clear" Radius 2 0.130 in 3.30 mm da - Cone Frontface Backing Diameter 5.39 in 137 mm db - Cone Backface Backing Diameter 5.59 in 142 mm Da - Cup Frontface Backing Diameter 7.76 in 197.10 mm Db - Cup Backface Backing Diameter 7.32 in 185.93 mm Ab - Cage-Cone Frontface Clearance 0.16 in 4.1 mm Aa - Cage-Cone Backface Clearance 0.18 in 4.6 mm a - Effective Center Location 3 -0.07 in -1.8 mm Basic Load Ratings C90 - Dynamic Radial Rating (90 million revolutions) 4 22000 lbf 98000 N C1 - Dynamic Radial Rating (1 million revolutions) 5 85000 lbf 378000 N C0 - Static Radial Rating 133000 lbf 593000 N C a90 - Dynamic Thrust Rating (90 million revolutions) 6 17300 lbf 77000 N Factors K - Factor 7 1.27 e - ISO Factor 8 0.46 Y - ISO Factor 9 1.31 G1 - Heat Generation Factor (Roller-Raceway) 326.4 G2 - Heat Generation Factor (Rib-Roller End) 62 Cg - Geometry Factor 10 0.127 1 These maximum fillet radii will be cleared by the bearing corners. 2 These maximum fillet radii will be cleared by the bearing corners. 3 Negative value indicates effective center inside cone backface. 4 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values. 5 Based on 1 x 10 6 revolutions L 10 life, for the ISO life calculation method. 6 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values for a single-row, C 90(2) is the two-row radial value. 7 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 8 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 9 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 10 Geometry constant for Lubrication Life Adjustment Factor a3l.
Fast shipping (from India to UAE in 6 days only), Excellent seller (Fast responses and follow ups with shipped items), Love the item and looks exactly as described .. Thank you saved a lot of time and $$ !
Ordering part was fast and seamless. Seller was very active and kept me updated the whole time. Shipping was fast especially since it traveled a long distance. Will be ordering from them again.
Item was just as described, and suitable for my application. The price was fantastic and shipping from India to US in 5 days was unbelievable. Thank You!
Related products
Timken 48220D Double Cup Tapered Roller Bearing NEW USA
$ 229.68Timken Tapered Roller Bearing Cone & Cup Assembly 3.5 Inch Bore L217849 L217813

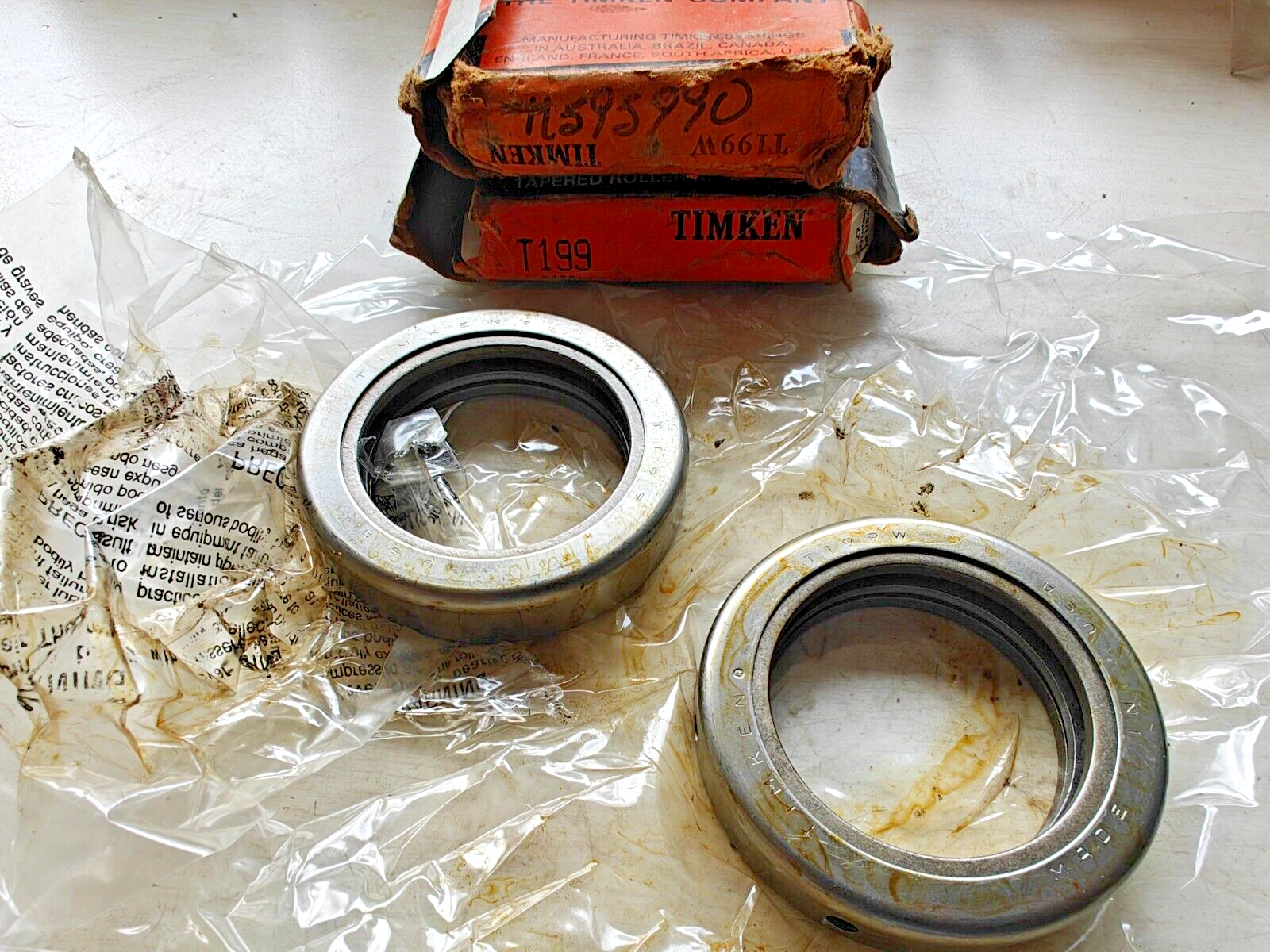

$ 184.28Timken T199 and T199W Tapered Thrust Roller Bearings Set of 2

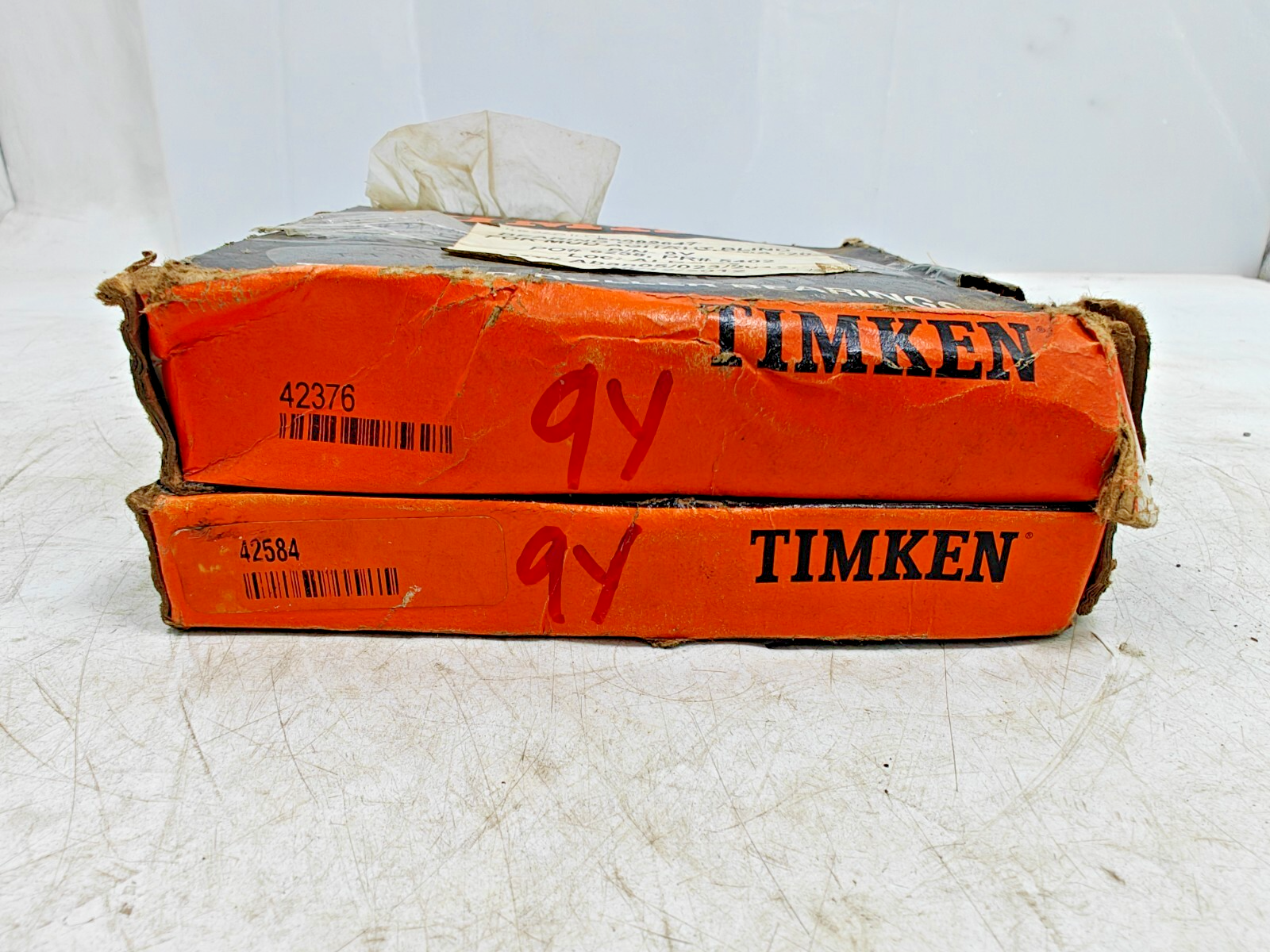

$ 34.32Timken 42376-42584 Tapered Roller Bearing Cup & Cone Set USA Made New
