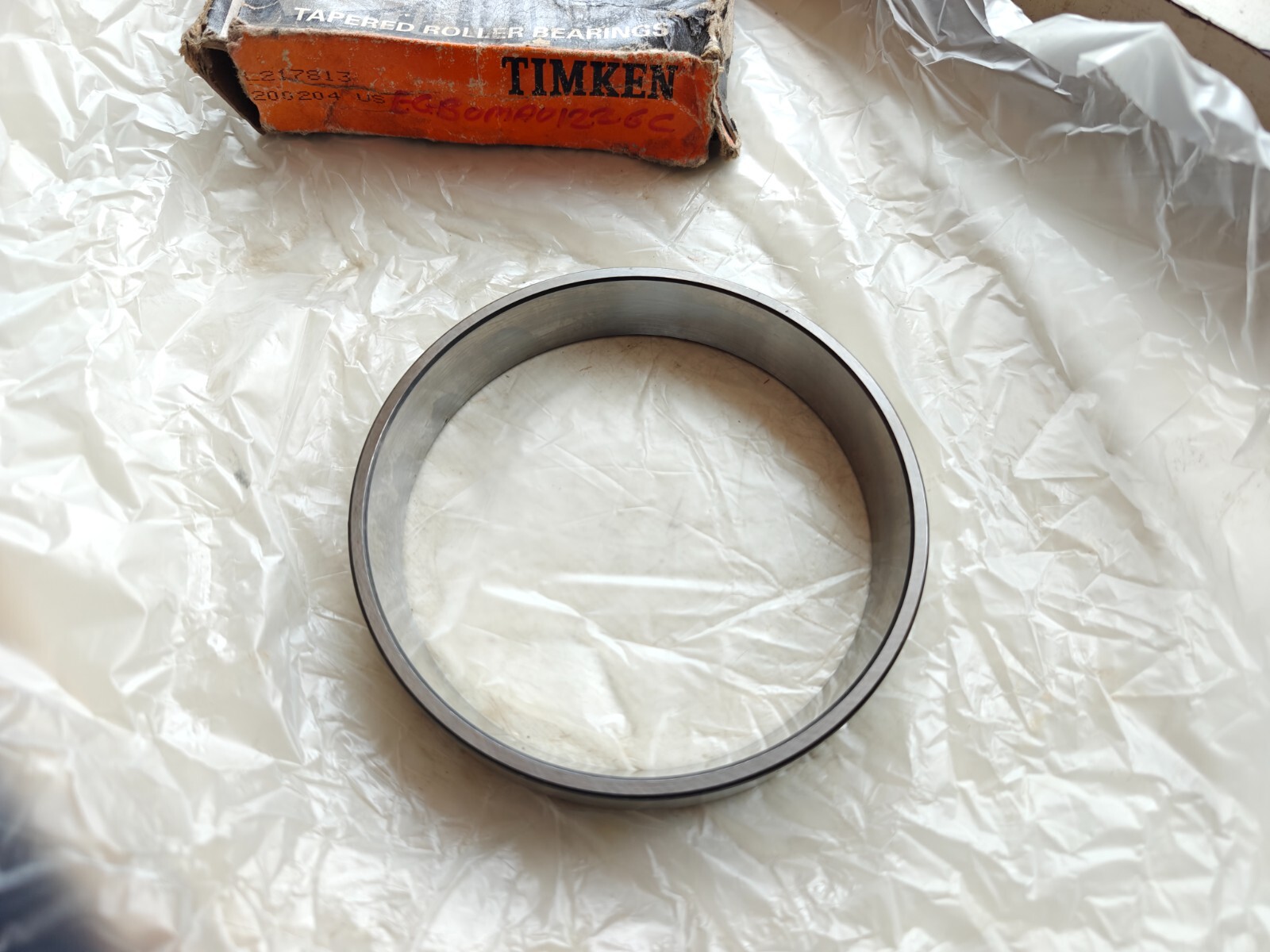

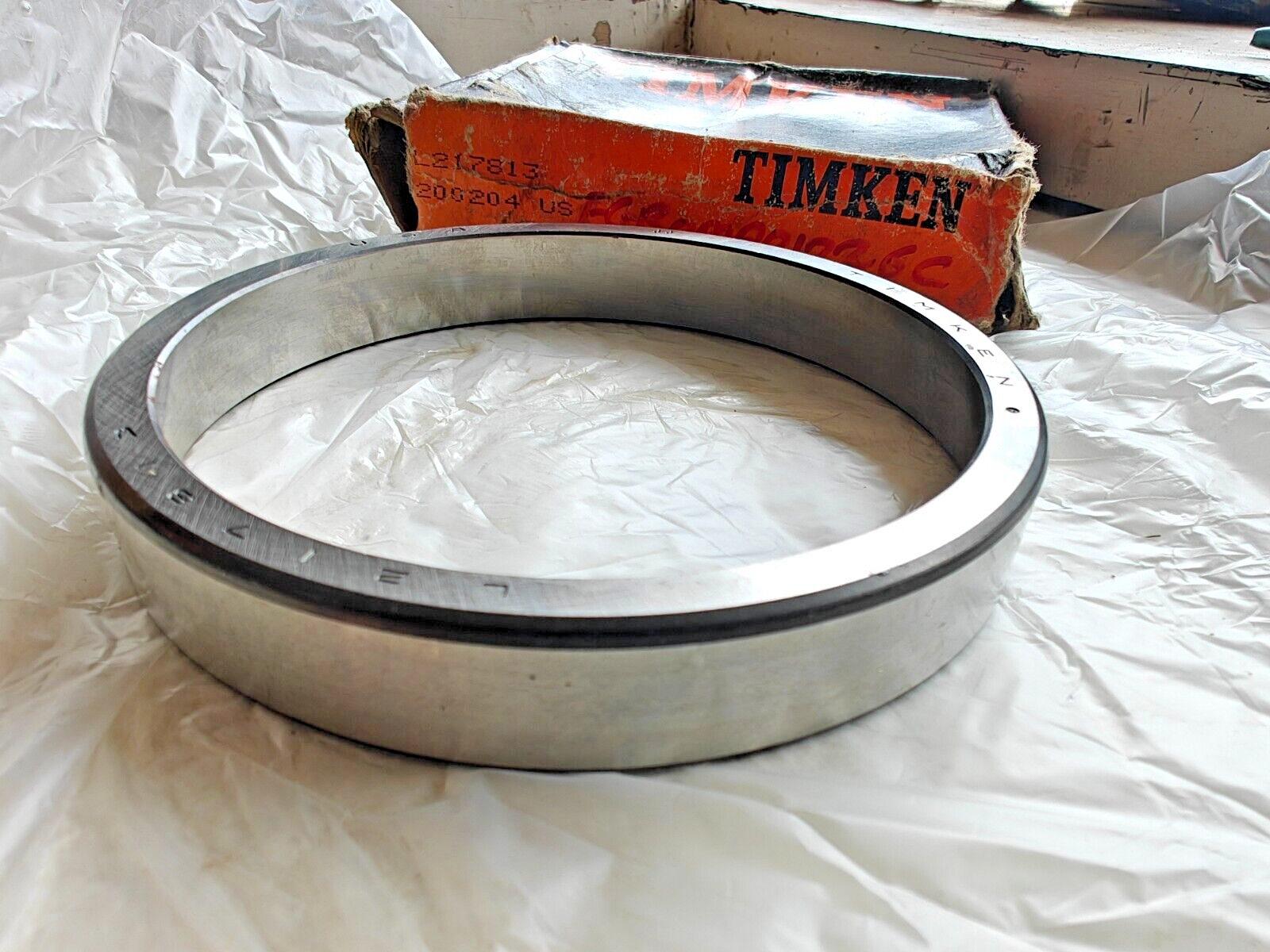

L217813 NEW TIMKEN Tapered Roller Bearing Cup ( ONLY OUTER )
$ 97.68
Description
L217813 NEW TIMKEN Tapered Roller Bearing CUP This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. Unit of Measure Imperial Metric Both Specifications | Dimensions | Abutment and Fillet Dimensions | Factors Specifications Series L217800 Cup Part Number L217813 Design Units Imperial Dimensions D - Cup Outer Diameter 5 in 127 mm C - Cup Width 0.75 in 19.05 mm Abutment and Fillet Dimensions r - Cup Backface "To Clear" Radius 1 0.06 in 1.52 mm Da - Cup Frontface Backing Diameter 4.80 in 121.90 mm Db - Cup Backface Backing Diameter 4.61 in 117.09 mm Factors e - ISO Factor 2 0.33 Y - ISO Factor 3 1.82 Cg - Geometry Factor 4 0.115 1 These maximum fillet radii will be cleared by the bearing corners. 2 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 4 Geometry constant for Lubrication Life Adjustment Factor a3l.
