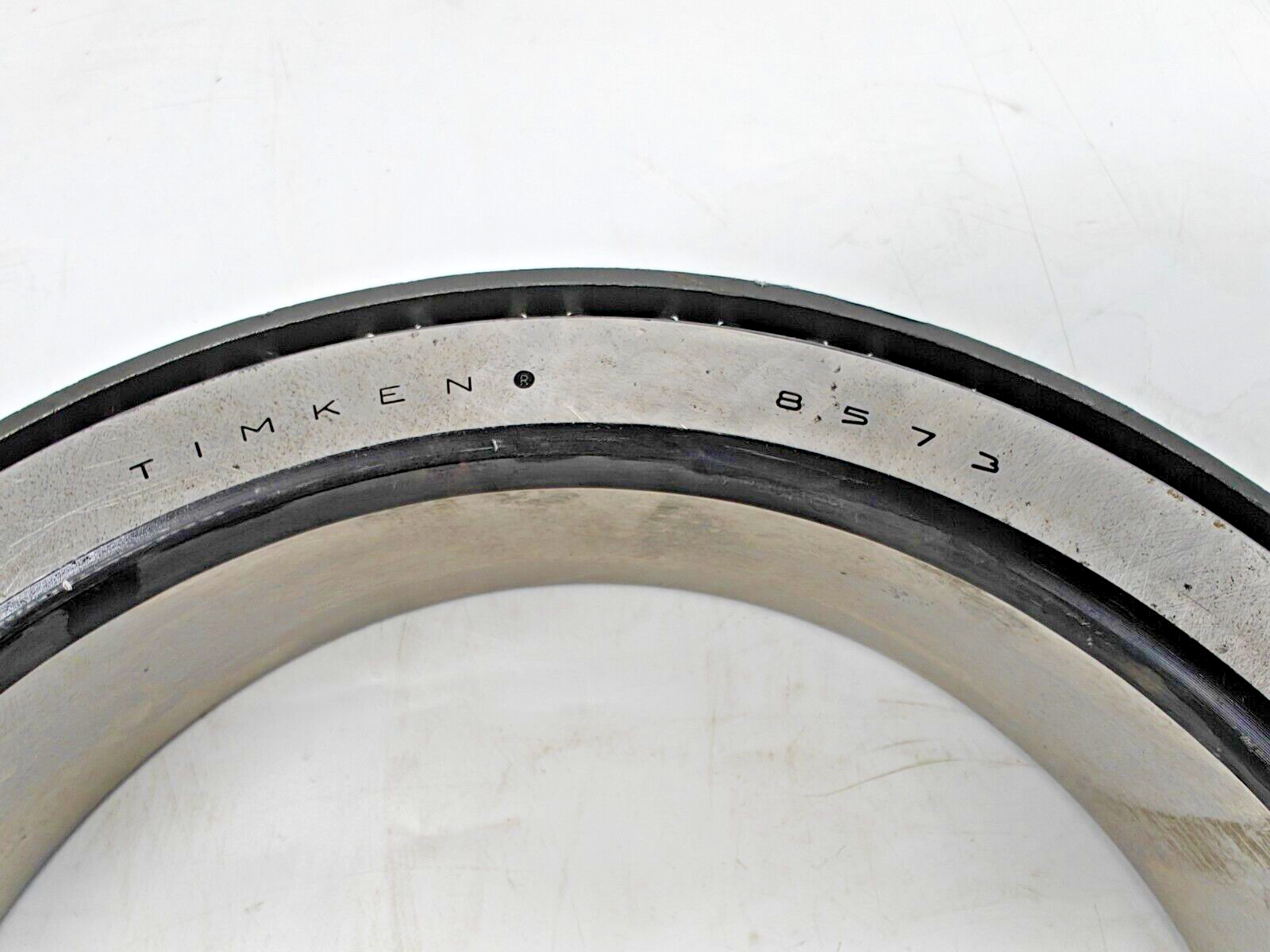

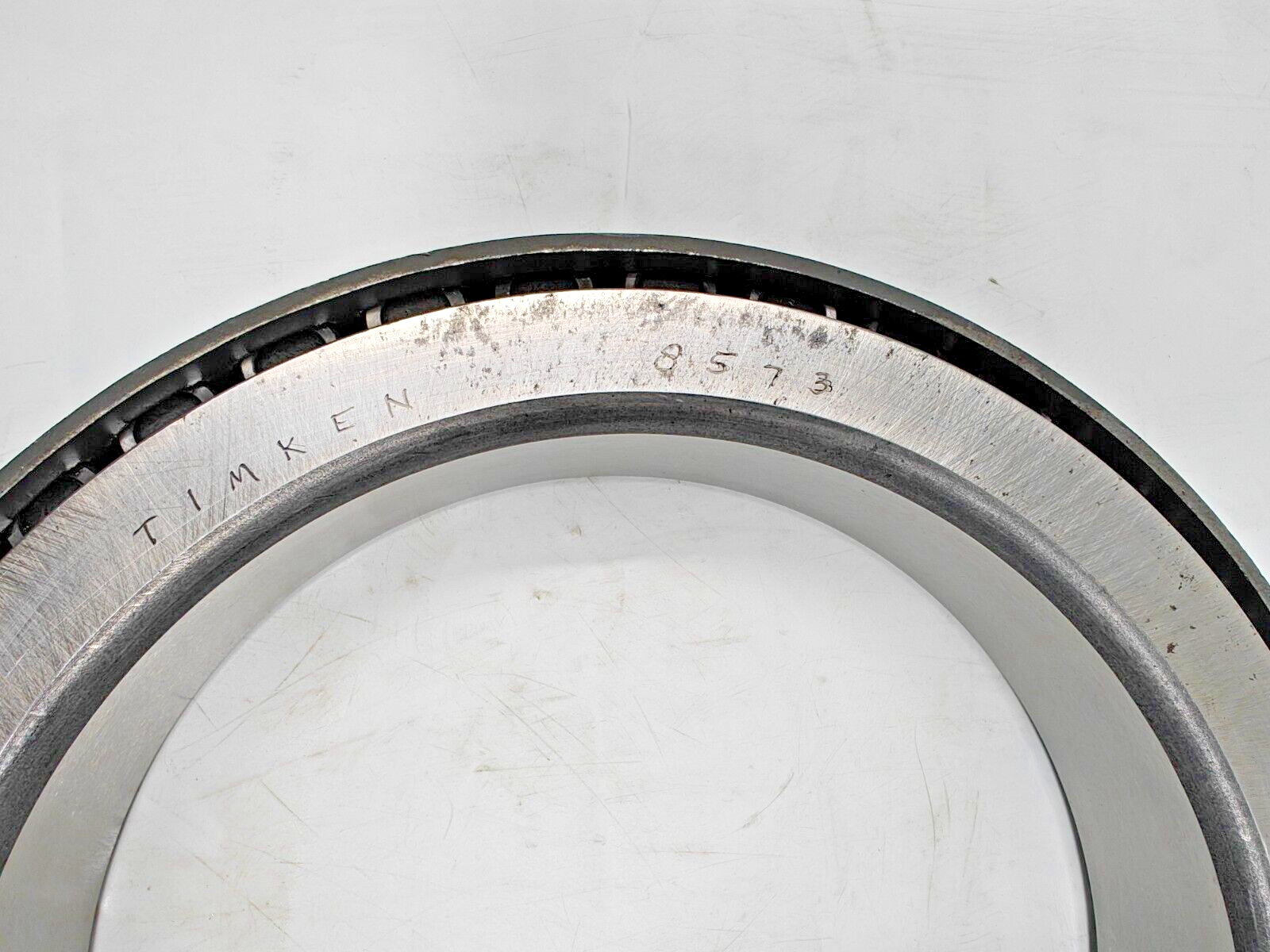

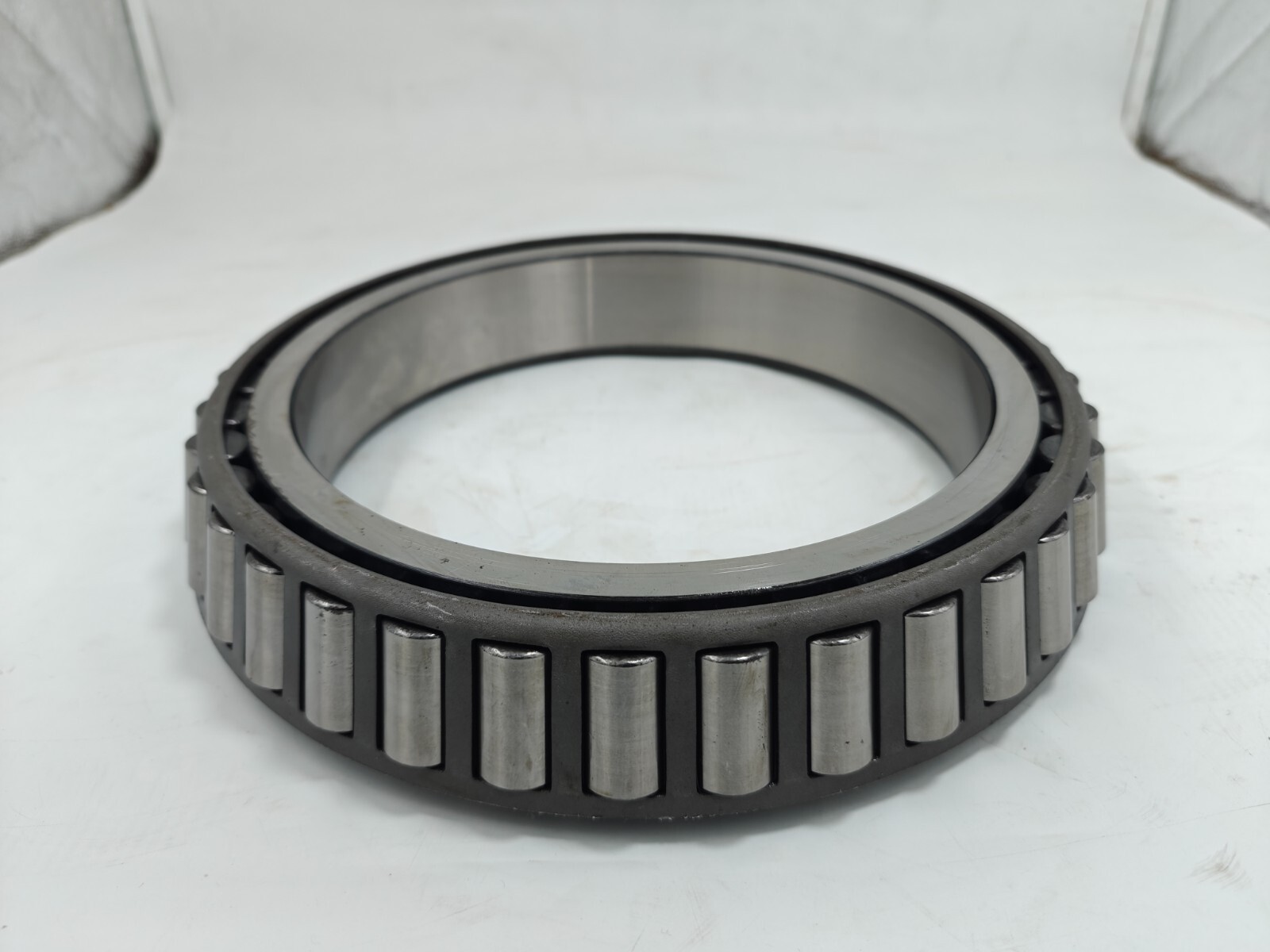

Timken 8573 Tapered Roller Bearing Cone Only 9 Inch Bore
$ 475.2
Description
8573 Timken NEW Tapered Roller Bearing CONE ONLY- 9" BORE - 8573 ONLY This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. Specifications | Dimensions | Abutment and Fillet Dimensions | Basic Load Ratings | Factors Specifications Series 8500 Cone Part Number 8573 Design Units Imperial Cage Type Stamped Steel C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) 1 219000 lbf 972000 N C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) 2 56700 lbf 252000 N Dimensions d - Cone Bore 9.0000 in 228.600 mm B - Cone Width 2.0625 in 52.388 mm Abutment and Fillet Dimensions R - Cone Backface "To Clear" Radius 3 0.25 in 6.4 mm da - Cone Frontface Backing Diameter 9.61 in 244 mm db - Cone Backface Backing Diameter 10.04 in 255 mm Ab - Cage-Cone Frontface Clearance 0.13 in 3.3 mm Aa - Cage-Cone Backface Clearance 0.24 in 6.1 mm a - Effective Center Location 4 0.3 in 7.6 mm Basic Load Ratings C90 - Dynamic Radial Rating (90 million revolutions) 5 32500 lbf 145000 N C1 - Dynamic Radial Rating (1 million revolutions) 6 126000 lbf 558000 N C0 - Static Radial Rating 240000 lbf 1070000 N C a90 - Dynamic Thrust Rating (90 million revolutions) 7 22700 lbf 101000 N Factors K - Factor 8 1.44 G1 - Heat Generation Factor (Roller-Raceway) 1050.5 G2 - Heat Generation Factor (Rib-Roller End) 172.4 Cg - Geometry Factor 9 0.140 1 Based on 1 x 10 6 revolutions L 10 life, for the ISO life calculation method. 2 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values for a single-row, C 90(2) is the two-row radial value. 3 These maximum fillet radii will be cleared by the bearing corners. 4 Negative value indicates effective center inside cone backface. 5 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values. 6 Based on 1 x 10 6 revolutions L 10 life, for the ISO life calculation method. 7 Based on 90 x 10 6 revolutions L 10 life, for The Timken Company life calculation method. C 90 and C a90 are radial and thrust values for a single-row, C 90(2) is the two-row radial value. 8 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use. 9 Geometry constant for Lubrication Life Adjustment Factor a3l.
